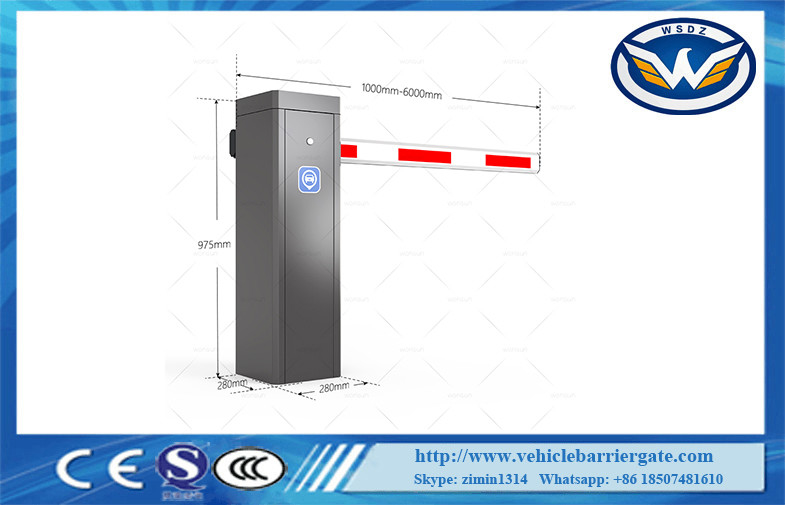

Non Spring Vehicle Barrier Gate 24V DC Brushless Motor Parking Boom Barrier
Place of Origin | shenzhen,China |
---|---|
Brand Name | WONSUN |
Certification | CE ,ISO |
Model Number | DZ-2228 |
Minimum Order Quantity | 1 piece |
Price | negotiated |
Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing.(Vehicle Barrier Gate DC 24V Brushless Barrier Gate 6M Telescopic arm ) |
Delivery Time | 3-7 work days |
Payment Terms | L/C, T/T |
Supply Ability | 5000 piece per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | No Spring | Rated Voltage: | BLDC24V |
---|---|---|---|
CE | YES | Running Speed | 2.5s-8s |
Working Temperature(motor) | -30℃~+70℃ | Product Name | New Design Non-spring 24V DC Brushless Motor Vehicle Barrier Gate Parking Boom Barrier Without Spring |
High Light | Non Spring Vehicle Barrier Gate,BLDC 24V Vehicle Barrier Gate,24V DC Parking Boom Barrier |
New Design Non-spring 24V DC Brushless Motor Vehicle Barrier Gate Parking Boom Barrier Without Spring
Vehicle Barrier Parameters:
Working temperature | -35~+65℃ |
Power supply | 24V DC |
Open/close speed | 2.5s to 6s |
Rated power | 140W |
Driving method | DC brushless motor |
Output torque | 59.6N.m |
Protection grade | IP54 |
Vehicle Barrier Gate Features:
1 The running speed can be adjusted from 2.5s to 8s
2 Can be quickly interchanged
3 No spring design
4. Anti-skid design, more safe.
Control board functions:
When setting the function, please press the menu button on the control panel. The Nixie tube displays
H00-00 or H00-other numbers. We correspond to the function parameter table code to enter the required
function parameter setting. For example, H00-00 is the UP ARM speed adjustment, and then press the
confirm button Enter the parameter setting, the number will be displayed on the digital tube, then press
the up or down key to set the required UP ARM speed number, and then press the confirm button to
complete the ARM-up speed setting.
Function setting parameter table:
Menu code |
Parameter Scale |
Parameter name | Default | Unit | Remark |
H00-00 | 25-95 | Open speed adjustment | 40 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
H00-01 | 25-95 | Close speed adjustment | 40 |
Corresponding PWM duty cycle 25%-95%, step size is 1 |
|
H00-02 | 5-40 | Open in place decelerate angle | 35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
H00-03 | 5-40 | Close in place decelerate angle | 35 |
The larger the angle value, the less likely it is to shake the arm when it is in place. |
|
H00-04 | 1-20 | Open accelerate adjustment | 1 | ms |
The smaller the number, the faster the speed |
H00-05 | 1-20 | Close accelerate adjustment | 8 | ms |
The smaller the number, the faster the speed |
Arm length and speed comparison table
Menu code Parameter
Arm length |
UP ARM | DOWN ARM | ||||
H00-00 | H00-02 | H00-04 | H00-01 | H00-03 | H00-05 | |
Medium Octagonal arm 3m 1.8s(without rubber) | 95 | 30 | 8 | 95 | 30 | 8 |
Medium Octagonal arm 3m1.8s(with rubber) | 95 | 25 | 8 | 95 | 25 | 8 |
Large Octagonal arm 4.5m 3s(without rubber) | 45 | 30 | 10 | 45 | 30 | 10 |
Large Octagonal arm 6m 5s(with rubber) | 35 | 40 | 10 | 35 | 40 | 10 |
3m round arm 1.8s | 95 | 25 | 8 | 95 | 25 | 8 |
(the parameter is based on the company’s arm)
Product Maintenance
1 Keep the barrier gate clean
2 Check the joints ever month in case of any loose parts.
3 Check the spring elasticity after the barrier gate running 3000 times.
4 Check the easily worn-out parts(like the spring,limit switch),every half year and renew it.
5 Remote control distance will be shortened or not work in case like big object screening,battery exhausting,extreme weathers.
