Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO
Model Number: DZ-290
Payment & Shipping Terms
Minimum Order Quantity: 2
Price: NEGOTIABLE
Packaging Details: Packed with foam inside and carton outside
Delivery Time: 7days
Payment Terms: EXW, FCA, CIF
Supply Ability: 3000 sets/month
Material: |
2.mm Cold Rolled Sheet |
Operation Speed: |
0.6s To 6s, 0.9s To 8s |
Working Temperature: |
-30℃~+65℃ |
Voltage: |
220V, 110V, DC24V |
Protection Level: |
IP54 |
Name: |
Vehicle Barrier Gate |
Material: |
2.mm Cold Rolled Sheet |
Operation Speed: |
0.6s To 6s, 0.9s To 8s |
Working Temperature: |
-30℃~+65℃ |
Voltage: |
220V, 110V, DC24V |
Protection Level: |
IP54 |
Name: |
Vehicle Barrier Gate |

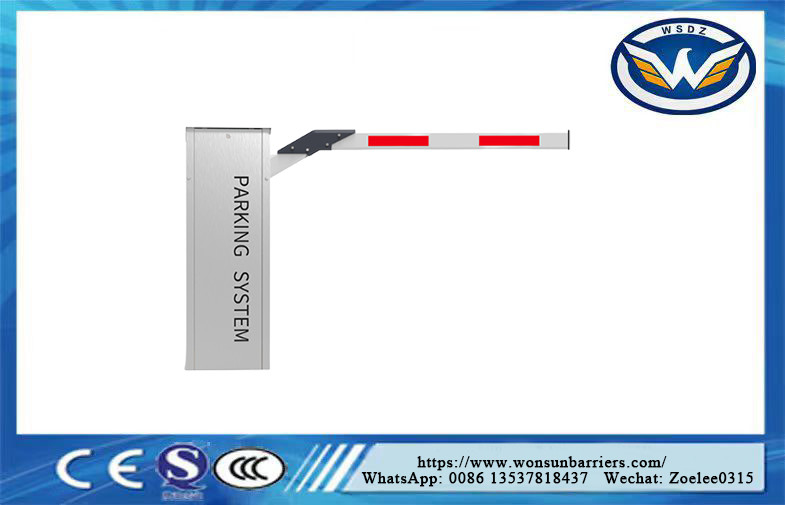

Wonusn has patented the servo series serve motor barrier gate. This motor combines a permanent-magnet synchrounous serve motor (PMSM motor) with high quality aluminum alloy press forming housing and well-designed gear reducer. It has rather impressive features including a high power density, low noise, small vibration, high efficiency and fast response as a special drive application.
Compared to the traditional asynchronous motor, this serve motor has many advantages such as a higher efficiency, higher power factor, lighter weight, lower temperature rise, and better power-saving. These advantages make the power grid quality factor higher, and make it easier to use that power grid capacity, which helps save investment costs.
The motor drive uses a serve motion control algorithm to ensure accurate positioning of opened and closed positions and motion curve tracks through an encoder. It can be widely used in places like expressway toll stations, bus stations, shopping malls, airports, hospitals, and other locations. This motor can greatly facilitate journeys while also avoiding potential safety hazards.
This gate has several adjustable features to enhance its safety and usability. Open and close speed can be adjusted, and the arm direction can be easily changed between left and right. In the event of a power outage, the arm can be opened and closed manually and will lock itself in place. It is wireless and comes with a photocell 10 port output, loop detector anti-collision 10 output, and open and close control input. Additionally, the gate can be connected to a 12V traffic light and support traffic light signal output, open and close limit signal output, counting (fleet) input RS485 communication input, and 24V battery input port. Delay close arm function ranging from 1 to 300 seconds is adjustable, as is the open and close arm speed deceleration. Further, one-key settings for the arm type and corresponding speed are available, as is arm auto reverse function (force adjustable). Finally, the gate has an anti-collision alarm function for added safety, though additional sensors and alarms are required.
This product is a DC24V power supply with a rated power of 200W, 400W. It comes with a 2nd generation DC servo motor and a no-load speed of 3000r/min. The Mean Time Between Failures (MTBF) of this product is 10 million. Additionally, it provides 3 pcs of spring for increased durability.
The input interface includes Photocell, Loop detector, parking system etc., while the output interface allows connection to motors and traffic lights. There is also optional communication guidance, and it includes RS485, TCP/IP. The remote distance is 100M in open, sunny conditions.
The Boom Arm is available in default Aluminum Alloy Straight/Telescopic Arm 80*45mm/100*45mm. The Housing Thickness is 2mm cold-roller sheet with powdercoated and the Housing size (L*W*H) is 335mm*335mm*925mm. The package measurements are 1030mm*380*450mm. The Net / Gross of Weight of the product is 45KG / 48KG. The open/close speed is 0.6S-6S/0.9S~8S adjustable, and the Maximum Boom Length is 6M straight arm, 4.5M two Fence Arm and 4M three Fence Arm.
The Protection Grade of the product is IP54, and the working temperature is between -30℃ to 70℃. The Relative Humidity should be ≤90%, and the Output Power is 56.8 N.m. In terms of material, the product is made of 304 Stainless Steel. Furthermore, warranty for the product is 3 years.
Welcome to WONSUN Vehicle Barrier Gate Customized Service!
WONSUN Vehicle Barrier Gate is a heavy-duty barrier specially designed for parking lot system. It is made of 2mm cold-rolled sheet and has a high protection level of IP54. It offers a wide range of operation speed from 0.6s to 6s, 0.9s to 8s, and can be powered by 220V, 110V or DC24V. With CE and ISO certification, it is guaranteed to be of high quality.
The basic package includes 2 sets of Vehicle Barrier Gate, and the price is negotiable. The product can be packed with foam inside and carton outside. We have a monthly supply ability of 3000 sets, and the delivery time is usually 7 days. Payment terms are EXW, FCA, and CIF.
If you have any inquiries, please feel free to contact us. Thank you for choosing WONSUN Vehicle Barrier Gate.
We offer various technical support and service options for our Vehicle Barrier Gates. Our team of trained professionals are available to assist you with any questions or concerns you may have.
We are committed to providing our customers with the best possible service and support. Contact us today to learn more about our Vehicle Barrier Gate technical support and service options.
