Product Details
Place of Origin: CHINA
Brand Name: WOUNSUN
Certification: CE ISO
Model Number: DZ-2125
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $425/set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union,
Supply Ability: 3000Set/Sets per month
Power Supply:: |
DC24V |
OEM/ODM: |
Supported |
Rated Power: |
250W |
Output Power: |
78.8N.M |
Driving Method: |
DC Brushless Motor |
Working Temparature: |
-35°C~+65°C |
Power Supply:: |
DC24V |
OEM/ODM: |
Supported |
Rated Power: |
250W |
Output Power: |
78.8N.M |
Driving Method: |
DC Brushless Motor |
Working Temparature: |
-35°C~+65°C |

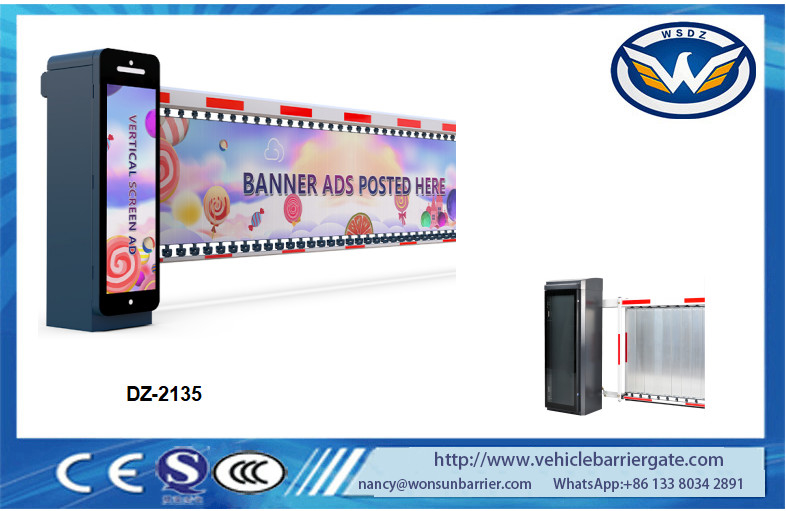

WONSUN Patented Advertising Car Park Barriers Gate DC24V Brushless Motor Shopping Mall Car Parking Lots
Product Description;
This product adopts the latest mold design technology, mold die-casting manufacturing technology, double-row five tension springs balance design, long spring life, good tensile flexibility. Brushless control speed regulation technology, no clutch design, more reliable quality, more convenient to use, the movement adopts two-stage worm gear transmission, curved crank arm and three connecting rod structure, UP&DOWN is fast and stable. Easy maintenance and long service life.
Technical parameters
| Model No. | DZ-2125 |
| Framework Material | Cold-roll sheet |
| Beam | Aluminum alloy |
| Net Weight | 45KG |
| Input Interface | Photo cell, loop detector, parking system,wire control |
| Input | 24V relay signal or Pulse Wide |
| Power Supply | DC24V |
| Motor Consumption | 250W |
| Working Temperature | -35°C to +75°C |
| Remote Control Distance | ≤100m |
| MCBF | 5 million time |
| Push Button | Support |
| Remote Control | Distance≤100m |
| Optional Accessories | Loop detector; photo cell |
| Boom Length | Max 4.5M |
| Opening/Close Time | 4sec-8sec |
| Output Power | 78.8 N.m |
Supply Ability: 3000 Set/Sets per Month
Features
1. The running speed can be adjusted from 4s to 8s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12 Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)( optional)
16 Arm open when power off ( add backup battery) (Optional)
17 Anti-collision alarm device( optional)
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
