Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working Temperature:: |
-40°to 75° |
Color:: |
Yellow, Orange,customized Optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
LED Light: |
YES |
Protection Grade: |
IP44 |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Working Temperature:: |
-40°to 75° |
Color:: |
Yellow, Orange,customized Optional |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
LED Light: |
YES |
Protection Grade: |
IP44 |

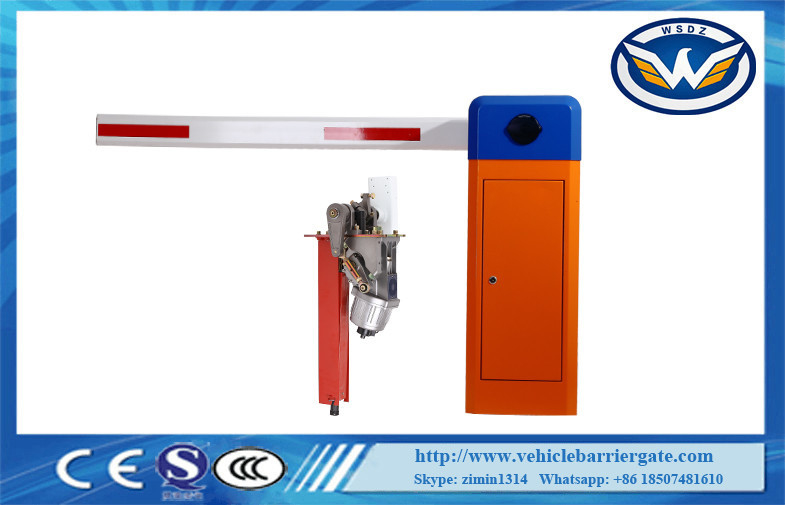

Straight Arm Road Electronic Barrier Gates with Traffic Light Interface
Quick Detail:
Name | Vehicle Barrier Gate | Application | Parking System |
Speed | 0.6/1/1.8/3/6 second | Feature | Manual release |
Rated Power | 120W | Certificate | CE, ISO, SGS |
Net Weight | 50KG | Voltage |
AC220V, AC110V |
Specifications:
Running time | 1sec | 3 sec | 6sec | 3 sec | 6 sec | 3 sec | 6sec | 6 sec | 6 sec |
Boom type | straight | 90 degree folding | 180 degree folding | 2 fencing | 3 fencing | ||||
Max boom length | 3m | 4.5m | 6m | 3m | 5m | 3m | 5m | 4.5m | 4m |
Boom dimension(w*h) | 40*80mm | 45*100mm | |||||||
Boom weight | 3kg | 4.5kg | 6kg | 6.5kg | 8kg | 9kg | 11kg | 7kg | 7.5kg |
Voltage | 220V±10%, 110V±10% | ||||||||
Frequency | 50/60 Hz | ||||||||
Motor voltage | 220V | ||||||||
power | 120W | ||||||||
Working temperature |
-35centigrade +75centigrade |
||||||||
Protection grade |
IP44 |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9)The mode of choice: to meet the different requirements, it can be set up as a two-way credit card or a one-way credit card and free pass.
10)Various control functions: external button, remote control, bar code, IC or ID, etc.
11)Remote control function: the RS485 can be connected to RS485 by computer and the RS485 remote control brake machine.
12)Automatic reset function: after the credit card has not passed in the specified time, the lock will return the lock to cancel the pass, time 1-60 seconds.
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Why to choose WONSUN Barrier Gate with rubber on boom?
1.WSTP-115B Barrier Gate adopts the latest mold casting design. Its machine core adopts connecting
rod structure mainly comprised with worm wheel, worm and crank arm. The barrier gate runs stably, and is conveniently maintained.
2. WSTP-115B Barrier Gate uses the FIRST generation motor. It is stable and has long service life performance, running 5 million times.
Its housing is made of galvanized steel with 2.0mm thickness, and painted, so that the barrier can be used in door and outdoor.
3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction.
The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles.
4. WONSUN has sub-companies to produce and process almost accessories. Besides standard producing, we offer OEM service in the meanwhile.
Application Of Vehicle Barrier Gate
1. Public Places: lobby entry, Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium, Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs,Swimming Hall, Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit Attendance.
