Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification

China Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification supplier
Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification supplier Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification supplier

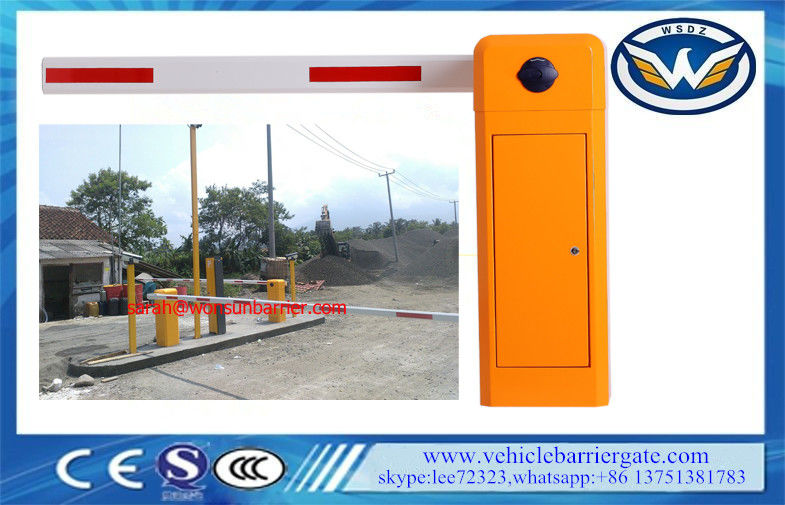

Large Image :  Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Adjustable Speed Vehicle Barrier Gate Motorized Systems CE ISO Certificate Product Brand: WONSUN
Rating Power: 120W Max Boom Length: 8 Meters
Payment: 1.) 30% T/T As Deposit In Advance And 70%T/T Before Loading Delivery Time: Delivery The Guardrail In10days After Receiving The Deposit

Adjustable Speed Vehicle Barrier Gate Motorized Systems CE ISO Certificate





DZ-115 Barrier Gate controller -- variable frequency type, is the enhanced barrier control which speed can be adjusted .Adopting full remote control mode, with the open /stop/close wire control interface ,counting interface, special encoder limit interface, loop detector interface, infrared interface, open limit,close limit output interface, communication interface.The remote control code is the learning code,and receiver module adopts external superheterodyne reception.





Functions



1. steady function, sensitive reaction, low noise

2.The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable.

3.high sensitive limit switch, pole can be instant turn on and off .accurate location.

4.control system adopts hi-tech digital chip technology.

5. the anti-collision function. Protecting the passenger

6. the inductive function ,with the digital vehicle detector

7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.





Optional Accessories:



1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
6. RS485 communication interface





Each barrier will include:



1 pcs Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers, 1 pc push button
1 pcs manual book






Specifications



Model

WSTP-115

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



Adjustable Speed Vehicle Access Barriers Motorized Systems CE ISO Certification
Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15







1.Q: How long will your barrier working?

A:barrier life span more than 10 years.



2.Q: What should we do if there have problems during using?

A: We have 2 years guarantee. Any barrier problems you have, Welcome email or call me! We will provide our best professional service for you.



3.Q: First time import, how can i believe that you would send product?

A: We are verified company by Everychina, to make transaction success .



4.Q:How to import your machines?

1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
