4sec 6mts Loop Detector Vehicle Access Barriers With Servo Control System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZ-138

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD300~400per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

Servo Control Vehicle Access Barriers

Name:
4sec 6mts Loop Detector Vehicle Barrier Gate Automatically Open
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Remote Control Distance:
<100m
MTBF:
>5000,000 Times
Warranty:
2 Years
Name:
4sec 6mts Loop Detector Vehicle Barrier Gate Automatically Open
Motor Rated Power:
50W,Max 100W
Voltage:
AC90V~AC264V,DC24V
Remote Control Distance:
<100m
MTBF:
>5000,000 Times
Warranty:
2 Years
Description
4sec 6mts Loop Detector Vehicle Access Barriers With Servo Control System

4sec 6mts Loop Detector Vehicle Barrier Gate Automatically Open





Data Sheet







Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Max boom length



2.5mts

3mts
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 54 54
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor No-load Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



Advanced Functions:



1)Advanced servo control system, high speed and precise.

2)Low-power servo motor, truly maintenance-free, high durability and energy saving.

3)Zero speed (0 rpm) constant torque output, no need worry about external force to lever the boom.

​4)No position sensor, each stop with the same accuracy. Pair using is fully synchronized.

​5)No anti-shock rubber, no impact, no bounce, free adjustment.

​6)No clutch device, boom will auto rise when power off (or unlock when power off, only use hand to lift the boom gently).

​7)No key-way design, no longer to worry about the gap between the key-way and the key, which is a hidden danger.

​8​)No brake design, no longer to worry about the troubles from the wear of the brake pads and a series of reliability problems.

​9)Highly reliable industrial-grade sports parts, completely beyond the industry quality.

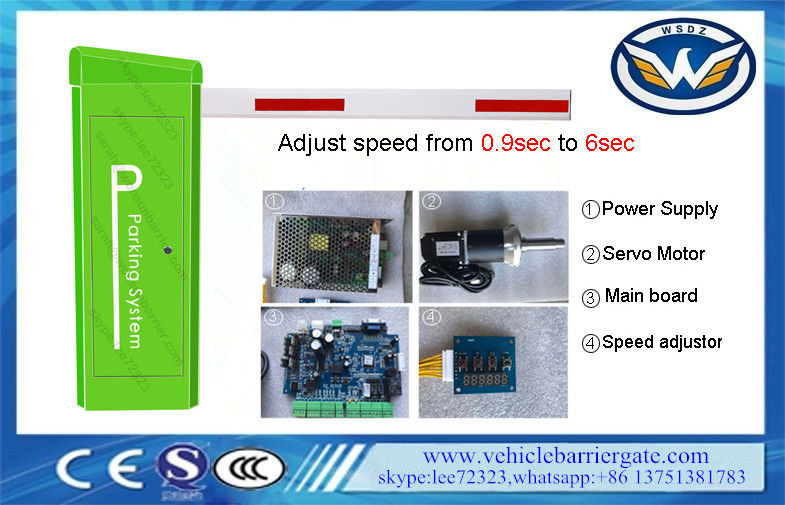

4sec 6mts Loop Detector Vehicle Access Barriers With Servo Control System 0

4sec 6mts Loop Detector Vehicle Access Barriers With Servo Control System 1



4sec 6mts Loop Detector Vehicle Access Barriers With Servo Control System 2



Packing list:



Title

Specification Qty Unit Note
Barrier gate boom   1 Piece
Machine case press board   2 piece For fixing case
Expansion bolt M16X150 4 set For fixing case
Supporting pole   1 piece Optional part
Expansion bolt M8 4 unit For fixing boom
Boom fixed screws M12*70 2 unit
Case Key   2 unit
Balance spring   1 unit For spare usage
Remote controller   2 unit
Machine control   1 unit Optional
Instruction   1 piece





RFQ:



1.How about the after-sales service, how long the warranty? How to warranty?



The core part of the retractable door is motor, we are committed the motor's warranty is 2 years, other electronic parts is 1 year, we are specialized in manufacturing electric retractable gate and we have the strength to solve all your problems (In fact,quality of our products is quite stable, there is almost no rework problems within a few years)



2.How about the terms of payment?



Paid 30% of the sales proceeds as the advance payment,and the balance paid by T/T or L/C.





3. First time import, how can i believe that you would send product?



A: We are verified company by Everychina, to make transaction success .



4.How to import your machines?



1. We will prepare barrier and shipment for you after payment;

2. We will give you bill of loading after barrier depart our shipping port;

3. Our shipping agent will contact you when barrier arrival ;

4. You can pick up barrier by bill of loading .
