Non Spring Traffic Barrier Gate

Place of Origin China
Brand Name WONSUN
Certification CE
Model Number WH-DZ-2228
Minimum Order Quantity 1pc
Price $250/1 set
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time 3-7 working days after received payment
Payment Terms T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability 3000 Sets/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Three Springs, Speed Adjustable, Arm Direction Change Left Or Right Material 1.5mm Thickness Galvanized Plate Sheet Or Cold Roll Steel Sheet
Arm Type Straight Arm, Fence Arm, Folding Arm Operation Time 2.5s-8s, Adjustable
Motor No-load Speed 1800r/min OEM/ODM Support
Boom Length Max 6 Meters Color White, Grey, Customized
Size 280*280*975mm(L*W*H) Rated Power 200W
High Light

Non spring Traffic Barrier Gate

,

Fast Speed Traffic Barrier Gate

,

Intelligent Traffic Barrier Gate CE

Leave a Message
Product Description

Intelligent Non-spring DC Brushless Motor Fast Speed Entry Exit Barrier Gate





Our Advantages:



1. OEM Brand, Logo, Label available, Factory Price
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support.
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.





HIGHTLIGHTS


Arm swing out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage on vehicle and machine core.
Max boom length: 6 Meter.  Arm Automatic Barrier Gate , Low Noise Parking Lot Gate Systems and vibration, high reliability, long life, smooth speed. Can be equipped with straight rod, folding, fence a variety of gear lever to meet different market needs. High-sensitivity arm auto reverse function( intensity can be adjusted).
Pure copper gear, precision hard tooth surface, small gap, good bite; high hardness, high toughness, durable wear.
Spoke lever with a special type of aluminum, can be affixed with two-color reflective film, can be clearly visible at night.
Arm direction quickly interchanged: interchanged accoding to different dirctions on construction site, reduce inventory and captial pressure.
Reserved for a variety of interfaces, external infrared, vehicle detectors and other accessories to meet the security needs.Relaxed to install the location, easy to use with the parking lot



Product Description

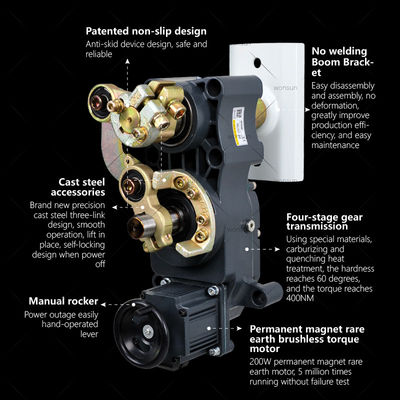

1. Safe and reliable, newprecision cast steel design of three-link anti-skid device.

2. Automatically lift arm when power off, any The angle does not drop arm.

3. Non-spring, no need to adjust the balance, suitable for long and short arm more convenient to use.

4. Non-spring chassis volume can be smaller.

5. Lower shipping costs.

6. Left and right interchange is convenient, saving inventory.

7. It is more convenient to change the armno need to calculate the number of springs.



Model Number Non-Spring Barrier Gate WH-DZ-2228
Rated Voltage 24V/100V/240V AC, 50/60HZ
Operation Time 2.5Sec. - 8Sec. adjustable
Arm Type Straight arm, fence arm, folding arm, Max Length 6 meters
Power Supply DC24V
Rated Power 200W
Size 280*280*975mm(L*W*H)
Material 1.5mm thickness Galvanized plate sheet or cold roll steel sheet
Remote Control Distance ≤50meters( open, sunny weather)
Motor No-load Speed 1800r/min
Working Temperature -35℃ to +65℃
MTBF 5 million times
MOQ 1 SET



Non Spring Traffic Barrier Gate 0

Non Spring Traffic Barrier Gate 1
Non Spring Traffic Barrier Gate 2

Non Spring Traffic Barrier Gate 3

Non Spring Traffic Barrier Gate 4

Non Spring Traffic Barrier Gate 5

Non Spring Traffic Barrier Gate 6

Non Spring Traffic Barrier Gate 7

Non Spring Traffic Barrier Gate 8

Non Spring Traffic Barrier Gate 9

Non Spring Traffic Barrier Gate 10

Non Spring Traffic Barrier Gate 11

Non Spring Traffic Barrier Gate 12


Application Range



This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Aparment Block ,etc








Packing &Shipping



We use strong carton case with air bubble filled inside to protect products and save your cost.



            Non Spring Traffic Barrier Gate 13






Quantity(sets) 1 - 50 51 - 100 101 - 200 >200
Lead time (days) 10 15 20 To be negotiated

FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.


Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY, generally it is 2-5 days if the goods are in stock, or it is 5-7 days for larger order

    Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc, or your requirements.


Q: How about your payment terms?
A: T/T or Western Union etc.



Q: Do you provide free samples ?

A: No, we don't provide free samples. The MOQ of our products is 1pc.
