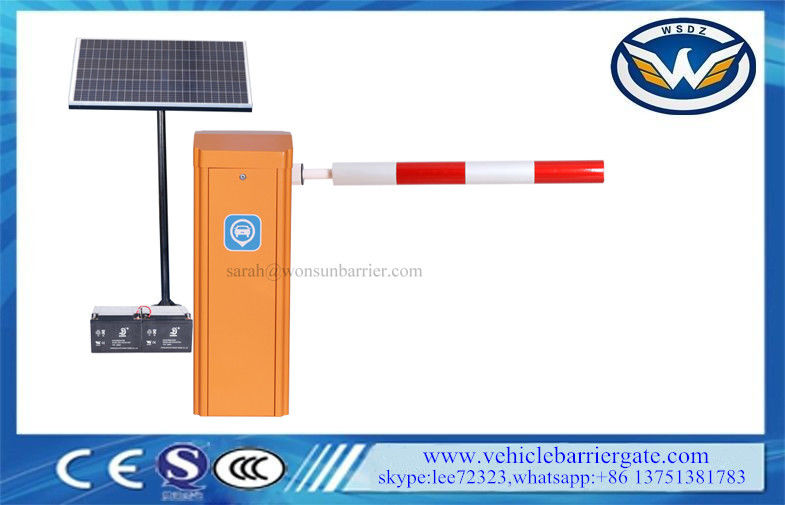

Large Image :  Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-890
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate

Description
Name: Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate Working Voltage: DC24V
Time For Up/Down: 0.9~6s Length Of Arm: 1m-6m
Color: Blue, Red,White Place Of Origin: Shenzhen,China

Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate





  1. This barrier adopts mechatronics design, compact structure, molded production, good consistency, high precision, fast production efficiency, high qualification rate, and short delivery time.
  2. Servo motor planetary transmission, fast speed, high efficiency, energy-saving, and environmental protection, long life.
  3. unique three-link design, more stable operation, easy to switch the length of the three tension spring balance rod,
  4. The lever can be manually lifted without the need for a clutch or a hand crank when the power is off. A self-locking anti-lifting lever device is provided for safe and reliable lifting.
  5. It adopts chip to drive, powerful functions, fast calculation speed, no contact start, no sparks or high temperature, solar energy and animal batteries can be used. There is no electric power construction site, train crossing, fire channel, mine, and petrol station. Occasion use.
  6. 200W24V servo motor, long-term operation, the motor does not generate heat, minus 50 degrees, and high temperature 85 degrees work normally.
  7. the left and right can be quickly interchanged, the inventory is reduced, the field direction is quickly changed, and the time and cost are saved.
  8. Horizontal motor design, no oil leakage, small size, suitable for assembling various chassis styles to reduce production costs.
  9. The 200W 24 low-voltage servo motor has low power consumption, large torque, adjustable speed from 0.9 seconds to 8 seconds, wide, long, and short poles and fence poles use the same model, which greatly reduces the efficiency of inventory and fast sales.




Functions

1, Open and close speed adjustable
2, Arm direction left and right can change easily.
3, When power is off, manually open and close the arm, and lock itself.
4, Wireless remote
5, Photocell IO port output.
6, Loop detector anti-collision IO output.
7, Open, and close control input.
8, 12V traffic light output.
9, Traffic light signal output.
10, Open and close limit signal output.
11, Counting(fleet) input RS485 communication input
12, 24V battery input port.
13, Delay close arm function(1-300 sec, adjustable)
14, Open and close arm speed deceleration function
15, One-key setting arm type with corresponding speed
16, Arm auto-reverse function(force adjustable)
17, Anti-collision alarm function(additional sensors and alarms are required)





Technical data

Working Temperature

-50℃~+85℃
Power Supply  24/100/240VAC, 50/60Hz
Open/close Speed  0.9sec to 6sec (adjustable)
Rated Power  200W
Driving Method  Servo motor
Humidity  <90%
Remote Control Distance  <100m(open, sunny weather)
Protection Grade  IP55
Motor No-load Speed  300r/min
Max Boom Length  1-6m







Error code:





Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate 0







Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate 1

Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate 2

Driveway Barrier Gates Solar Powered Boom Barriers New Servo DC Gate 3



Electrical installation

  1. The internal wiring of the machine has been completed when it leaves the factory, please do not change it, just connect the 220V power supply and the protective ground wire to work.
  2. Traffic light interface: 2A12V voltage traffic light use.
  3. Infrared anti-smashing interface: external infrared anti-radiation device, just connect the switch signal of the anti-radiation output.
  4. Ground sense interface: support external ground sense. When using an external ground sensor, you only need to connect the switch signal output by the ground sensor.
  5. Parking system interface wire control interface: connect the switch signal of the system to this interface to control the barrier.
  6. Starting limit and landing limit signal output: output COM/NO/NC switch signals to the system to inform the current state of the barrier.
  7. RS485 communication interface: PC software can be used to manage more than 15 barriers.
