Straight Boom Parking Barrier Gate

Straight Boom Parking Barrier Gate
Straight Boom Parking Barrier Gate

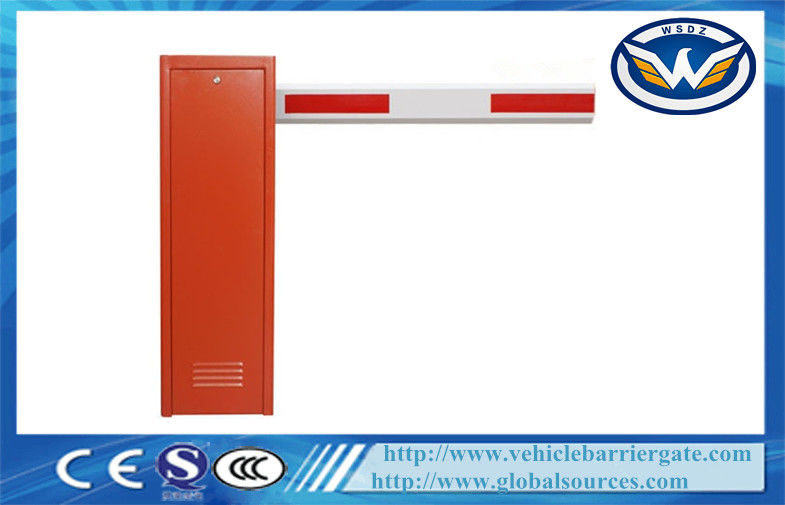

Large Image :  Straight Boom Parking Barrier Gate

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1201
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Straight Boom Parking Barrier Gate

Description
Housing Dimension: 320 * 250 * 944.5mm Housing Material: 2mm Cold Roller Steel Plate
Housing Color: Bule, Orange, White, Yellow Power Supply: AC 220V / 110V
Arm Material: Aluminum Alloy Arm Length: Max. 6mtrs
High Light:

security boom gate

,

electric boom barrier

Straight Boom Parking Lot Arm Parking Barrier Gate With  AC 220V AC 110V

Quick Detail:

Name: Parking barrier gate

Open/close time: 0.8 / 1.5 / 2 / 3 / 4 sec. optional

Max. 6m straight arm

Max. 4.5 m folding arm

Max. 4m fence arm




Functions & Features

1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)


Specifications



Parking Barrier Gate Data Sheet:
Parking Barrier gate housing material galvanized steel
Parking Barrier gate housing color red/blue/grey
Parking Barrier gate rail type straight/folding/fencing
Parking Barrier gate lifting time 6 seconds
Parking Barrier gate length max. 6 meters for straight type
Parking Barrier gate length max.4.5 meters for folding and fencing
Parking Barrier gate MCBF >5,000,000 times
Parking Barrier gate working temperature minus 10°C to 45 °C
Parking Barrier gate working environments indoor,outdoor
Parking Barrier gate relative humidity ≤95% coagulation free



With WONSUN, your job gets easier.

Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.

Communication with customers

1)     Q: Connected power and press open/close button but parking barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, parking barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but parking barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing, parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
