Vehicle Barrier Arm Gate , Security Boom Barriers For Parking Lot Management System

China Vehicle Barrier Arm Gate , Security Boom Barriers For Parking Lot Management System supplier

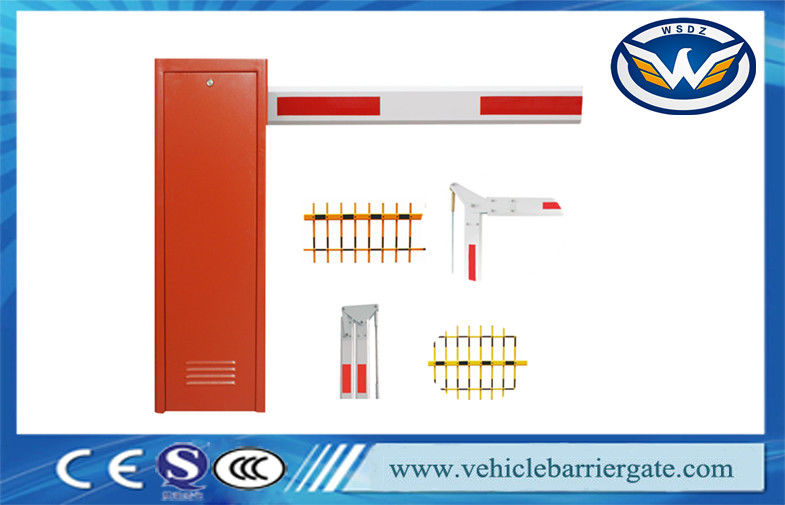

Large Image :  Vehicle Barrier Arm Gate , Security Boom Barriers For Parking Lot Management System

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: WSTP-120

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Product Name: Vehicle Barrier Arm Gate Security Boom Barriers For Parking Lot Management System Rating Voltage: AC220V Or 110V
Power Supply: 100W Opearation Time: 1.8s/3s/6s
Arm Type: Straight/fence/folding Arm Dimensions: 325*280*936mm
Net Weight: 56KGS Keywords: Car Parking Barriers

Vehicel Barrier Arm Gate Security Boom Barriers For Parking Lot Management System







Product Details:



Vehicle Barrier Arm Gate , Security Boom Barriers For Parking Lot Management System





Basic Info Of Barrier Gate:



Product Name Vehicle barrier arm gate boom barriers for parking lot management system
Voltage AC220V/110V,50/60HZ
Power Supply 100W
Operation Time 1.8s/3s/6s
Arm Type sraight arm,fence arm,folding arm
Arm length 1m to 6m
Remote Control Distance  ≥30m
Relative Humidity  ≥90%
Working Temperature -40℃~+75℃
Net Weight 56kgs
MCBF ≥5000000times





Barrier Gate  Features&Functions:



1.Manual release available if meet power failure

2.Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3.Die-casting aluminum alloy motor, precision and good for thermal radiating

4.Motor cooling fan, solving the problem of heat-protection

5.Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6.Reversing on obstacle

7.Traffic light interface

8.Wire control (switch signal) / Remote control

9.RS485 communication module (optional)

10.Support the Infrared Photocell for anti-bumping function (optional)

11.Support the Loop Detector for auto-closing & anti-bumping (optional)





Product Accessorirs:



No. Name Quantity
1 Car Parking Barriers 1
2 Barrier Arm 1
3 Arm Splint 1
4 Arm Fixing Bolts 4
5 Controller 1
6 Remote Controller 2
7 Hilti Bolt 4
8 Key 2
9 Specification 1





Optional Accessories:



1. Loop detector: single loop detector or dual channel loop detector
2. Photocell
3. Flash light
4. Boom rest/ arm holder
5. Control board
6. RS485 communication interface





Shipment&Payment:



1. Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1 set
3. Warranty : 1 year.
4. Package Informations: 1 per carton or wooden case





FAQ:



1) Connected power and press open/close button but barrier no action?

No. Reason Solution
1 Fuse blown Check fuse and power in controller
2 Battery of remote control powered off Change a new one
3 External protection circuit break or at protecting status Open the barrier door and click OPEN/CLOSE button on control box
4 Same frequency interference Check photocell and loop detector




2) Connected power and press open/close button, barrier will move but even when it is at right position, the motor still running and not stop?

No. Reason Solution
1 Limit switch Adjust the horizontal/vertical limit switch to correct position
2 Main controller failure Change a new one





3) Motor running but barrier arm no action?

No. Reason Solution
1 Barrier arm at 45° position where is hard to move Unlock clutch and manually rotate arm to horizontal or vertical position then try again
2 Tension of balancing spring not suitable Adjust spring exactly
3 Low working voltage Check the voltage and power






4) When opening/closing, barrier arm cannot reach right position (90° vertical & 180° horizontal)?

No. Reason Solution
1 Length adjustment of connecting rod not correct Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line
2 Nuts on the limit switch loose Tighten the nuts when arm at 90° vertical and 180° horizontal position








Our Sevice:



1 Year Standard Warranty, excellent after-sales service;

2. 24h*7d at your service to give you best support;

3. Detailed installation manual and wiring diagram to make everything be easy;

4. If you need, we can arrange our engineer to your place to give you guide and support.
