Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt

China Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt supplier
Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt supplier Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt supplier

Large Image :  Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Rated Power: 140W Rated Voltage: DC24V

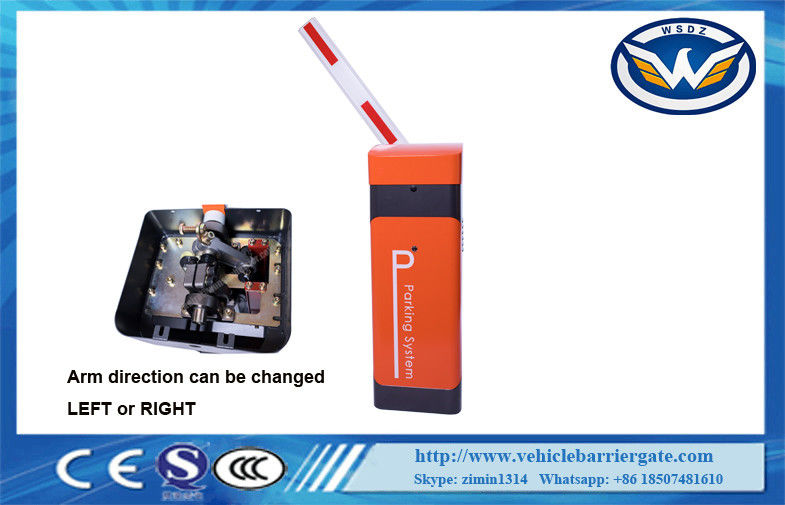

Advantages: Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit, Backup Battery Support Speed: 1.5sec-6sec Speed Adjustable
Working Temperature(motor): -35℃~+85℃ Product Name: Brushless DC24V Motor Automatic RFID Barrier Gate Price Boom Barrier Parking Lot Management System DC Motor Barier

Brushless DC24V Motor Automatic RFID Barrier Gate Price Boom Barrier Parking Lot Management
System DC Motor Barier


12V, 1.3Ah battery: 6sec with 6m arm can work 2.5 hours, 1100 times.
Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt

Technical parameters

1 Working temperature(motor): -35℃~+85℃
2 Rated voltage:DC24V
3 Running speed:1.5s-8s
4 Rated current:8.58A
5 Rated power:140W
6 No-load speed:1850rpm
7 Rated speed:1400rpm
8 Output Power:56.8N.m
9 Relative humidity:≤90%
10 Remote control distance:≤100M(in the open place)
11 IP Degree:IP44
12 Max length of arm:6M


Features

The running speed can be adjusted from 1.5s to 8s
Can be quickly interchanged
Open the barrier gate by motor wheel when power off ,automatically reset after power on
Curved crank arm three- link movement structure, the operation is stable
Wireless remote control control open/close
Auto reverse function(force adjustable)
Infrared photocells connector is available
Loop detector connector is available.
Well-integrated with car parking system equipment,with wire control(must be switch signal)
Connector for traffic light(AC220V,power less than 40W)
Offering dry contact signal for car parking system(COM,NC,NO)
Auto-delay when closing(adjustable)
RS485 or CAN network communication interface(no need to install module)
Counting interface
24V backup battery interface(Can be charged by using solar energy)



Electrical installation, wiring diagram

1 All the electrical connections are done before delivery and please do not change it randomly.The necessity
is to connect the AC220V power and grounding connection.
2 Traffic light connector:it can connect power no more than 40W.
3 Infrared photocells an-hit connector: connect the switch signal for receiver output.
4 Loop detector connectors:it supports both externally and internally loop detector(only one way can be chosen).
If external type is selected,just connect the switch signal for loop detector output.
If the internal type is selected,need connect the wire signal to vehicle detector wire interface.
5 Car parking system connectors: connect the system switch signal to this connector,then it can control the barrier gate operation.
6 Limit switch signal of up/down:with output COM,NO,NC,it monitoring the status of the barrier gate.
7 RS485 connector:after chosen the options RS485 module,it can manage MAX 15 pieces of barrier gates by PC software.



Arm length speed comparison table


Menu codeNumberMenu code nameDefaultsunitRemarks
H00-0025-95Open speed adjustment40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-0125-95Close speed adjustment40 Corresponding PWM duty cycle 25%-95%, step size is 1
H00-025-40Open in place decelerate angle35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-035-40Close in place decelerate angle35 The larger the angle value, the less likely it is to shake the arm when it is in place.
H00-041-20Open accelerate adjustment10msThe smaller the number, the faster the speed
H00-051-20Close accelerate adjustment10msThe smaller the number, the faster the speed
H00-061-30Open in place angle2degreestep size is 1
H00-071-30Open in place angle1degreestep size is 1
H00-087-13Auto reverse force adjustment10Astep size is 1
H00-090-90Delay closing adjustment0Secstep size is 100;0 is not closing automatically,,Other value will be closing automatically;This parameter is for when there is no loop detector signals and non-automatic operation occasions
H00-1010-50Self-check speed adjustment30 Corresponding PWM duty cycle 10%-50%, step size is 1
H00-110-2Self-check mode0 0:no operate automatically;1:operate automatically,remove after power off;2:operate automatically,Power failure memory
H00-120-5Self-lock force adjustment(Invalid)3
H00-131-20Motor deceleration time when paused5 The larger the setting, the longer the pause time will take
H00-140-1The default direction of operation after self-test0 0:Closing,1:opening
H00-151-10Number of pole pairs(Invalid)4 Only used to correctly display motor speed values
H00-161-32RS485communication address1 Up to 32 slaves can be connected
H00-170-2RS485communication rate0 0:9600,1:19200,2:38400;Change the parameter and will be valid after power on again.
H00-180-1If self-test after power is on1 0:no self-test after power on,1:self-test after power on
H00-190-3Manual self-test adjustment2 0:Manually invalid,1:Keyboard SET button,2:remote control valid,3,Keyboard SET button and remote control both valid
H00-200-15Monitoring parameter setting index7 7,operation times(ms):0~9000
8,Cumulative operation times:0`99999999
9,automatically operation times :0~99999999
10,Collision times:0~99999999
11,Closing in place times:0~99999999
12,Power-on time (minutes):0~99999999
13,power-on times:0~99999999
14,Input port status:Binary display
15,Error code:0~7
H00-210-3reset0 1:rest adjustment
H00-220-1LED output mode0 0:Do not flash alternately during operation;1:Allow flashing



Learning type remote control

The remote control using special IC learning code remote controller, 418MHz wireless frequency, strong
anti-interference, long remote control distance, that can up to 100meters in good weather, use easily and
durable. The receiver of learning code remote control can store 16 different remote control codes, and
support unlimited number of same code remote control. The external receiver learned the remote control
within 5 seconds when power on,press the open/close key at the same time to complete the learning,
and reset to continue learn when not complete. If repeat the learning, open the external receiver shell,
there is a white button on circuit board, hold down 15 seconds to delete the remote control code, continue
to learn or press the white button to learn.

 Remote Control Car Parking Management System Brushless DC 24V Motor 140 Watt
Wonsun is a professional manufaturer for barrier gate, boom barrier, sliding gate motor. If any interest,
please contact me freely.
