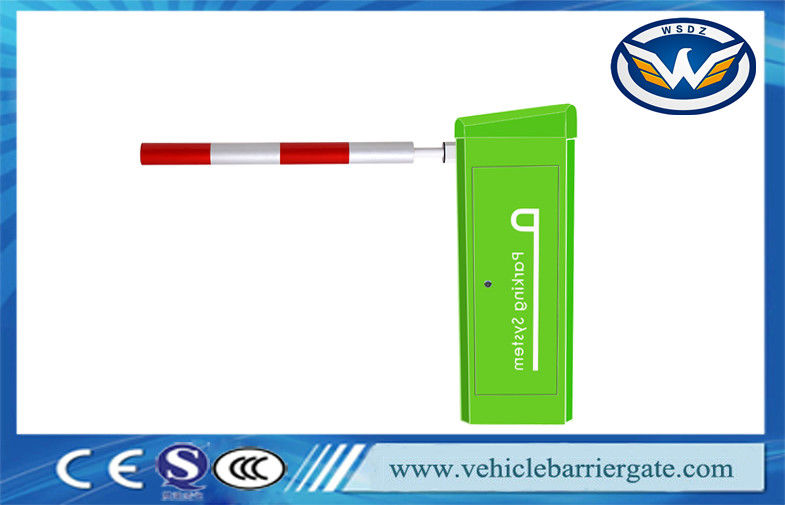

Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control

Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control
Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control

Large Image :  Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control

Product Details:
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-138
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: $629/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month

Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control

Description
Features: Heavy Duty, Manual Release, Swing Out, Remote Control Name: Servo Motor Automatic Vehicle Barrier Gate Opener With Remote Control DZ-138
Color: Yellow,Orange,Green,Gray Or Customized Boom: Straight,folding,fencing ,flexible
Motor: Servo Motor Power Supply: 24/100/240VAC,50/60Hz
Protect Level: IP65 Application: Parking Lots, Toll System, Airport, Hotel, Residential
Speeds: 0.6s,0.8s,1s,1.8s,3s,6s OEM Service: Support
High Light:

vehicle access control barriers

,

security barriers and gates

Hot 24VDC Brushless Servo Motor Car Parking Lot Barrier with Encoder Limit



Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 0



Quick details:


The DZ-138 servo barrier gate series, which manufactured by our company, adopts international advanced technology, mechanical and electrical integrated design. Planet gear drive, high torque, un-blocked, oil tight, no noise, automatically Self-locked when power off, with 10 million operation times. The motor uses the DC 24V permanent magnet synchronous motor (PMSM motor), apply to the global voltage, high-speed operation and rapid response, frequent positive &negative operation in 24 hours does not heat, speed time can be adjusted based on the vehicle flow and arm length, safe and reliable. The series servo barrier gate is free-debugging and free-maintenance, achieve the fully automation and intelligentize, and the barrier arm open/close is fast and smooth, easy to use and safe.



DZ controller specifications:



DZ Controller
Voltage(±10%) 100-240 volt 100-240 volt
Frequency(Hz) 50-60 50-60
Max Power Consumption(watt) 8 8
Fuse F5AH F5AH
Control Voltage 24V DC/max.3000mA 24V DC/max.3000mA
Input-end Number 8 8
Open Collector Output Number 2 2
Zero Level Reversal Relay Number 3 3
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Protection System(IP) 20 20
Weight(gram) 450gram 450gram
Dimension mm(L-W-H) 158*126*55



Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 1Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 2Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 3



DZ-138 barrier gate specifications:



DZ-138 barrier gate V06T V09T
Max Boom Length and Diameter 2500mm, 75mm 3000mm, 75mm
Open/Close Time 0.6sec 0.9sec,2.5sec,4.5sec
Power Supply 24/100/240VAC,50/60Hz 24/100/240VAC,50/60Hz
Power Consumption max.150W 100w
Machine Case Varnished 2.0mm steel plate Varnished 2.0mm steel plate
Machine Case Size(W*D*H) 342*312*959mm 342*312*959mm
Net Weight 43kg 42.6kg
Operating Temperature Range℃ -45℃~+85℃ -45℃~+85℃
Driving Method Servo motor Servo motor
Protection System(IP) 65 65
Insulation Class F F
Relative Humidity ≤90% ≤90%
Motor Speed 3000r/min 3000r/min
Remote Control Distance ≤100m (open, sunny weather) ≤100m (open, sunny weather)
Output Torque 1.2N.M*140=160N.M 0.86N.M*140=120N.M
Running Noise< 45dB 45dB
Surface Treatment Outdoor metal powder electrostatic spraying Outdoor metal powder electrostatic spraying



Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 4

Vehicle Barrier Gate Advantages:

Functions and Features

1. Gate automatically open when power off, no clutch design, no need human intervention. When power on,

gate automatically reset, restore to the gate closing state, truly unattended, fire safety standards. If special

requirement, manual operation is required when power off, operating arm open and close manually also can

be realized by setting up control board DIP switch, which ensure that the system can be used at any time.

2. The use of Single Compression Balance Spring device, good regulation, no noise, indefatigable, not easy to break, safe and reliable.

3. A variety of input and output modes can be selected, normally open normally closed are optional.

4. Arm opening angle can be adjusted from 60 to 90 degrees, 10 degrees resolution, suitable for eaves prominent place to install.

5. Closing speed can be adjusted.

6. Barrier gate up &down signal relay switch output.

7. Barrier gate running state: OK signal output indicating that the gate is working properly.

8. Barrier gate operation abnormal alarm signal output.

9. R&G Traffic light relay switch signal output.

10. External loop detector signal anti-smashing interface, infrared sensor signal anti-smashing interface.

11. Count mode interface.

12. Arm Open priority anti-smashing function. No matter the current gate in what state, the operator through the triple

push button, software or remote control to issue an open command, the gate will give priority to the implementation of the opening action.

13. Barrier with anti-collision protection function, when the vehicle hits the gate arm, arm can be swing out to avoid

damage to the vehicle, and barrier gate machine.

14. Delay closed selection function.

15. High-sensitivity arm auto reverse function (intensity can be adjusted).

16. Parking system interface.

17.RS485 or RS232 network communication control up &down interface (no need to install communication module)

18. Anti-collision alarm signal interface.

19. Adjustable speed port (from 0.9s to 10 s)

20. High-strength precision cast steel, industry moving parts beyond the industry quality



Package:

Packed in bubble wrap firstly, and then reinforced with carton for outer packing.



Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 5



FAQ:



Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer.
Q: How long is your delivery time?Shipping Terms?
A: Based on your QTY,Generally 2-5 days for stock. 5-7 days for larger order

Shipping Terms:DHL/Fedex/TNT/SEA/AIR etc.
Q: How is your payment terms?
A: T/T or Western Union etc.

Q: Do you provide free samples ?

A: No,we don't provide free samples. The MOQ is 1pcs.

Servo Motor Automatic Vehicle Barrier Gate Opener with Remote Control 6
