Boom Barrier Gate For Coastal Areas
| Place of Origin | CHINA |
|---|---|
| Brand Name | WONSUN |
| Certification | CE |
| Model Number | DZ-290 |
| Minimum Order Quantity | 1Set |
| Price | $530/Set |
| Packaging Details | Packed in bubble wrap firstly, and then reinforced with carton for outer packing |
| Delivery Time | 5-8 work day |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 3000 Set/Sets per Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Servo Motor Automatic Boom Barrier | Boom Length | 3~6M Boom;2.5m Fence |
|---|---|---|---|
| Color | Gray | Housing Material | 2mm Cold Roller Steel Plate |
| Open/Close Speed | 0.6~8Sec;0.9~8Sec | Housing Dimension | 325 * 290 * 930mm |
| Highlight | Servo Motor Boom Barrier Gate,Boom Barrier Gate For Coastal Areas,6 Meters Arm Boom Barrier Gate |
||
Product Description

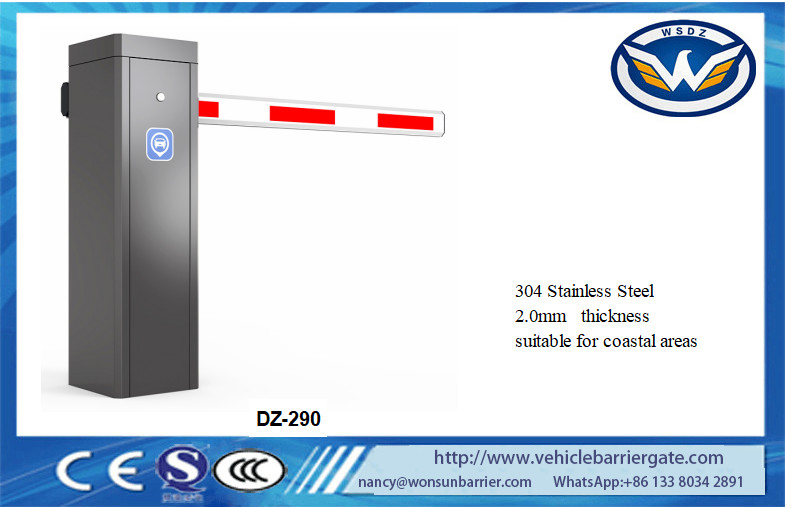

304 Stainless Steel Intelligent Servo Motor Boom Barrier Gate With 6 Meters Arm For Coastal Areas
Product overview:
Wonusn patented 304 Stainless Steel series serve motor barrier gate,combining permanent-magnet synchrounous serve motor(PMSM motor) with high quality aluminum alloy press forming housing & well-designed gear reducer,the motor features high power density,low noise,small vibration,high efficiency and fast response as special drive applied.Compared with traditional asynchronous motor,the serve motor has such advantages as higher efficiency,higher power factor,lighter,low temprerature rise,better power-saving,by which it improves power grid quality factor,and brings current power grid capacity into full play,thus save investment on power grid.The motor drive employees serve motion control algorithm to accurately position open/colse position and motion curve track through encoder,able to be widely use for expressway toll station,bus station,shopping mail,airport,hospital.,etc
Technical parameters
| Name | Servo Motor 304 Stainless Steel Barrier Gate |
| Model Nuber | DZ-290 |
| Operation Time | 0.6Sec. - 8Sec. adjustable |
| Arm Type | Straight arm,fence arm,folding arm |
| Power Supply | 24/100/240VAC 50/60Hz |
| Rated Power | 200W; 400W |
| Size | 335*285*925mm(L*W*H) |
| Material | 304 Stainless Steel 2.0 mm thickness |
| Remote Control Distance | ≤100meters( open, sunny weather) |
| Motor No-load Speed | 3000r/min |
| Working Temperature | -35℃ to +65℃ |
| MTBF | 10 million times |
| MOQ | 1 SET |
Supply Ability: 3000 Set/Sets per Month Round Arm Gate Barriers Car Barrier Gate System With Serve Motor
Functions & Features
* The barrier is equipped with a by-security feature that automatically retracts upon encountering obstacles during closure.
* Powered by an Servo motor, it boasts superior strength and requires no maintenance.
* The boom length can be customized from 3 to 6 meters, while the closing time can be adjusted between 0.9 and 8 seconds.
* Additionally, the barrier can be installed on either side for added convenience. Its operation is smooth and noiseless.
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Our Services
Service for free:
1. One year free service is supplied(not including the arm and remote)
2. Lifetime charged service is supplied
3. Technical service is supplied
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
Service for charging:
1. Broken by wrong installation
2. Broken by improper voltage
3. The surfaces of the barrier destroyed by wrong installation and usage
4. Overdue service items are out of our promise.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional barrier gate manufacturer, indusrty and trade integration.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 5-7 days if the goods are not in stock, it is according to quantity.
We can send it for you by DHL/Fedex/TNT/SEA/AIR or your requirments.
Q: How about payment terms our company provide?
A: T/T or Western Union or Alibaba
Q: Do you provide samples ?
A:No,we don't provide free samples. The MOQ of our products is 1pc.
