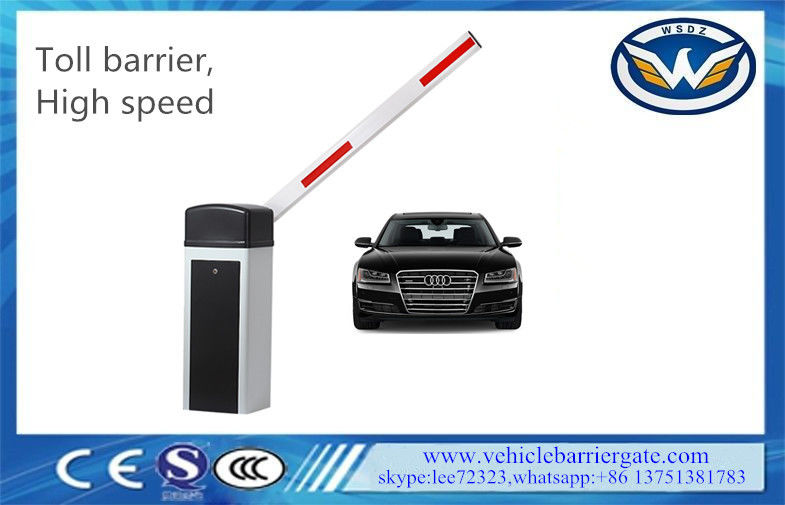

Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-122

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: USD200~250 per unit

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car parking management system

,

security barriers and gates

,

car Stopper Vehicle Barrier Gate

Name:
Max 100m Distance Remote Control Vehicle Barrier Gate Car Stopper
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Name:
Max 100m Distance Remote Control Vehicle Barrier Gate Car Stopper
Color:
Black,red,blue,white
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Capacitor:
9+9uF/450W
Telescopic Arm:
Optional
Description
Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control

Max 100m Distance Remote Control Vehicle Barrier Gate Car Stopper


Application:


 Barrier Gate with aluminum alloy arm uses the third generation motor. It is stable and has long service life performance, running three million times. And the barrier can work with parking system very well, and can be used in door and outdoor.



Parameters:

Name Barrier Gate Application Parking System
Speed 1.5/3/6 second Max Boom Length 6m
Power Supply AC220V/AC110V Rated Power 80W
Motor Rotational Speed 1400rpm Protection Degree IP44
Working Temperature -35℃~60℃ Humidity ≤90%
Remote Control Distance ≥30m, ≤100m Feature Wheel Clutch
Net Weight 44kg Gross Weight 49kg
Certificate CE Boom Type Octagonal boom




Functions & Features:





⑴ Auto closing
⑵ Thermal radiates rapidly, no thermal protection

⑶ No need to change the balance spring when changing the booms

⑷ Adopts the 3rd generation WEJOIN machine core

.⑸ Supports the infrared photocell for anti-bumping function (optional)
⑹. Supports the external and internal vehicle loop detector (optional)
⑺ Advanced manual release
⑻. RS485 communication module (optional)
⑼ Boom can rise and fall on left/right side by setting on the same machine
⑽ Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up
⑾ Special art and craft makes out the most modernized and fashionable housing
⑿. Safety photo electricity limit switch



Motor Speed and Boom Type:

Boom type Boom Length(M) Opening time(S) Height between boom and ground(M)
Straight boom 6M≥L>4.5M 6S H=0.8M
4.5m≥L>3M 3S
3m≥L 1.5S

Folding boom

90 degree

5m≥L>3M 6S
3m≥L 3S

Folding boom

180 degree



5m≥L>3M 6S
3m≥L 3S

Fence Boom

Two-level

5m≥L 6S H=0.9M

Fence boom

Three-Level

m≥L 3S H=1.5M





Selection of spring.



Spring type Diameter Spring Length
Small size 4.5MM 280MM
Medium size 5.5MM 280MM
Big size 6.5MM 280MM




 Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control 0

Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control 1

Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control 2



Car Stopper Vehicle Barrier Gate Max 100m Distance Remote Control 3




Warranty:


1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)




FAQ:

1. When barrier finish closing, why does the arm open itself slowly?



the spring is too tight, you need release the spring a little, then test it again.
see whether the main crank touch the triangle tightly or not, if tightly, adjust it.
reset the balance position and the electrical limit switch.

2. Why does the controller panel operate with "Di Di Di" abnormal noises?

As for this, it means the resistance on controller board is broken, if you have professional tools to check,
then replace that broken resistance, if not, replace that controller panel.

3. Why does the barrier finish half operation of opening and closing?

If uses our controller panel, you only need to find resistance R37 on controller panel, and repalce it is ok.

4. When barrier closed, why is there a 5 degree angle of inclination?

the model is not good, and the gear doesn't fit each other tightly.
the barrier didn't adjust well, need to reset.

5. When barrier finish open, but it closes itself without any order control, what's the problem?

To check the loop cable first, because the loop cable maybe brokem
To check the motor sensor, if it is not set well, then reset it in the middle between two holes on sensor rod.

6. Why does the arm wave a lot when opening and closing?

The spring is very tight
The Screw touches the rubber absorption tightly, need to reset again.

7. Rubber linning installation suggestion:

It is good use for fast speed, like 0.6s, 1s, 1.8s and 3s.
The place with many vehicles come and go, like shopping center, carpark area.

8. Can you accept OEM/ODM order?

Absolutely, we are manufacturer of barrier gate, with 7 years researching and developing experience.
