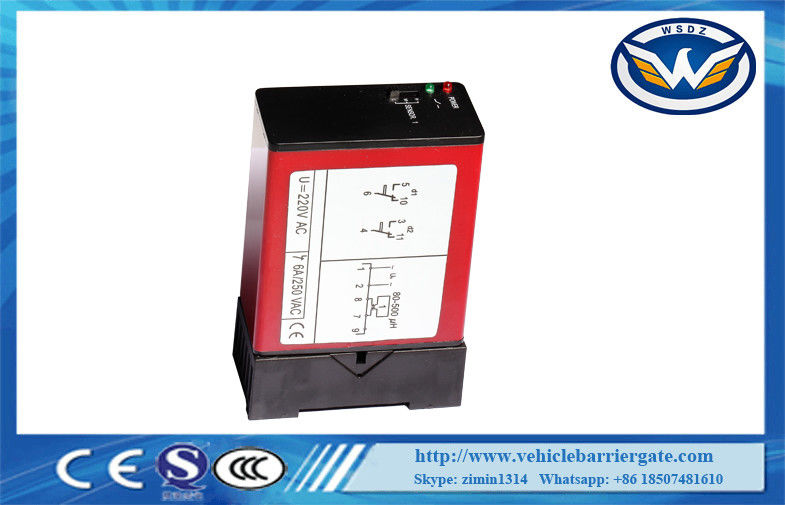

Auto Control Vehicle Loop Detector For Access Barriers Gate System

China Auto Control Vehicle Loop Detector For Access Barriers Gate System supplier
Auto Control Vehicle Loop Detector For Access Barriers Gate System supplier Auto Control Vehicle Loop Detector For Access Barriers Gate System supplier

Large Image :  Auto Control Vehicle Loop Detector For Access Barriers Gate System

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: PD-132

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Auto Control Vehicle Loop Detector For Access Barriers Gate System Power Suppply DC: 230V, 110V, 24V, 12V
Dimensions: 78x40x108 Mm (WxHxL) Reaction Time: 100ms
Model Number: Vehicle Loop Detector Packaging Details:: Carton Box

Auto Control Vehicle Loop Detector For Access Barriers Gate System



Application Scope:



Parking lot entrances vehicle detection; Parking lot space information acquisition system; Electronic police traffic lights snap shot system; Traffic monitoring system.





Main Features:



Industrial engineering design concept; Standard industrial guide installation; Strong anti-jamming ability and stability; Variety of output interface adapted to different scene; Variety of shape choice meet differentiation demand; High temperature stability; Environment drift automatic compensation function;

Coil automatic fault detection function; When the DIP switch is on position or changing the presence output time, Self-detection would be done; ABS align to the pillar which can combine with each other compactly; Presence output time can be adjustable; Work mode can be set by the DIP switch; Pulse output or permanent output can be adjustable.





Technical Data:



Supply voltage AC 220V, 110V, 24V, 12V
Supply voltage DC 24V, 12V
Sensitivity Adjustable in 3 Increments (high .medium. low)
Operating Temperature -20°C to +65°C
Storage temperature -40°C to +85°C
Frequency Range 20 kHz to 170 kHz
Reaction Time 100ms
Loop inductance Ideal: 80μH to 300μH (incl. conn. wiring): max: 50μH to500μH
Loop connection <5m optimal
Loop connection wiring Maximum length 200 meters Twisted at least 20 times per meter
Dimensions 35x74x85 mm (WxHxL)
Net Weight 300g





Vehicle loop detetcor can work with barrier gate, sliding gate motor.
