Home ProductsDriveway Barrier Gates

100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W

China 100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W supplier
100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W supplier 100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W supplier 100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W supplier

Large Image :  100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Motor Power:: 120W Working Temperature:: -40°to 75°
Product Name: 100% Heavy Duty High Speed Driveway Barrier Gates With SKF Bearing 120W Arm Type: Straight Articulated, Fence
Frequency:: 60HZ/50HZ Opening & Closing Time:: 0.6 / 1/1.8 / 3 / 6 Sec. Optional

100% Heavy Duty High Speed Drveway Barrier Gates With SKF Bearing





Product Description:



PARTICULARS DESCRIPTION
Application Outdoor
Drive Block continues torque motor
Version Left handed or Right Handed
Logic Control Included
Intelligence The use of block able torque motor drive with continue torque output and the microprocessor based controller eliminates the need of friction clutches to continue maintenance free operation.
Power Supply 2 2 0/1 1 0 + /- 1 0 % V A C , 5 0 /60 H z
Colour Different & Distinct colour pattern as decided by owner.
Boom Specification Length (3, 4, 5, 6 Mtrs) straight or articulated extruded aluminum alloy.
Housing Dimension W330mm, D300mm, H950mm
Protection All housing and internal parts will be rust & corrosion free metals or alloys of high strength.
Opening & closing time 0.6s sec ,0.8 sec , 1 sec , 1.8 sec , 3 sec, 6 sec.
Power off Manual opening possible
Safety Loop detectors /infrared sensors to be used to prevent barriers from closing on the vehicle.
Duty cycle 100%
Integration Capable of integration with all the surveillance and access control systems.
MTBF 5 million cycle
Certification CE Confirm
Material of construction Carbon Steel with power coated finish and the housing top cover is made out of high impact engg. Plastic with customizable SS Sheet.
Operating temperature

- 25 ºC to + 7 5 º





Product details:

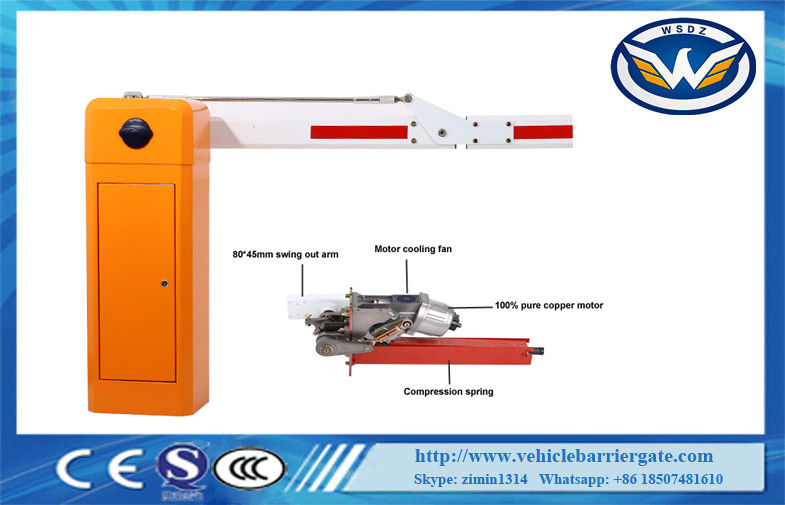

1. 100% pure copper motor machine core, heavy duty and multi-function.

2. 2.00mm thickness housing, waterproof. 3-5 years without fading.

3. Manual release
4. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
5. Die-casting aluminum alloy motor, precision and good at thermal radiating
6. Motor cooling fan, solving the problem of heat-protection
7. Double safety limit switches (photocell electrical limit switch/motor memory sensor)
8. Reversing on obstacle
9. Auto-closing

10. Support the INFRARER PHTOCELL for anti-bumping function (optional)
11. Support the external and internal VEHICLE LOOP DETECTOR (optional)
12. Traffic light interface
13. Wire control (switch signal)/ Remote control (418MHZ)
14. RS485 communication module (optional)
