High Speed Parking Security Vehicle Barrier Gate System 60HZ / 50HZ OEM

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-116

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

car parking management system

,

security barriers and gates

,

Vehicle Barrier Gate OEM

Product Name:
High Speed Heavy Duty Parking Security Barriers Vehicle Barrier Gate System
Frequency::
60HZ/50HZ
Working Temperature::
-40°to 75°
Cabinet Material::
2.00mm Cold-plated Steel
OEM:
Support
Motor Power::
120W
Product Name:
High Speed Heavy Duty Parking Security Barriers Vehicle Barrier Gate System
Frequency::
60HZ/50HZ
Working Temperature::
-40°to 75°
Cabinet Material::
2.00mm Cold-plated Steel
OEM:
Support
Motor Power::
120W
Description

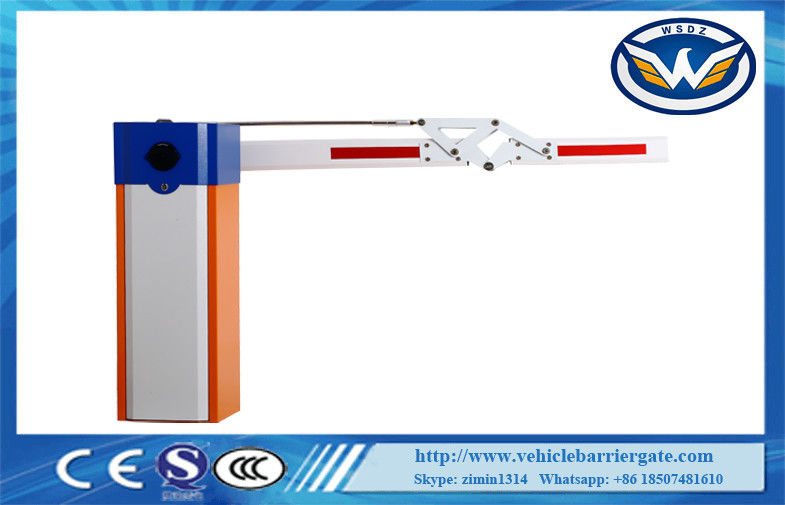

High Speed Parking Security Vehicle Barrier Gate System 60HZ / 50HZ OEM

High Speed Heavy Duty Parking Security Barriers Vehicle Barrier Gate System









Vehicle barrier gate Advantages:



1).Intelligent: Auto-detects opening and closing position in high accuracy by both mechanical and electrical

limit detector.Combination of special inner working design and smart motor ensures swift and smooth arm

movement in falling and lifting to reduce bouching.

2).Durable:Compression spring is more durable than tension spring in heavy-duty site where barrier gate

will open and close continuously.AC motor can support long-lasting working of barrier gates.Cooling Fan

processor is for decreasing working temperature.

3).Secure:Arm will be self-locked in any position to avoid unauthorized person to manually operate arm.

4).Safe:Arm will reversed back when it meets any obstacle in its movement.Optional rubber arm can avoid

any damage when arm touches anything.Additonal photobeam further ensures safety.

5).Nice-looking: 2.0mm thickness cold-rolled sheet for housing,good polishing and finishing and further

with plastic color coating 10 colors are available.

6).User friendly: Interfaces for photocell,loop detector,arm light,ect are reserved.





Technical details:



Product Name
vehicle barrier gate
Material
Cold rolled-sheet,2.00mm housing
warranty
one year
certificate
ISO9001,SGS,CE
Dimension
335*335*935mm
sample
available
OEM/ODM
available
working environment
Indoor , Outdoor





Functions&Features:



1. Pure Copper AC MOTOR-The Drive Unit

1 For alternating current, does not require limit switches nor a friction clutch, and maintenance-free
2 Machine core can automatically warming when the outside temperature is below 0
3 Die-casting aluminum alloy machine core and advanced double-stage driving motor, solve the problem of block up
4 Motor cooling: Forced ventilation with fan

2. Compressed Balance Spring

Barrier gate arm weight is counter-balanced via a adjusted compression spring, avoid accidents caused by tension spring


3. Liberate Cushion

Absorb vibration during the beam rises and falls, which keeps barrier run smoothly and reduce the impact on mechanism core

4. Photoelectronic Limit Switch

Multiple protection mechanism: photoelectric limit, motor sensor memory limit, loop detector, air pressure wave switch,

infrared photocell ensure the barrier gate operate accurately and safely

5. Arm Auto Reverse

Built in smart collision detection technology allows arm to auto reverse when hit on obstacles during closing.

Prevent futher damage on vehicle

6. Swing Out Mechanism
Arm swing out when hit directly by vehicle (only 1second model ) to avoid further damage on the vehicle
