LED Loop Detector Automatic Security Boom Gate / Barrier Fence Arm Auto Close

China LED Loop Detector Automatic Security Boom Gate / Barrier Fence Arm Auto Close supplier

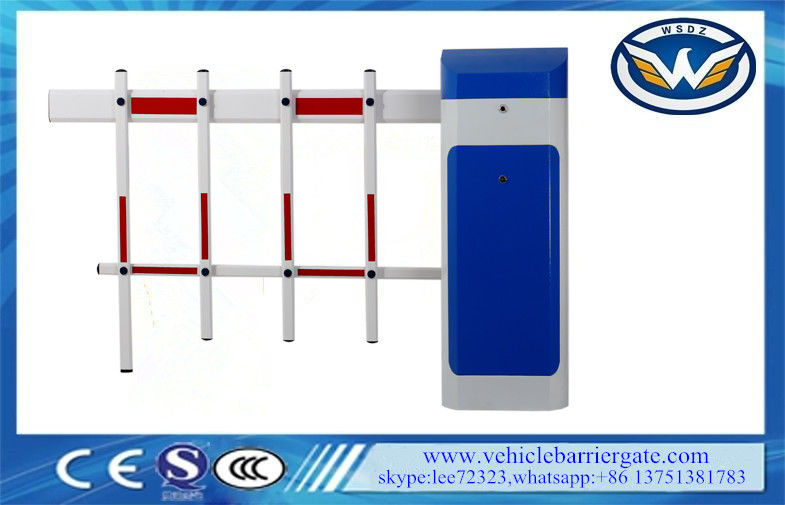

Large Image :  LED Loop Detector Automatic Security Boom Gate / Barrier Fence Arm Auto Close

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-134

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: LED Loop Detector Automatic Boom Barrier Fence Arm Auto Close Color: Black,red,blue,white
Voltage: 220V±10%, 110V±10%, 50/60HZ Rated Power: 80W
Capacitor: 9+9uF/450W Telescopic Arm: Optional

LED Loop Detector Automatic Boom Barrier Fence Arm Auto Close





Quick Detail:


Model:WSTP-134

Voltage:220V±10%, 110V±10%, 50/60HZ

Rated power:80W

Relative humidity:≤90%

Remote control distance:≤100m

Gross weight:60KG

Speed:0.6s,0.8s,1s,1.8s,3s,6s





Specification:



1. Automatic moisture control



2. Barrier motor with die-casting aluminum alloy is high-hermetic and easy for heat dissipation

3. Motor cooling fan to avoid the over-heating possibility



4. Automatic reversing when the barrier boom meets the obstruction

5. Auto closing realization through menu setting on the control panel

6. The barrier works well with infrared photocells, loop detectors, card readers, ticket dispensers, manual switch (wire control), and traffic light

7. RS485 Communication Module

8. Traffic light interface

9. LED Screen

10. Manual release device to operate the barrier when power failure

11. Infrared Photocells (optional)

12. Support the external and internal Vehicle Loop Detector (optional)



Features



1. Barrier Gate with Automatic moisture is a luxury model, specially designed to meet users with high requirements. The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.

2. Barrier Gate with Automatic moisture uses the first generation motor. It is stable and has long service life performance, running five million times. Its housing is made of galvanized steel with 1.5mm thickness, and painted, so that the barrier can be used in door and outdoor.

3. The barrier core is special and main parts are aluminum alloy casting. The barrier gate will automatically reverse when the boom meets the obstruction. The barrier works well with infrared photocells, loop detectors, the boom will automatically rise up when it meets pedestrian and vehicles. The clutch of the barrier gate is fixed inside the housing, which can be easily rotate manually without any clutch key; when the power is off, you just need to rotate the clutch by hand to raise the boom. Meanwhile, the exclusive balance device makes the barrier gate work more safely and conveniently.



LED Loop Detector Automatic Security Boom Gate / Barrier Fence Arm Auto Close




Selection of spring.



Spring type Diameter Spring Length
Small size 4.5MM 280MM
Medium size 5.5MM 280MM
Big size 6.5MM 280MM






Our Service :

1. Our Factory has 8 years OEM/ODM experiences in the line of barrier gate .
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.
5. Online technical support makes it carefree to be our business partner.
6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.
7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
