Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-124
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Wholesale Price 180 Degree Folding Arm Parking Barrier Gate Auto Reverse |
Color: |
Black,red,blue,white |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Woking Temperature: |
-40 C - +80 C |
Capacitor: |
9+9uF/450W |
Telescopic Arm: |
Optional |
Name: |
Wholesale Price 180 Degree Folding Arm Parking Barrier Gate Auto Reverse |
Color: |
Black,red,blue,white |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Woking Temperature: |
-40 C - +80 C |
Capacitor: |
9+9uF/450W |
Telescopic Arm: |
Optional |
Wholesale Price 180 Degree Folding Arm Parking Barrier Gate Auto Reverse
Introduction
WSTP-134 Automatic boom barrier gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle for parking lot, as well as hotel, exhibition center, office building,hospitals,airports, shopping mall, highway toll station etc..

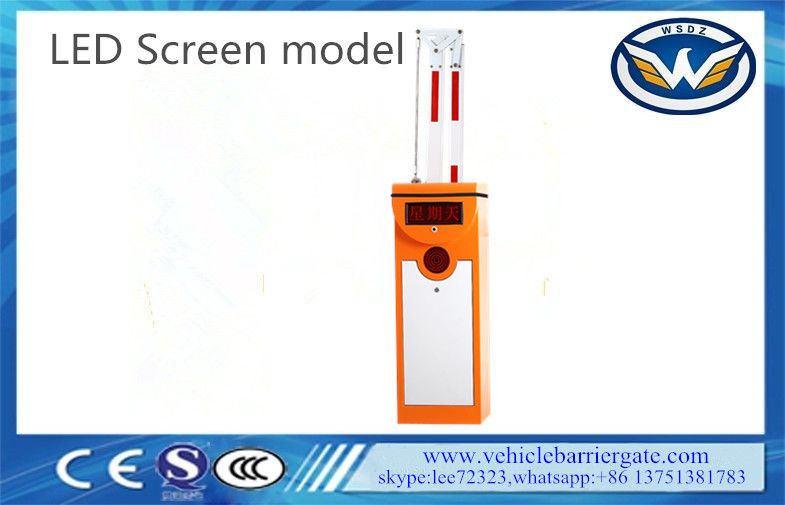

The LED screen is in the middle of the barrier housing. With a specified software and data wire, you can input the detailed time information like, 20:00, Friday, June 30th 2013. And you can input any words you like, in English and Chinese. This barrier gate also has traffic light indication. Green and Red light remind people whether it can be transited or forbidden to transit.
It uses the first generation motor.
It is stable and has long service life performance, running more than five million times.
The housing is made of galvanized steel with 2mm thickness, and painted, so that the barrier can work
with parking system very well, and can be used in door and outdoor.
Specification
| Type | WSTP-134 |
| Operation time | 0.6s,0.8S, 1s, 1.8s, 3s and 6s |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy |
| Material |
Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection |
| Size | 320*296* 985 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 80W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | less than 100 meters |
| Packing Size | 1020*375*467mm , strong carton case with cushion
inside with air bubble film for protection |
| G.W | 55 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
If urgent, can be delivery by Airplane |
| Payment | Sample: full payment
Order: usually 30%-40% advance deposite, balance before shipment |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Application |
Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It can also be customized to beused together with any auto-pay ticketing parking or access control system |
Features
1. Mould production with accurate grinding and heat treatment of worm and main rod, which is high accuracy, low comsumption and less noises.
2. Arm Reverse Function: Arm will be automatically reverse when it hits obstacles when closing.
3. Arm Swing Out Function: Arm will be swing out when vehicle hits the arm which can avoid further damage to the vehicle.
4. Cooling Fan Device: It will be automatically opened when the motor works in heavy duty and high temperature.
5. Manual Release Cluntch: When loss of power, it can manually open and close the barrier.
6. Sturdy Housing: 2mm thickness cold roll plate or galvanized plate with expoxy paiting, which can be heavy duty.
7. Anti-freezen oil can make our barrier gate working in -45 degree.
8. Spring sleeve can protect the accessories inside the machine case from damaging by spring broken.
9. Module production with all accessories, can be replced easily, and save cost.
10. Pressure spring can avoid damage casued by tention spring, which is more safety.
Motor Speed and Boom Type:
| Boom type | Boom Length(M) | Opening time(S) | Height between boom and ground(M) |
| Straight boom | 6M≥L＞4.5M | 6S | H=0.8M |
| 4.5m≥L＞3M | 3S | ||
| 3m≥L | 1.5S | ||
|
Folding boom 90 degree |
5m≥L＞3M | 6S | |
| 3m≥L | 3S | ||
|
Folding boom 180 degree
|
5m≥L＞3M | 6S | |
| 3m≥L | 3S | ||
|
Fence Boom Two-level |
5m≥L | 6S | H=0.9M |
|
Fence boom Three-Level |
m≥L | 3S | H=1.5M |
All Product Tests Before Delivery:
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
3. Why does the barrier finish half operation of opening and closing?
4. When barrier closed, why is there a 5 degree angle of inclination?
5. When barrier finish open, but it closes itself without any order control, what's the problem?
6. Why does the arm wave a lot when opening and closing?
7. Rubber linning installation suggestion:
8. Can you accept OEM/ODM order?
