Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZ-130
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: USD200~250 per unit
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Auto Close Intelligent Traffic Barrier Gate 80*100 Straight Boom |
Operation Time: |
1.8s.3s.6s |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
COM Interface: |
RS485 |
Boom: |
Straight |
Operation: |
Remote Control/Push Butoon |
Name: |
Auto Close Intelligent Traffic Barrier Gate 80*100 Straight Boom |
Operation Time: |
1.8s.3s.6s |
Voltage: |
220V±10%, 110V±10%, 50/60HZ |
COM Interface: |
RS485 |
Boom: |
Straight |
Operation: |
Remote Control/Push Butoon |

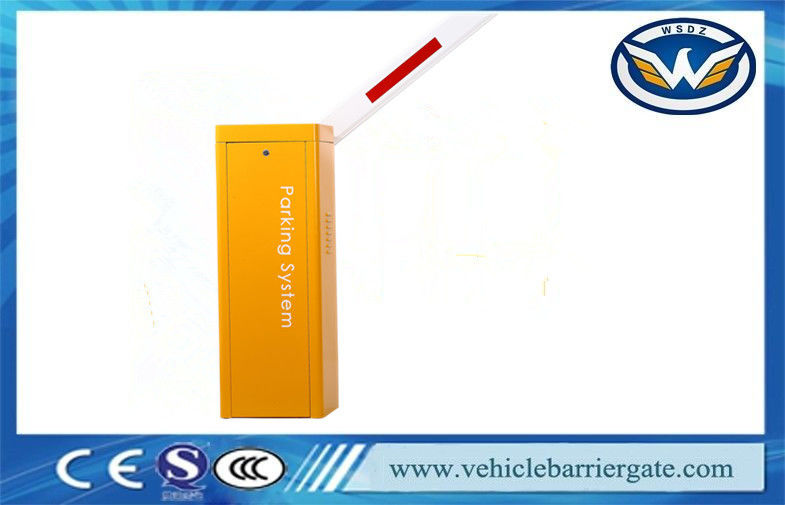

Auto Close Intelligent Traffic Barrier Gate 80*100 Straight Boom
Easy installation and maintenance reduces your labor cost
Simple structure and no limit switch design ensures easy installation and maintenance which reduces your labor cost
Heavy-duty and simple-design housing
The housing adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non-scale and unfading in 5 years, conformed to the IP54 dustproof and waterproof, Simple design also decorates your premises
Anti-collision protects boom arm (optional)
Anti-collision mechanism will protects the boom arm not to be damaged once boom arm was collided by a vehicle.
Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by IR photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Automatically close after the given time
Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Warranty:
1. Drive Motor is warranted against manufacturer’s defect for lifetime
2. Standard warranty for all components is valid for12 months from the date of delivery
3. This warranty does not include damages caused by:
a. Wear and Tear
b. Theft
c. Accidents
d. Act of God & Natural Disaster
e. Unstable power supply (i.e. inconsistent voltage or lightning)
2. Why does the controller panel operate with "Di Di Di" abnormal noises?
3. Why does the barrier finish half operation of opening and closing?
4. When barrier closed, why is there a 5 degree angle of inclination?
5. When barrier finish open, but it closes itself without any order control, what's the problem?
6. Why does the arm wave a lot when opening and closing?
7. Rubber linning installation suggestion:
8. Can you accept OEM/ODM order?
