Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE/ISO/SGS
Model Number: WSTP-125
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
AC220/110V Professional And High Quality Vehicle Boom Gate Barrier Supplier |
Brand Name: |
Wonsun |
Voltage: |
AC220/110V,50/60HZ |
Rating Power: |
120W |
Operation Time: |
0.6,1.8s,3s,6s |
Net Weight: |
60KG |
Protection Grade: |
IP54 |
Keywords: |
Parking Barrier Gates |
Color: |
Orange, Blue, Red As Standard |
One More Remote: |
Optional |
Name: |
AC220/110V Professional And High Quality Vehicle Boom Gate Barrier Supplier |
Brand Name: |
Wonsun |
Voltage: |
AC220/110V,50/60HZ |
Rating Power: |
120W |
Operation Time: |
0.6,1.8s,3s,6s |
Net Weight: |
60KG |
Protection Grade: |
IP54 |
Keywords: |
Parking Barrier Gates |
Color: |
Orange, Blue, Red As Standard |
One More Remote: |
Optional |
Ac220/110v Automatic Vehicle Barrier , Professional Boom Gate Barrier
WHAT IS IT ?
Barrier Gate, also known as the block device, was originally introduced from abroad, the English name Barrier Gate, is dedicated to the road on the restricted motor vehicle access channel management equipment, is widely used in highway toll stations, parking system management vehicle access, In the management of vehicle access. Electric barrier can be achieved through the wireless remote control landing gear alone, can also be through the parking management system (IC card management system) to implement automatic management of the state, admission card to take off the vehicle, the appearance of parking fees automatically after the release of vehicles.
Before you order ,something you need to know :
An Automatic boom barrier can be operated through:
| Model | WSTP-125 |
| Size | 360*290*1020mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+85℃ |
| Humidity | ≤90% |
| Max length | 6m |
| Boom type | Straight boom ,90°folding boom ,180° folding boom ,two fence boom ,three fence boom,flexible |
| Material | Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Remote Control Distance | Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size |
1100*430*455 mm with seven layers carton case,inside with air bubble film for protection |
| Machine core | First generation |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |

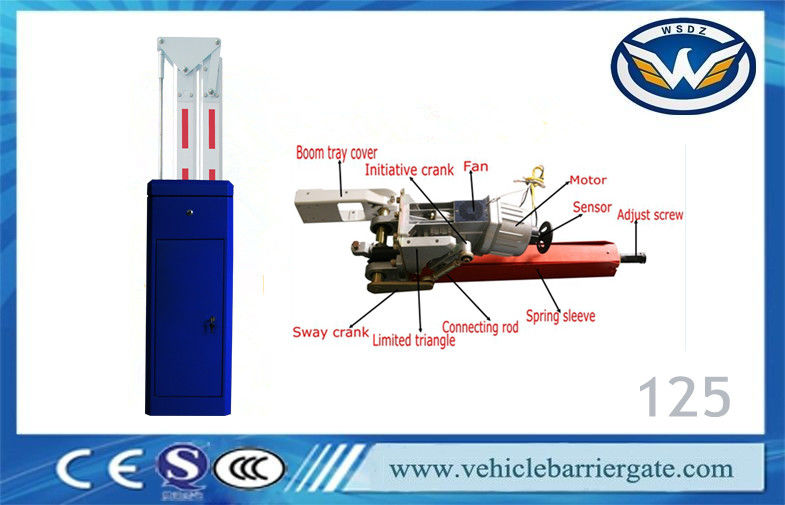

| How it works: | Turbine worm rotation |
| Working long | 10 years |
| OEM/ODM service | acceptable |
This automatic gate barrier provides a secure and convenient solution of stopping unauthorized vehicle of giving access :airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, Parking Lots, Toll Gates, Goods Yards, Railway Crossings,Highway, Hotel, Community,Bus Station,Commercial Premises, Aparment Block ,etc
1) Manual release
2) Machine core with compression spring,effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor,prescision and good at thermal riadiating
4) Motor cooling fan,sloving the probelm of heat-protection
5) Double safety limit switches(photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anto-bumping function(optional)
9) Suppot the external and internal VEHICLE LOOP DETECTOR(optional)
10) Traffic light interface
11) Wire control(switch signal)/ Remotte control(418MHZ)
12) RS485 communication module(optional)
Packing&Shipping
We use strong carton case with air bubble filled inside to protect products and save your cost.
| description | Max boom length | Action time (s) | boom height ( m) |
| Slow speed ,straight | L ≤ 6 m | 6 | 0.83 |
| Medium speed ,straight | L ≤ 4.5 m | 3 | 0.83 |
| Quick speed,straight | L ≤ 3 m | 1-2 | 0.83 |
| Fastest speed ,straight | L ≤ 2.5 m | 0.6-0.8 | 0.83 |
| 90° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| 180° Folding boom | L ≤ 5 m | 0.6-6 | 0.83 |
| fence boom (2/3) | L ≤ 4.5 m | 6 | 0.9/1.5 |
ps: the Boom Height means height from the boom holding point to the ground.
HOW WE SERVE ?
1. -Your inquiry concerns about our products or prices will be replied in 12 hours
2. -One year guarantee ,Life-time service.
3. -Well-trained and experienced sales staffs answer all your inquires in fluent English
4. -Protection of your sales area, ideas of design and all your private information
5. -Deliver by air mail or ship for your orders
6. -Detailed installation manual and wiring diagram to make everything be easy
7. -Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
The explaining authority of this product instruction and service article belongs to the production factory.
