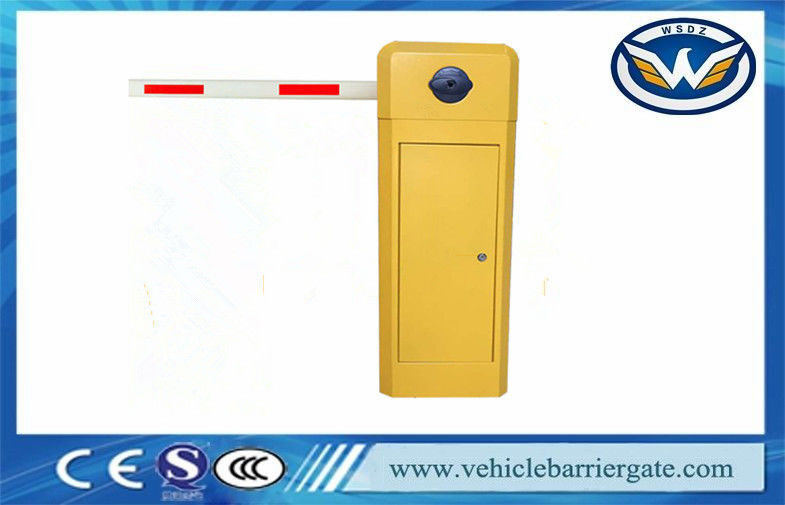

Driveway Vehicle Access Automatic Parking Lot Gates , Car Parking Barriers

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-115

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
Highlight:

vehicle access control barriers

,

security barriers and gates

,

Vehicle Access Automatic Parking Lot Gates

Name:
0.6s Driveway Gate Barriers Vehicle Barrier Gate Car Parking Blocks
Operation Time:
0.6s.0.8s.1s.1.8s.3s.6s
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80w
 Place Of Origin:
Shenzhen,China
Name:
0.6s Driveway Gate Barriers Vehicle Barrier Gate Car Parking Blocks
Operation Time:
0.6s.0.8s.1s.1.8s.3s.6s
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80w
 Place Of Origin:
Shenzhen,China
Description
Driveway Vehicle Access Automatic Parking Lot Gates , Car Parking Barriers



Driveway Vehicle Access Automatic Parking Lot Gates , Car Parking Barriers





Technical Information:



1) Beam length: <=6m
2) Opening (Closing) time: 1s, 3s, 6s
3) Center height: 0.83m
4) Machine core working temperature: -40 degrees to +75 degrees
5) Electric working temperature: -20 degrees to +75 degrees
6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz
7) Rated power: 120W
8) Relative humidity: <=90%
9) Remote control distance: >=30m
10) Net weight: 70KGS





Basic Features:



1. By-security. The barrier gate will automatically go back when meet obstacles during closing.

2. AC motor is more powerful and no maintenance.

3. Barrier Beam/arm can be chosen from 3 meters to 6 meters, and barrier gate

4. closing time is also arranged from 1 second to 6 seconds.

5. The barrier gate can be both right-installed and left-installed.

6. All the operation process is soft without any noise and shaking.

7. Infrared photocell interface, Loop detector interface and IC system

8. interface are reserved for the other functions.

9. Green light and red light are used inside for indication the position of the beam





Advanced Features:



1). Clutch key can be used to open the clutch when power off, then barrier gate can be open and close by manual easily.

2). Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting. Unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3). Exactitude aluminum alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.

4). Thimble type motor worm design for preventing plugging up in using.

5). Balance spring no noise and easy adjusting design.

6). Double limit methods (electronic limit and motor sensor memory limit) for beam rises and falls





Professional Barrier Gate Manufacturer from China, Shenzhen



Optional Color:Orange, Red, Blue, Yellow,Black.

Lead Time: less than 15 days if not custom products

Warranty time: 12 month to 24 month accordingly

Driveway Vehicle Access Automatic Parking Lot Gates , Car Parking Barriers 0



Our Service



1. Provide free technical training, guidance and information of our products and accessories.

2. Our technical staff could instruct our customers on the installation of barrier gates, sliding gate motor, parking barrier lock and etc, and deal with technical and quality issues.

3. We guarantee more than 10 years’ service life of our products with 1 years’ warranty and life maintenance.

4. Once receive the customer requirements and complaints, we will response within 24 hours.

5. Free maintenance and replacement will be provided if defects result from quality failure of our product.

6. Our company will provide technical services by phone, fax, e-mail, skype etc., please refer to the contact details.

7. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.

8. Our company will provide perfect after-sale services and technical support.
