Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-116
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
Folding Gate Barrier Automatic Barrier Gate Auto Reverse Meet Obstacles |
Operation Time: |
0.6s.0.8s.1s.1.8s.3s.6s |
Voltage: |
AC 220v/110v |
Rated Power: |
80w |
Place Of Origin: |
Shenzhen,China |
Name: |
Folding Gate Barrier Automatic Barrier Gate Auto Reverse Meet Obstacles |
Operation Time: |
0.6s.0.8s.1s.1.8s.3s.6s |
Voltage: |
AC 220v/110v |
Rated Power: |
80w |
Place Of Origin: |
Shenzhen,China |

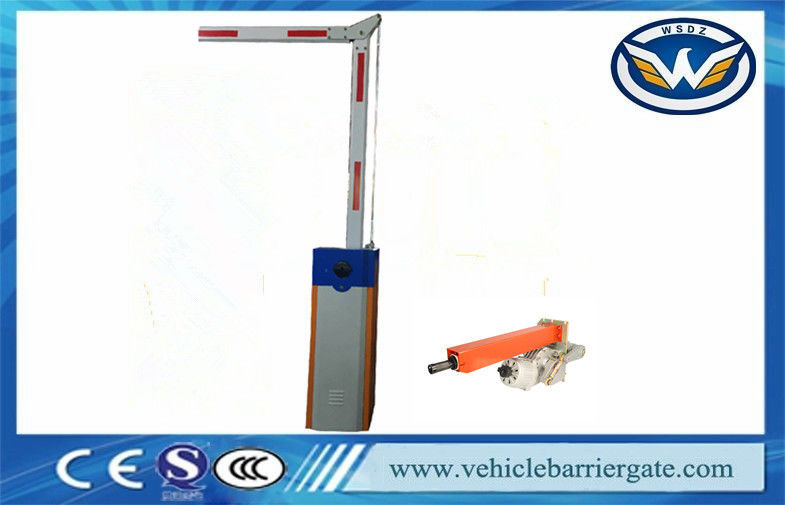

Folding boom Automatic Car Park Barrier System Reverse Meet Obstacles
Arm information:
| Arm type | Max Length of The arm |
| Straight arm- suitable for broad area without height limitation | 8m |
| Folding arm- suitable for the place with height limitation such as underground parking lot |
90 degree:5m 180 degree:4.5m |
| Fence arm- suitable for the place with the ban of animals. |
2 fence :2.5m 3 fence:3m |
| Telescopic arm- suitable for long distance transportation. | 6m |
Speed & Arm length
| Straight arm | 0.6,0.8s (1-2.5m) |
| Folding arm | 3s(1-4m),6s(1-5m) |
| Fence arm | 2 fence 3s(1-3.5m)6s(1-4.5m), 3fence 3s(1-3m) 6s(1-4m) |
| Telescopic arm | 6s(1-6m) |
Technical data:
| Type |
WSTP-115;WSTP-115B;WSTP-116; WSTP-117. WSTP-118, WSTP-119, WSTP-120,WSTP-121,WSTP-122,WSTP-123 |
| Operation time |
0.6s, 1s, 1.8s, 3s, 6s. Customized
|
| Arm Type |
Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy Fence Arm: Two or three fence arm, Max 6 meters, aluminum alloy |
| Material |
Galvanized plate or Cold roll plate, 2mm thickness sheet 3 years without rust, shedding and fading |
| Size |
320*280*935 mm |
| Spring And Bearing |
Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power |
120W |
| Rating Voltage |
AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance |
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size |
1020*375*467mm , with seven layers carton case inside with air bubble film for protection |
| G.W |
50 KG |
| Delivery |
By Sea: big order(more than 100 sets), Cheap, suggested By Air: small order(1-15 sets), quick and cheap, suggested |
| Payment |
Sample: full payment Order: usually 40% advance deposite, balance before shipment |
| Advantages |
1. Professional Manfacturer for more 8 years 2. Mould Production, High Accuracy 3. Heat Treatment, more durable than normal 4. Better Service from Professional Work Team |
| Application |
Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse,hotel, factories, condominium, car rental companies, etc. It canalso be customized to beused together with any auto-pay ticketing parkingor access control system |
Functions:
1)By-security. the barrier gate will automatically go back when meet obstacles during closing.
2)AC motor is more powerful and no maintenance.
3)Barrier Boom/arm can be chosen from 2.5 meters to 8 meters, and barrier gate.
4)Closing time is also arranged from 0.6 second to 8 seconds.
5)The barrier gate can be both right-installed and left-installed.
6)All the operation process is soft without any noise and shaking.
7)Infrared photocell interface, loop detector interface and IC system.
8)interface are reserved for the other functions.
9)Green light and red light are used inside for indication the position of the boom
Why us?
1)Enough experience more than 8 years boom barrier gate manufacture and export experience with own factory.
2)High good quality:selection of raw materials, advanced production equipment,exquisite workmanship,make sure each product has own long life for every user.
3)Competitive price:cooperated with directly raw material supplier, volume production to make sure high production capacity and reduct cost.
4)fast & on time delivery:each order production time:3-5 days we'd like to help you on special urgent purchase.
5)long-term guarantee:we always stand behind of our products. if you are not satisfied with our products or our service.please contact us without hesitation, we will try our best to meet your requirements, Any of your inquiry or complaints , we will handle within 24 hours.
