Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132C
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Product Name: |
Toll Station Intelligent Driveway Barrier Gates High Speed Barrier Gate |
Color: |
Black, Red, Blue , Orange |
Open / Close Time: |
1.8s, 3s, 6s |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Power Supply: |
AC 220±10%, 110±10% 50/60HZ |
Product Name: |
Toll Station Intelligent Driveway Barrier Gates High Speed Barrier Gate |
Color: |
Black, Red, Blue , Orange |
Open / Close Time: |
1.8s, 3s, 6s |
Housing Material: |
1.5mm Cold Roller Steel Plate |
Arm Type: |
Straight Arm, Folding Arm, Fence Arm, Optional |
Power Supply: |
AC 220±10%, 110±10% 50/60HZ |

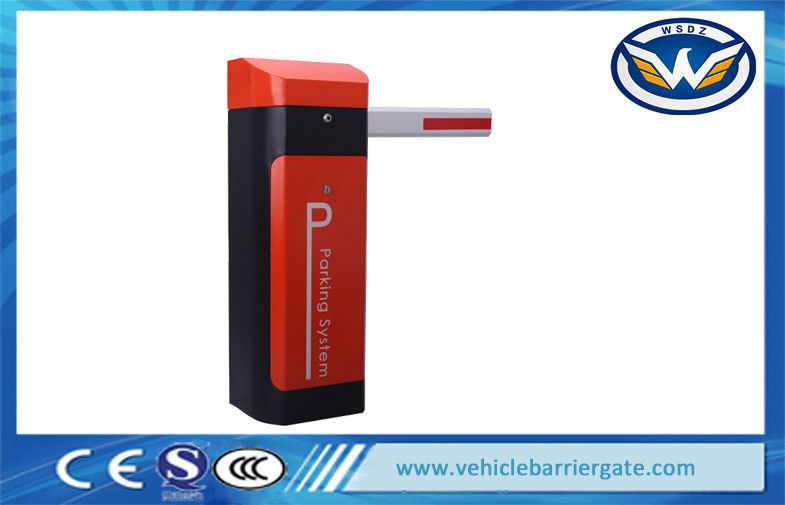

Toll Station Intelligent automatic parking barriers High Speed security barrier gate
Functions&Feactures:
|
1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
|
|
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
|
|
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
|
|
4) Arm swing out
|
|
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
|
|
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)7) Traffic light interface
|
|
7) Wire control (switch signal)/ Remote control (418MHZ)
|
|
8) RS485 communication module (optional)
|
Technical data:
| Name | Driveway Barrier Gates |
| Model | DZ-132C |
| Size | 302*352*1000mm |
| Rating Voltage | AC 220/110V ±10%, 50/60Hz |
| Motor Power | 120w |
| Speed Option | 1.8s; 3s; 6s |
| Material | 1.5mm galvanized plate or cold roll plate with epoxy paint |
| Operation Testing | More than 5 million times |
| Working Temperature | -45°C — +75°C |
| Remote Control Distance | Less than 100m |
| Package |
Packing size: 1040*352*470mm, standard export carton case Inside with PE foam for collision protection |
Parking & Shipping:
|
1. Strong carton case with cushion for safety, air bubble film inside for protect ing the apperance from damaging.
|
|
2. As for wooden crate packing, it is USD$ 10/ps;
|
|
3. As for shipping, we can send you the goods by air, sea and express, which according to your detail requirements.
|
Each barrier gate will include:
| 1 pcs Gate Barrier |
| 1 pcs arm boom (from 1m to 6m can customised) |
| 1 pcs control panel(built inside) |
| 2 pcs remote controllers |
| 1 pcs manual book |
Service for free:
| 1. One year free service is supplied(not including the arm) |
| 2. Lifetime charged service is supplied |
| 3. Technical service is supplied |
| 4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements. |
| 5. Technical support and aftersales service, it is a long term relatioship between us. |
| 6. Price can be negotiable when you have big order quantity. |
FAQ:
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
As for usual order, there is no MOQ; For OEM order, at least 30 sets.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
5. How long will your gate barrier working?
Gate barrier life span is 5-10 years.
6. What should we do if there have problems during using?
My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or
call me! We will provide our best professional service for you.
7.How to import your machines?
* We will prepare gate barrier and shipment for you after payment;
*We will give you bill of loading after gate barrier depart our shipping port;
*Our shipping agent will contact you when gate barrier arrival
With WONSUN, your job gets easier.
