Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

China Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters supplier

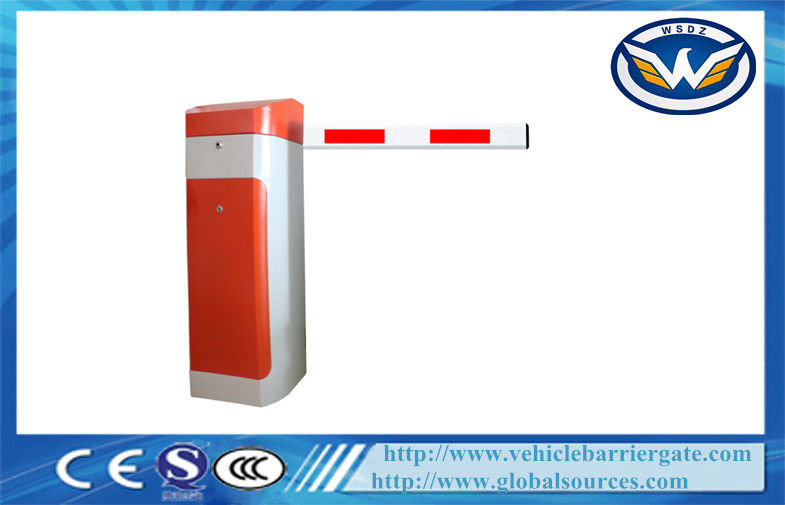

Large Image :  Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132A

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Housing Dimension: 302 * 352 * 1000 Mm Arm Type: Straight Arm, Folding Arm, Fence Arm, Optional
Housing Material: 2mm Cold Roller Steel Plate Power Supply: AC 220V / 110V
Max Boom Length: 6m Open / Close Time: 1.8s, 3s, 6s



Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters



Technical data:



Name Barrier gate, Parking barrier,Boom barrier
Model DZ-132A
Size 302*352*1000mm
Rating Voltage AC 220/110V ±10%, 50/60Hz
Motor Power 120w
Speed Option 1.8s; 3s; 6s
Material 1.5mm galvanized plate or cold roll plate with epoxy paint
Weight 55 KG
Operation Testing More than 5 million times
Arm Option

Straight arm, 1-6 m for option, 45*80mm or 45*100mm

Folding arm, 1-4.5 m for option, 90 degree or 180 degree

Fence arm, 1-5m for option, two fence or three fence

Working Temperature -45°C — +75°C
Remote Control Distance Less than 30m
Package

Packing size: 1040*352*470mm, standard export carton case

Inside with PE foam for collision protection

Application Suitable for Highway, toll station, open-parking ground, underground parking, community,shopping center





Functions&Features:



1) Machine core with tension spring, effectively avoids the accidents caused by spring breaking
2) Die-casting aluminum alloy motor, precision and good at thermal radiating
3) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
4) Arm swing out
5) Support the INFRARER PHTOCELL for anti-bumping function (optional)
6) Support the external and internal VEHICLE LOOP DETECTOR (optional)
7) Traffic light interface
8) Wire control (switch signal)/ Remote control (418MHZ)
9) RS485 communication module (optional)





Parking list:



Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1



Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters

Automated Parking Vehicle Barrier Gate , car park access barriers Boom Max 6 Meters
