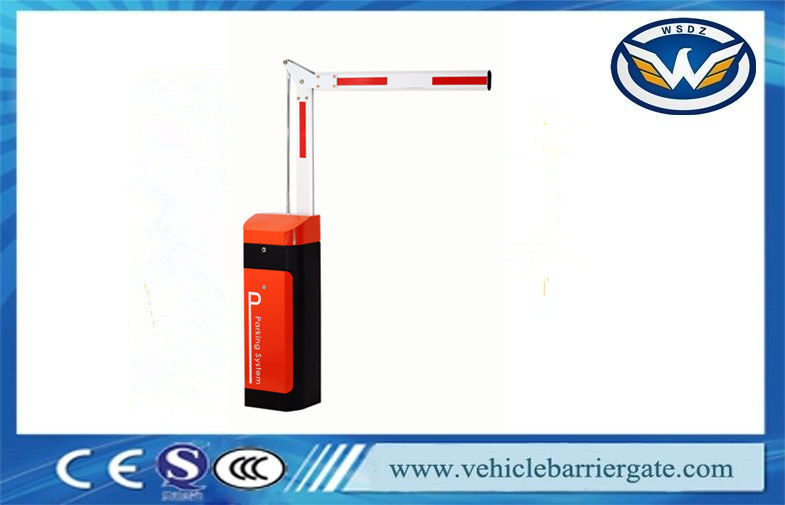

100% Duty Cycle Folding Boom automatic parking barriers 5 Million Operation Times

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-131

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

automatic car park barriers

,

traffic barrier gate

Name:
100% Duty Cycle More Than 5 Million Operation Times Intelligent Barrier Folding Boom
Housing Material:
2mm Cold Roller Steel Plate
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Relative Humidity:
< 90 %
Arm Speed:
0.6s.1s.1.8s.3s.6s.8s
Arm Type:
Straight Arm, Folding Arm,Fence Arm
Name:
100% Duty Cycle More Than 5 Million Operation Times Intelligent Barrier Folding Boom
Housing Material:
2mm Cold Roller Steel Plate
Remote Control Distance:
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Relative Humidity:
< 90 %
Arm Speed:
0.6s.1s.1.8s.3s.6s.8s
Arm Type:
Straight Arm, Folding Arm,Fence Arm
Description
100% Duty Cycle Folding Boom automatic parking barriers 5 Million Operation Times

100% Duty Cycle More Than 5 Million Operation Times Intelligent Barrier Folding Boom





The following is the approximate weight information of major components to help estimate shipping cost.



Items Weight
Mechanical unit and control panel 65 kg
Gooseneck 9 kg
6 meter arm 7 kg
4 meter arm 5 kg
3 meter arm 3 kg



Key Features:



Anti crash device.
Security at the entry as well as exit points.
The limit switches for slowdown during both opening and closing can be adjusted both mechanically and electronically.
Reliable electro-mechanical drive
Robust power transmission.
Damping into open and closed position
Adjustable clutch.
Pole of strong light alloy.
Complete unit ready for connection.
Pole stand of steel.
Long term corrosion protection.



Technical Data


Description Parameter
Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt - 1.25A @ 240V
Relative humidity < 90 %
Arm speed 0.6.1 , 1.8, 3 , 6 second
Internal lubrication Grease
Max starting torque Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second : 2.1 ± 0.1 N.M
AC rotation speed AC rotation speed :1 second : 900 ± 50 RPM |3/6 second : 460 ± 40 RPM




Features


1. steady function, sensitive reaction, low noise
2.The case shell is made of thickened steel which is shaped by 13 process flow. Without fading ,waterproofing, not rusty, durable..
3.high sensitive limit switch, pole can be instant turn on and off .accurate location.
4.control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function ,with the digital vehicle detector
7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.



Packing list


1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book

Our Sevice.


1.Professional staff answer your questions in English.
2.Customized design and OEM/ODM.
3.Supported by our professional engineers.
4.Special discount of our distributors or agents in their area.
5. Welcome you to visit our factory.
