80W arm automatic barrier gate Operator With AC Reliable Electro Mechanical Drive

China 80W arm automatic barrier gate Operator With AC Reliable Electro Mechanical Drive supplier

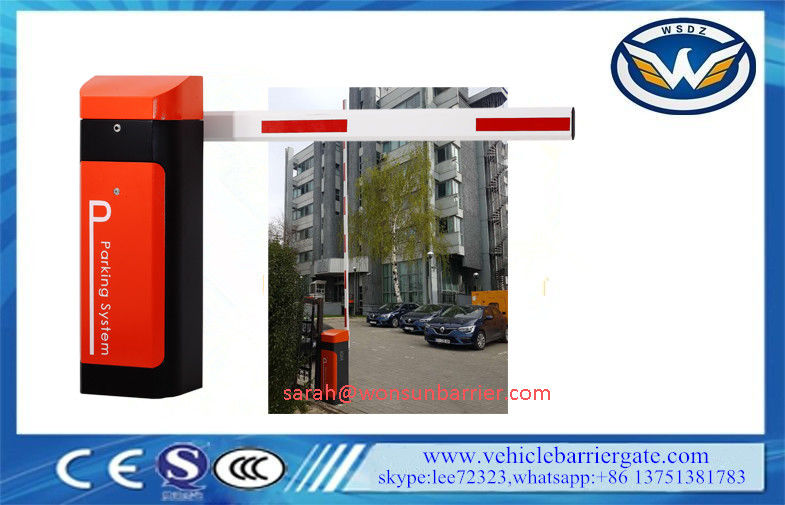

Large Image :  80W arm automatic barrier gate Operator With AC Reliable Electro Mechanical Drive

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-131

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: High Quality Barrier Gate Operator With AC Reliable Electro-Mechanical Drive. Housing Material: 2mm Cold Roller Steel Plate
Remote Control Distance: Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More Relative Humidity: < 90 %
Arm Speed: 0.6s.1s.1.8s.3s.6s.8s Place Of Original: Shenzhen,China



80W arm automatic barrier gate Operator With AC Reliable Electro Mechanical Drive





 Parameter
Movement work temperature 35°C~80°C
Relative temperature ≤90%
Power voltage 220V±10%50/60HZ
Rated power 80W
Motor no-load speed 480 rate
Insulation grade B class
Control distance ≥50M
Largest length 6M
Brake lever center from the ground level 850MM
Weight of barrier 50KG
Barrier size 335 * 335 * 935 mm (L*W*H)
Open method Read card, remote control ,manual button and Bluetooth






Key Features:



• Anti crash device.

• Security at the entry as well as exit points.

• The limit switches for slowdown during both opening and closing can be adjusted both mechanically and

electronically.

• Reliable electro-mechanical drive.

• Robust power transmission.

• Damping into open and closed position.

• Adjustable clutch.

• Pole of strong light alloy.

• Complete unit ready for connection.

• Pole stand of steel.

• Long term corrosion protection.





Technical Data


Mechanical unit Consist of the drive motor, speed reduction gear box and casing. Control panel is mounted into mechanical unit casing as a complete system that drives the arm movement. Casing is made with electroplated mild steel and finished with epoxy powder paint. The top cover and door on casing is cam locked (requires key) to avoid tampering with the internal system. The following is the parameter for complete system:

Description Parameter
Mechanical temperature -40° to 75 C
Electrical temperature -10° to 75 C
Power supply input 220V ± 10% AC, 50/60Hz
Power consumption 80 watt - 1.25A @ 240V
Relative humidity < 90 %
Arm speed 0.6.1 , 1.8, 3 , 6 second
Internal lubrication Grease
Max starting torque Max torque : 1 second : 1.4±0.2 N.M | 3 / 6 second : 2.1 ± 0.1 N.M
AC rotation speed AC rotation speed :1 second : 900 ± 50 RPM |3/6 second : 460 ± 40 RPM





Features



Intelligent. Advanced smart motor control system is combined with unique lever design to achieve swift arm movement that reduces bouncing at end position.
motor uses lowest possible rotation speed (RPM) with our force rotation ratio technology to achieve high speed opening. This reduces mechanical wear and effectively eliminates any maintenance servicing on the motor.
Improved air ventilation. New fan design located at top instead of sideways. This allowed cool air enter from bottom and exit from top to achieve more efficient cooling this enabling to support higher flow of traffic.
Safe. Arm will auto-reverse when hitting an obstacle during closing. Photo beam can be added to autoreverse the arm ahead of time before hitting approaching vehicle or human. Arm will swing out during direct collision from front avoid arm frequently broken . Traffic light (red & green) can be added to indicate permission to pass through and further enhance safety usage. Built-in MCB to protect against any electric hazard.
Heavy Duty. eliminates the use of mechanical limit switch thus reducing mechanical wear and tear. Innovative counter weight spring design avoids possibility of motor over-stressed and break due to high volume continuous open/close cycle. All these allow to work harder and work longer for you.
Fast speed. 0.8 sec fast opening / closing speed allow more car to pass through faster thus effectively reducing congestion during peak hours.
User Friendly. In the event of power failure, arm can be easily lifted up by insert a key from outside to unlock the clutch. There is no need to open up entire casing to avoid any vandalism attempt of internal parts.
Easy maintenance. Epoxy powder paint will keep the unit looking clean and new for years. Damaged barrier arm can be replaced easily. AC based motor is stronger and maintenance free (no need to change carbon).





Built in spring mechanism to counter balance arm’s weight allow for effortless motor drive and longer mechanical life span.



Control panel Consist of advance intelligent microprocessor based board and transformer housed in a weather resistant plastic casing. It controls the operation of the barrier system.



Function:



A)Support 4 types of speed – 1 ,1.8, 3 , and 6 second

B)Support separate push button for opening , closing and stop

C)Support motor encoder sensor

D)Support traffic light (red – green) output AC230

E)Optical slot sensor to control up and down limit





Casing is made from weather proof ABS plastic.

Casing dimension: 211mm x 95mm x 118mm



Packing list

1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book

.
