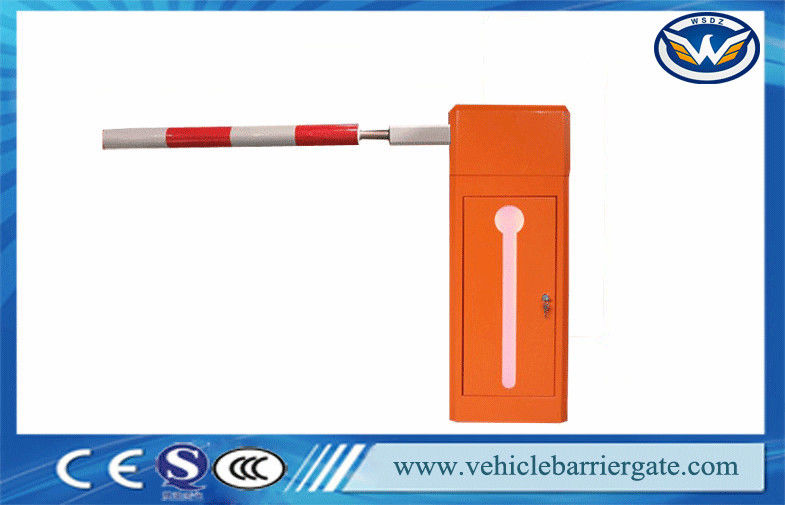

100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-125

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

Vehicle Barrier Gate Retractable Fence

Name:
100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier
Time For Up/Down:
0.6s,1s,3s,4s,6s
Power Supply:
220V±10%, 110V±10%, 50/60HZ
Motor Rotational Speed:
1400rmp
Boom Type:
Straight Boom,Fence Boom, Folding Boom
Protection Degree:
IP44
Name:
100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier
Time For Up/Down:
0.6s,1s,3s,4s,6s
Power Supply:
220V±10%, 110V±10%, 50/60HZ
Motor Rotational Speed:
1400rmp
Boom Type:
Straight Boom,Fence Boom, Folding Boom
Protection Degree:
IP44
Description
100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier

100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier





Technical Data



Running time: ,0.6s,1s, 1.8s,3s, 6s

Boom type: straight,Fence, Folding.

Max Boom length: 8M

Boom dimension (WxH): 45x80mm

Boom weight: 3kg, 4.5kg, 6kg

Voltage: 220V ± 10%,110V ± 10%

Frequency: 50/60Hz

Motor voltage: 220V

Working temperature: -40~75°c

Protection grade: IP44



100% Heavy Duty Vehicle Barrier Gate Retractable Fence / Retractable Barrier 0



Brand new process design makes the high strength and stainless folding arm



1. Open the gate by motor wheel when power off and automatic locking when power on

2. Balance boom running with a motor transmission of cranks and shafts

3. Remote control to operate the barrier gate

4. Auto reverses when the boom meets obstacles

5. Infrared photocells interface is available

6. Loop detector interface is available

7. Well integrated with car parking system equipments, with wire control (push button)

8. Interface for traffic light

9. Installation on (left or light) side.

10. Auto-delay when closing (adjustable)

11. Boom with protective rubber band





Each barrier gate will include:



1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book



Optional Boom



A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)



Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.





Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety--- Anti-hit by photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked byhuman or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered

Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.





For the things that most customer want to know:



1. MOQ: for our usual order, there is no MOQ; But for customized order, like customize color,

printing LOGO, corrosion protection base, the MOQ is 30 sets.

2. Delivery Time: as for usual order, 3-7 days when we received your advance deposite or full payment(including Saturday), For customized order, it is 10-15 days after receiving your payment(including Saturday)

3. Production Potential: 80 sets of barrier gate finished in one day for usual order, for customized

order, according to your detailed requirements

4. Quality Control: 3 control lines and 6 QC for Checking, first is motor testing line which can

promise you good and durable motor;second is machine core testing line which can promise you

stable function;final is barrier gate testing line which can promise you perfect working with its

required boom with our experienced technicist's debugging

5. Service and Support: as for presales service, we will provide all the information you need and

questions you asked; for aftersales, we will offer long term technical support, and we're sure that

any of your feedback will receive our careful attentions and prompt reply.

6. Warranty: 12 months Since the barrier gate you recieve

7. Delivery Way: we can send the goods to you by Sea, Airplane and Express, but you need tell

us which kind of way do you prefer and relative information. for example, if you want to delivery

by sea, please kindly send us the shipping requirements, like FOB or CIF, and your nearby port.

8. Payment: for sample order: full payment; for usual order, 30-40% advance deposite, balance

before shipment for large quantity.

As for here, if you have any pending orders or inquiry, please kindly feel free to contact us, we're

sure that any of your feedback will receive our careful attentions and prompt reply.





Service for free: Service for charging:
1. One year free service is supplied(not including the arm) 1. Broken by wrong installation
2. Lifetime charged service is supplied 2. Broken by improper voltage
3. Technical service is supplied 3. The surfaces of the barrier destroyed by wrong installation and usage
4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements. 4. Overdue service items are out of our promise.
5. Technical support and aftersales service, it is a long term relatioship between us.
6. Price can be negotiable when you have big order quantity.
