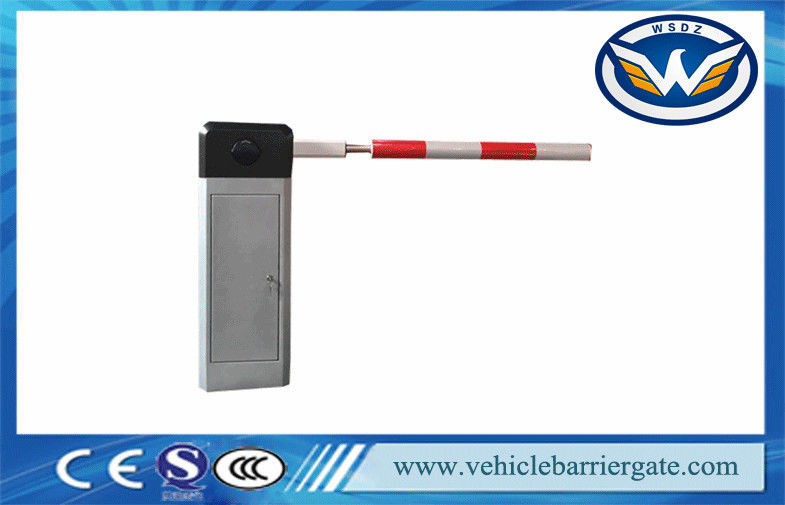

220v 110v Vehicle Parking Lot Barrier Gate Arms With Aluminum Alloy

220v 110v Parking Lot Gate Arms Vehicle Barrier Gate With Aluminum Alloy

That is how er produce this good barrier.

15types of technical devices for testing,

131 levels of precise equipment for machining

400pcs of accessories are carefully selected,

189 processes of assembly 5 steps of quality controls are not absent.

Technical Data:

1) Working temperture:-35℃-75℃

2) Humidity:≤90%

3) Power Supply: 220v±10%50/60Hz 110v±10%50/60Hz

4) Rated Power:120W/100W

5) Motor Rotational Speed:1400rpm

6) Protection Degree:IP44

7) Remote Control Distance:≤50m

8) Max Boom Length:8m

Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom

arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is

adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground

induction coil, the arm will go back to vertical position immediately until loop input was dismissed

and then the arm will go down immediately.

Safety--- Anti-hit by photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by

human or vehicle, the arm will go back to vertical position immediately. The arm will automatically

close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position

once a open command is given, which protect the vehicle not to be hit by arm.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop

input was triggered

Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered

Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism.

Also barrier boom can be manually locked in any position between horizontal and vertical, the

lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,

boom will automatically continue to open up fully if the angle between boom and level surface

beyond 45 degrees.

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep

working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust

proof, also protects operator.

Packing List

FAQ

Best Service

1. OEM/ODM order are accepted, we have 7 years OEM/ODM experience

2. Price can be negotiable with order quantity.

3. 2 professional technicists can give you best support.

4. Mould production of accessories, can provide you any replace of barrier gate.

5. Professional sales team can provide you professional answers and quick response of your

questions.

6. Sample order is OK for testing its function and working performance.

7. Warmly welcome for visiting our factory and having a face to face negotiation.
