Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Features:: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Maximum Remote Control Distance:: |
30m |
Working Temperature:: |
-40°to 85° |
Arm Material:: |
Aluminum Alloy |
Power Supply:: |
AC 220±10%, 110±10% 50/60HZ |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Features:: |
Heavy Duty, Manual Release, Swing Out, Remote Control |
Maximum Remote Control Distance:: |
30m |
Working Temperature:: |
-40°to 85° |
Arm Material:: |
Aluminum Alloy |

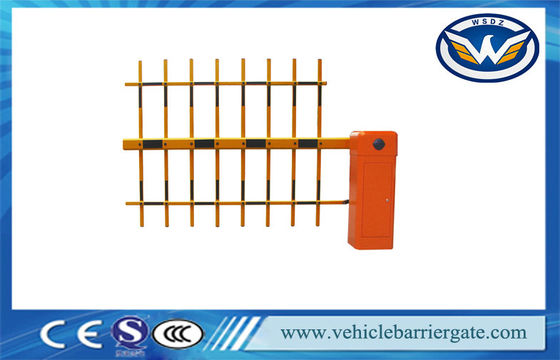

Fence Boom Car Park Barrier For Automatic Barrier Parking System
Quick details:
Model: WSTP-115
1. Straight boom arm length 1-6 m, Speed time is 6S/4s
2. Straight boom arm length 1-3.5m. Speed time is 1.8s
3. Straight boom arm length 1-3 m, Speed time is 1s
4. Straight boom arm length 1-2.5m, Speed time is 0.6s/0.8s
Specifications:
| Model | WSTP-115 |
| Size | 320*280*935 mm |
| Voltage | AC 220V/110V±10%, 50/60HZ |
| Rated Power | 120W |
| Operation time | 0.6s, 1s, 1.8s, 3s,4s,6s. Customized |
| Working Temperature | -40℃~+75℃ |
| Material |
Galvanized plate or Cold roll plate, 2.0mm thickness sheet 3 years without rust, shedding and fading |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
|
Remote Control Distance
|
Usually more than 30 meters, if there is less obstacles, even 50 meters or more |
| Packing Size | 1020*375*467mm , with seven layers carton case
inside with air bubble film for protection |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
By Air: small order(1-15 sets), quick and cheap, suggested |
Functions & Features:
1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring
breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)
Parking list:
1pc housing, 1pc machine core, 1pc control board, 2pcs remote controllers, 1pc push button, mounting accessories
Gate Arm Type:
1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm
