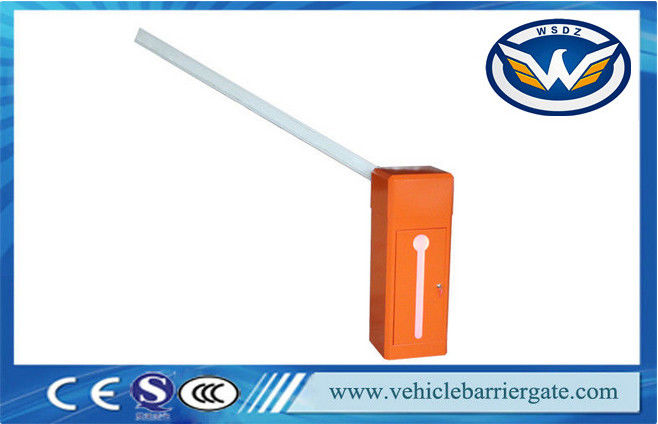

Automated Motorised Boom Gate Vehicle Barrier Gate Automatic Parking Barrier

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-127

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

car parking management system

,

Motorised Boom Gate Vehicle Barrier Gate

Power Supply::
AC 220±10%, 110±10% 50/60HZ
Name:
Automated Motorised Boom Gate Intelligent Barrier Parking Barrier
Working Temperature::
-40°to 85°
Color::
Yellow, Orange, Blue, Customized Optional
CE Certificate:
YES
Material:
2mm Cold Roll Plate Or Galvanized Plate
Power Supply::
AC 220±10%, 110±10% 50/60HZ
Name:
Automated Motorised Boom Gate Intelligent Barrier Parking Barrier
Working Temperature::
-40°to 85°
Color::
Yellow, Orange, Blue, Customized Optional
CE Certificate:
YES
Material:
2mm Cold Roll Plate Or Galvanized Plate
Description
Automated Motorised Boom Gate Vehicle Barrier Gate Automatic Parking Barrier

Automated Motorised Boom Gate Vehicle Barrier Gate Parking Barrier


Specifications:

  • 0.6 second fastest action and 100% duty cycle operation with 5 million MTBF
  • Easy installation and maintenance reduces your labor cost
  • Heavy-duty and simple-design housing
  • System automatically self-checks operation status and reports errors
  • Sine lever drive mechanism ensures smooth landing of boom without shaking
  • Anti-collision protects boom arm and vehicle (optional)
  • Safety--- Anti-hit by pressure resistance bounce
  • Safety--- Anti-hit by Loop Detector (Optional)
  • Safety--- Anti-hit by IR photocell (Optional)
  • Safety--- Anti-hit by “Opening Priority”
  • Closing Priority
  • Automatically close after the given time
  • Automatically close or open by loop detector (Optional)
  • Manually control in case of no power
  • Boom open up fully or close down in case of power failure
  • Anti-condensation in cold climate
  • Transparent plastic covers on Control Board



Technical Data:



Model WSTP-127
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested





Functions & Features


1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)





Gate Arm Length Optional:



Automated Motorised Boom Gate Vehicle Barrier Gate Automatic Parking Barrier 0

Automated Motorised Boom Gate Vehicle Barrier Gate Automatic Parking Barrier 1





Gate Arm Type:

1. Straight arm lengt size : 100*45mm. 80*45mm
2.Retractable arm size: 86*45mm





Parking & Shipping:



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole






FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.



6. What should we do if there have problems during using?

 My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or

call me! We will provide our best professional service for you.



7.How to import your machines?

*  We will prepare gate barrier and shipment for you after payment;

*  We will give you bill of loading after gate barrier depart our shipping port;

* Our shipping agent will contact you when gate barrier arrival



Automated Motorised Boom Gate Vehicle Barrier Gate Automatic Parking Barrier 2
