Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: ISO,SG,SGS
Model Number: DZ-132C
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Speed: |
0.6s,0.9s,2s,4s |
Color: |
Red, Black, Blue And White |
Arm Type: |
Straight Arm, Fence Arm And Folding Arm |
Arm Material: |
Aluminium Alloy |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |
Usage: |
Parking Lot, Toll Station, Bus Station, Community |
Working Temperature: |
-40 C - +80 C |
Communication: |
RS232/485 |
Product Name: |
Smart Parking Barrier Gate System Inverter AC Motor Vehicle Barrier Gate Motor |
Material: |
2mm Cold Roll Plate Or Galvanized Plate |
Speed: |
0.6s,0.9s,2s,4s |
Color: |
Red, Black, Blue And White |
Arm Type: |
Straight Arm, Fence Arm And Folding Arm |
Arm Material: |
Aluminium Alloy |
Rating Voltage: |
AC 220/110V±10%, 50/60Hz |
Usage: |
Parking Lot, Toll Station, Bus Station, Community |
Working Temperature: |
-40 C - +80 C |
Communication: |
RS232/485 |
Product Name: |
Smart Parking Barrier Gate System Inverter AC Motor Vehicle Barrier Gate Motor |
Smart Parking Barrier Gate System Inverter AC Motor Vehicle Barrier Gate Motor
Product Details:
DZ-132C Model Inverter Motor Barrier Gate is the enhanced barrier control which speed can be adjusted .Adopting full remote control mode, with the open /stop/close wire control interface ,counting interface, special encoder limit interface, loop detector interface, infrared interface, open limit,close limit output interface, communication interface.The remote control code is the learning code,and receiver module adopts external superheterodyne reception
| Type |
Model: DZ-132C |
| Product Name |
Smart Parking Barrier Gate System Inverter AC Motor Vehicle Barrier Gate Motor |
| Operation time | 0.9s,2s,4s,adjustable |
| Arm Type | Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy
Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy Folding Arm: 90 or 180 degree folding arm, max 5 meters, aluminum alloy |
| Material |
Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty Coated with epoxy paint for weatherproof protection |
| Size | 320*295*985 mm |
| Spring And Bearing | Heat Treatment: more durable, more than 5 million times through operation testing |
| Rating Power | 80W |
| Rating Voltage | AC 220V/110V±10%, 50/60HZ |
| Remote Control Distance | 100 meters |
| Packing Size | 1020*375*467mm , strong carton case with cushion
inside with air bubble film for protection |
| G.W | 55 KG |
| Delivery | By Sea: big order(more than 100 sets), Cheap, suggested
If urgent, can be delivery by Airplane |
| Payment | Sample: full payment
Order: usually 30%-40% advance deposite, balance before shipment |
| Advantages |
1. quick delivery time, 3-5 days for 50 sets after received advance deposite 2. 7 years OEM/ODM experience 3. quick response for handling problems |
| Application |
Suitable for indoor as well as outdoor parking area at airport, shopping mall,warehouse,hotel, factories, condominium, car rental companies, etc. It canalso be customized to beused together with any auto-pay ticketing parkingor access control system |

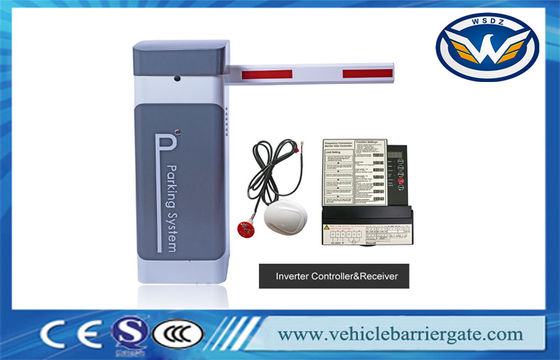

Product Pictures:
Functions&Features:
1. Arm direction can be quickly interchanged
2. Run speed can adjust from 0.9sec to 6sec, 4sec lift max 6m arm.
3. Arm automaticlly locking when power off, then open the barrier gate by motor wheel
4. Remote control to operate the barrier gate.
5. Auto-reverse when the boom meets obstruction.
6. Infrared photocells connector is available.
7. Loop detector connector is available.
8. Well-intergrated with car parking system equipment,with wire control(must be switch signal).
9. Connector for traffic light(AC220V,power less than 40W)
10. Offering dry contact signal for car parking system(COM,NC,NO)
11. Auto-delay when closing(adjustable)
FAQ
1. Are you manufacturer or trade company?
We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.
2. What is your MOQ?
For OEM order, at least 30 sets.
Wholesale model, no MOQ.
3. What is your delivery time?
As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.
For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.
4. Are there any problems of your barrier gate?
As for now, don't receive any complaint of quality problems from our customer.
5. What is the terms of payment?
30%-40% advance deposite, 60%-70% balance before shipment for large quantity.
6. Whta is your Warranty?
Our Warranty is 1 year.
7. About the installation
We can provide the manual to help you to install our barrier. If it is with software system, we can provide Team Viewer to install the software. Any help will be provided to meet.
Packing&Shipping:
| Sea | As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea |
|---|---|
| Air | As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm |
| Express | For Express, there is less customer choose it for shipment, because for its price, it is high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service. |
