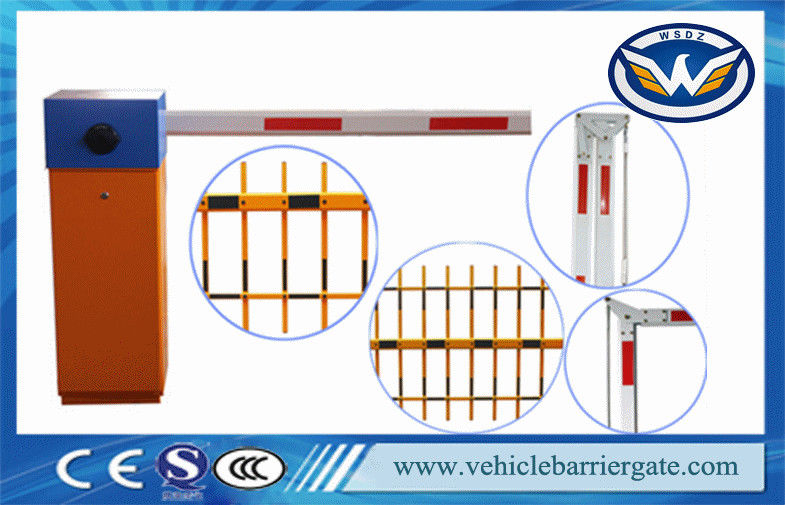

Professional IP44 Heavy Duty Car Park Security Barriers Electric Boom Gates

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-133-A

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

car parking management system

,

IP44 Electric Boom Gates

Name:
100% Heavy Duty Vehicle Barrier Gate More Than 5 Million Tims Operation
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Relative Humidity:
≤95% Coagulation Free
Net Weight:
60kg
Name:
100% Heavy Duty Vehicle Barrier Gate More Than 5 Million Tims Operation
Voltage:
220V±10%, 110V±10%, 50/60HZ
Rated Power:
80W
Relative Humidity:
≤95% Coagulation Free
Net Weight:
60kg
Description
Professional IP44 Heavy Duty Car Park Security Barriers Electric Boom Gates

100% Heavy Duty Vehicle Barrier Gate More than 5 Million tims operation





Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44





1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Market Revenue(Previous Year) Total Revenue (%)
North America USD 63,608 1
South America USD 508,869 8
Eastern Europe USD 3,180,436 50
Southeast Asia USD 318,043 5
Oceania USD 127,217 2
Mid East USD 190,826 3
Western Europe USD 1,017,739 16
Domestic Market USD 954,130 15




FAQ:



1- Can you install using loop detector or pressure sensor on it?

 Yes, the barrier gate have loop detector and pressure sensor.



2- How about the guarantee and after sale service?

We have LIFETIME guarantee for our machine core, Wehave our technical team & after- sale services who can speak fluent Engligh.



3- How long is the leading time?

For standard item

10-50 sets: 3 working days

50-100 sets:5-8 working days
200-500 sets:7-10 working days
For special item, or need custom design package or logo, need 3-7 working days longer



 4- How about the payment terms?

 TT,western union,paypal, L/C



 5- How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6- What is the package of the barrier gate?

Inside with a carton package.Then outside,according to the different shipping method, they will be packaged wooden crate



7- Can you do OEM service?

 We offer below OEM services:

 1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

 2)Can print your logo on turnstiles, can customize the retail box packing and other things.



 8- Our services:

1. For all your inquires about us or our products, we will reply you in detail within 24 hours
2. We own techinical team & after- sale services who can speak fluent Engligh.
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use it.





Our Sevice


1. Professional staff answer your questions in English.

2. Customized design and OEM/ODM.

3. Supported by our professional engineers.

4. Special discount of our distributors or agents in their area.

5. Welcome you to visit our factory.
