Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm

China Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm supplier

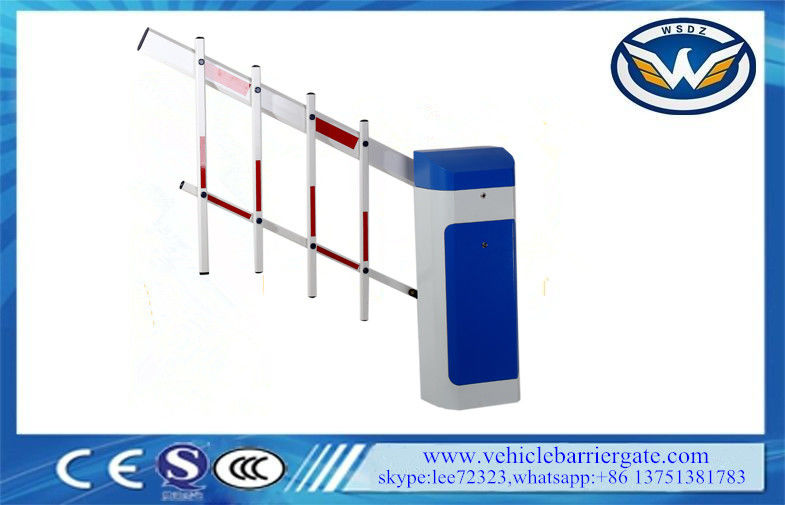

Large Image :  Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-119

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Housing Dimension: 335 * 335 * 935 Mm Housing Material: 2mm Cold Roller Steel Plate
Housing Color: Bule, Orange, White Arm Length & Height: 100* 45 Mm
Arm Material: Aluminum Alloy Arm Length: Max. 6mtrs


Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm

Quick Detail:

Name:Parking barrier gate
Speed:1s,1.8s.3s 6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V


Model Selection and Differences

Model

Boom Shape

Max Boom Length

Speed

WST1191

Straight boom

6m

6 seconds

WST1192

Straight boom

4.5m

3 seconds

WST11921

90 degree, Articulated boom

5m

6 seconds

WST11922

90 degree, Articulated boom

3m

3 seconds

WST11961

180 degree, Articulated boom

5m

6 seconds

WST11962

180 degree, Articulated boom

3m

3 seconds















Functions & Features


1. steady function, sensitive reaction, low noise
2.the case shell is made of thickened steel which is shaped by 13 process flow. Without fading waterproofing, not rusty, durable
3.high sensitive limit switch, pole can be instant turn on and off .accurate location.
4.control system adopts hi-tech digital chip technology.
5. the anti-collision function. Protecting the passenger
6. the inductive function ,with the digital vehicle detector
7.the movements adopts the most steady running mode –non-constant speed mode. Or the variable speed excogitation. (Slow – quick – slow ) .This function makes the operation steady and prolongs the working life.
8.with the available device to make the manipulation more easy: aluminum alloy post, towbar fork, automatic remote control, manual button, and so on.


Specifications


Model

WST119

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.

Clutch Device Toll Barrier Gate 1 - 6 Meters Aluminum Alloy Straight Arm

Communication with customers

1)     Q: Connected power and press open/close button but parking barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, parking barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but parking barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, parking barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
