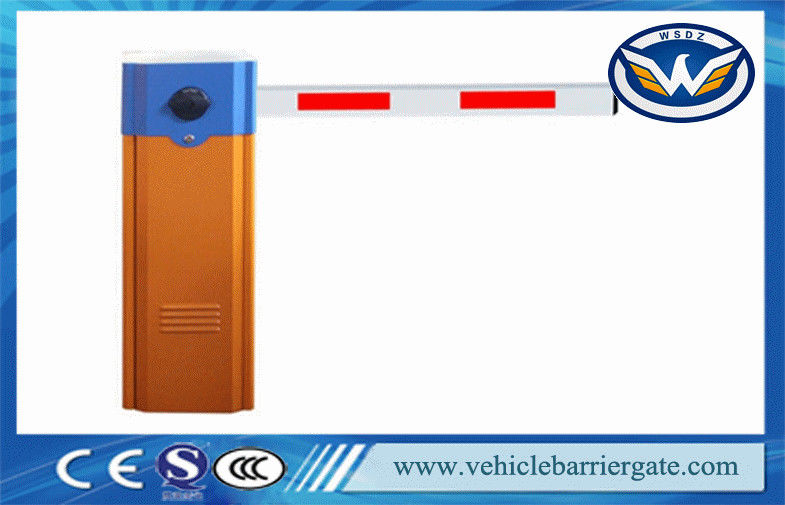

Vehicle Access Control Automatic Barrier Gate With Max 6m Straight Arm

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: ISO,SG,SGS

Model Number: WSTP-116

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

electric barrier gate

,

auto barrier gate

Material:
2mm Cold Roll Plate Or Galvanized Plate
Speed:
0.6s, 1s, 1.5s, 1.8s, 3s, 4s, 5s, 6s, Optional
Color:
Epoxy Painting, Can Be Customized
Arm Type:
Straight Arm, Fence Arm And Folding Arm
Arm Material:
1.5mm Thickness Aluminium Alloy
Rating Voltage:
AC 220/110V±10%, 50/60Hz
Usage:
Parking Area, Bus Station, Hotel, Community
Material:
2mm Cold Roll Plate Or Galvanized Plate
Speed:
0.6s, 1s, 1.5s, 1.8s, 3s, 4s, 5s, 6s, Optional
Color:
Epoxy Painting, Can Be Customized
Arm Type:
Straight Arm, Fence Arm And Folding Arm
Arm Material:
1.5mm Thickness Aluminium Alloy
Rating Voltage:
AC 220/110V±10%, 50/60Hz
Usage:
Parking Area, Bus Station, Hotel, Community
Description
Vehicle Access Control Automatic Barrier Gate With Max 6m Straight Arm

Vehicle Access Control Vehicle Barrier Gate With Max 6m Straight Arm



Specification

Type

Model: WSTP-116

Operation time 0.6s, 1s,1.5s, 1.8s, 3s, 4s, 5s, 6s. Customized
Arm Type Straight Arm: Max 6 meters, Size 45×100mm and 45*80 mm aluminum alloy

Fence Arm: Two or three fence arm, Max 4.5 meters, aluminum alloy

Folding Arm: 90 or 180 degree folding arm, max 5 meters,  aluminum alloy

Material

Galvanized sheet or Cold roll sheets, 2mm thickness, can be heavy duty

Coated with epoxy paint for weatherproof protection

Size 320*280*935 mm
Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Rating Power 80W
Rating Voltage AC 220V/110V±10%, 50/60HZ
Remote Control Distance less than 50 meters
Packing Size 1020*375*467mm , strong carton case with cushion

inside with air bubble film for protection

G.W 55 KG
Delivery By Sea: big order(more than 100 sets), Cheap, suggested

If urgent, can be delivery by Airplane

Payment Sample: full payment

Order: usually 30%-40% advance deposite, balance before shipment

Advantages

1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems

Application

Suitable for indoor as well as outdoor parking area at airport, shopping mall,

warehouse,hotel, factories, condominium, car rental companies, etc. It can

also be customized to beused together with any auto-pay ticketing parking

or access control system





Features:

1. Mould production with accurate grinding and heat treatment of worm and main rod, which is high accuracy, low comsumption and less noises.

2. Arm Reverse Function: Arm will be automatically reverse when it hits obstacles when closing.

3. Arm Swing Out Function: Arm will be swing out when vehicle hits the arm which can avoid further damage to the vehicle.

4. Cooling Fan Device: It will be automatically opened when the motor works in heavy duty and high temperature.

5. Manual Release Cluntch: When loss of power, it can manually open and close the barrier.

6. Sturdy Housing: 2mm thickness cold roll plate or galvanized plate with expoxy paiting, which can be heavy duty.

7. Anti-freezen oil can make our barrier gate working in -45 degree.

8. Spring sleeve can protect the accessories inside the machine case from damaging by spring broken.

9. Module production with all accessories, can be replced easily, and save cost.

10. Pressure spring can avoid damage casued by tention spring, which is more safety.



Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal







Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole








Shipment
Sea  As for shipment by Sea, we can provide FOB, C&F, CIF, DDP and DDU, which can satisfy all your requirements by Sea
    Air As for shipment by Air, if you really need the product for installation, and for airplane, there is length limitation, can not over 3m, so we suggest u not shipping with arm
Express  For Express, there is less customer choose it for shipment, because for its price, it is high, but not quicker than Airplane, and also there is limitation of length, but if you want to shipment by Express, we also can provide you this service.
