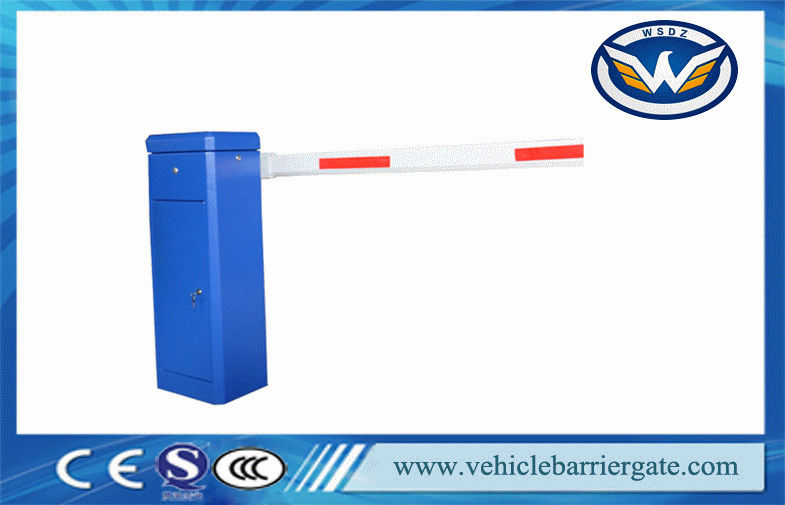

OEM Photocell Automatic Boom Barrier Car Parking Management System

Intelligent Barrier Gate Features

0.6 second fastestaction and 100% duty cycle operation with 5 million MTBF for toll gate

Free-maintenance torque motor ensures100% duty cycle operation with 5 million MTBF and 0.6 second fastest open/close time for toll gate and parking lots wth high traffic flow.

Easy installation and maintenance reduces your labor cost

Simple structure and no limit switch design ensures easy installation and maintenance which reduces your labor cost

Heavy-duty and simple-design housing

The housing adopts 2mm precise machining cold-rolled plate and static electricity sprayed anti-UV surface which is non-scale and unfading in 5 years, conformed to the IP54 dustproof and waterproof, Simple design also decorates your premises

System automatically self-checks operation status and reports errors

System always automatically self-checks operation status and reports errors shown on the LED tube of the controller.

Sine lever drive mechanism ensures smooth landing of boom without shaking

The patented precise casting Sine lever drive mechanism enables the boom arm moves from slow to fast when it starts, and fast to slow when it stops. This will effectively reduce the shaking of the boom arm and allay the burden of the electrical motor, so that the lifetime of the motor and mechanical components will be greatly prolonged.

Anti-collision protects boom arm (optional)

Anti-collision mechanism will protects the boom arm not to be damaged once boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)

While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.

Safety--- Anti-hit by IR photocell (Optional)

While arm moving down, If infrared transportation between transmitter and receiver is blocked by human or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.

Safety--- Anti-hit by “Opening Priority”

If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.

Closing Priority

While arm moving up, the arm will immediately go down once a close command is given

Automatically close after the given time

Once this function is set “ON”, the barrier will automatically close after given time (1-90 seconds adjustable) if there is no vehicle passed after barrier open.

Automatically Close by loop detector (Optional)

If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered

Automatically open by loop detector (Optional)

If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered

Manually control in case of no power

Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.

Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening, boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees.

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board

A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operaton
