Electronic Sliding Gate Motor Automated Remote Door Opener

Product Details

Place of Origin: SHENZHEN,CHINA

Brand Name: WONSUN

Model Number: WSTP-102

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiable

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

slide gate motor

,

automatic sliding gate opener

Name:
Newest Sliding Gate Motor Remote Door Opener Electronic Motor For Sliding Door
Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1800kg
Open(close) Speed:
V=12m/min
Rated Power:
350w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Place Of Origin:
Shenzhen,China
Name:
Newest Sliding Gate Motor Remote Door Opener Electronic Motor For Sliding Door
Power Supply Range:
AC220V/110V±10% 50/60Hz
Max Loading Weight:
1800kg
Open(close) Speed:
V=12m/min
Rated Power:
350w
Working Temperature Of Motor:
-25 To +55 Celsius Degree
Place Of Origin:
Shenzhen,China
Description
Electronic Sliding Gate Motor Automated Remote Door Opener

Newest Sliding Gate Motor Remote Door Opener Electronic Motor For Sliding Door





automatic gate motor description

  • Power supply range: AC220V/110V±10%  50/60Hz
  • Net weight: 8.5kg
  • Max loading weight: 1800kg
  • Working temperature of motor: -25 to +55 Celsius degree
  • Working humidity: ≤85%
  • Rated power: 200w
  • Output gear module: M=4
  • Output gear number: Z=16
  • Open(close) speed: v=12m/min
  • Maximum pull: 1100N
  • Package one set in one carton

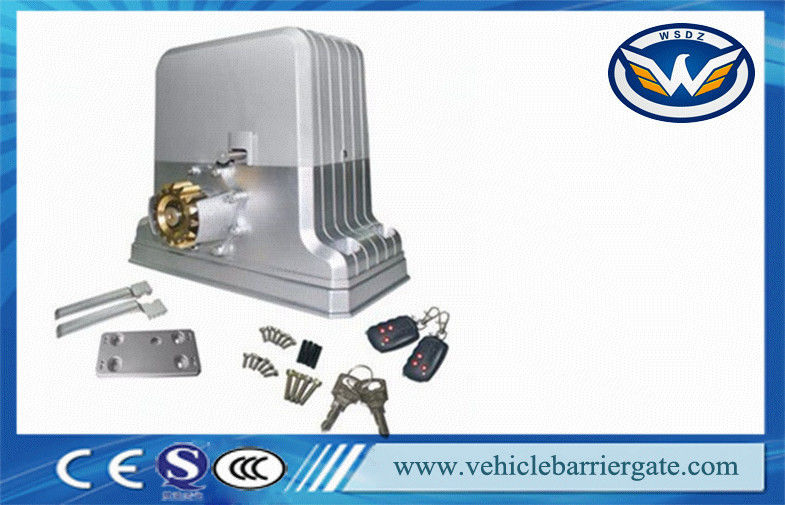

Each kit includes:

  • 1 x motor
  • 2 x remote controllers
  • 1 x control panel
  • 1 x base plate
  • 2 x magnets
  • 1 x user's manual



Functions of sliding gate opener   :


1) Integrated mechanical and electrical, all functions on one controller
2) Radio controller or lines to control open, close and stop functions
3) Magnetic limit switch, the door stops when it moves to the limit
4) Accurate limit braking
5) Electronic soft-start
6) Dialing switches to adjust the motor rotation in both directions
7) Open and close limits have a self-locking function
8) Intelligent operation - if an obstacle is detected when the door is closing, it will reverse to open,
then after 10seconds it attempts to close automatically unless you press the stop keystroke
9) Movement indication - the indicator lights up when the door is moving
10) Optional line control or remote control


automatic gate motor services:
Others information of sliding gate opener :

  • Guarantee time: 1 year
  • Delivery deadline: 8 days delivery after receive your payment
  • Package: 1 set in a standard carton packing
  • Minimum order



automatic gate motor Packaging& Shipping



                                                       Packing list

Name

Quantity

Unit

Remark

Sliding gate operator

1

set

Necessary

Remote control

2

pcs

Necessary

Internal hexangular bolt

4

pcs

M8*40

Internal hexangular bolt

4

pcs

M6*16

Left limit iron

1

pcs

Necessary

Right limit iron

1

pcs

Necessary

Base board

1

pcs

Necessary

Release key

2

pcs

Necessary

Manual

1

pcs

Necessary

Infrared photocell

1

set

Optional

Radio emitter

1

set

Optional





automatic gate motor FAQ:



Communication with customers:



1 The motor runs but the sliding gate operator doesn't work.
A: Check whether the clutch is closed.
2 The power indicator light doesn't flash and the key doesn't
react.
A: Check whether power is connected right.
B: Check whether the fusel is burned, it yes, please exchange it.
3 The opening and closing limit can not work.
A: Check whether the limit adjustment switch is installed right.
B: Check whether the limit iron is installed right. Adjust the
position of the limit iron.
4 Crash proof is not effective.
A: Check whether the connection of crash proof is correct.
B: Check whether the photocell is installed right.
C: Check whether the connection of the wire of the loop
detector is right .
5 When the gate just close up, it turns to open.
A: Check whether the voltage is normal.
B: If the crash proof equipment is installed, please check
whether it works well.
6 The remote control doesn't work
A: Check whether the battery is low. If yes, change it.
B: Check whether the code of the remote control is the same
with the code of the control panel.
