Electrical Parking Intelligent arm Barrier Gate Operator CE Certificate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WSTP-129

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

driveway barrier gates

,

electronic barrier gates

Model Number::
WSTP-129
Certificate:
CE
Arm Type:
Straight, Folding, Fencing
Color:
White, Grey, Customized
Boom Length:
Max 6 Meters
Material::
2mm Cold Roll Plate Or Galvanized Plate
Model Number::
WSTP-129
Certificate:
CE
Arm Type:
Straight, Folding, Fencing
Color:
White, Grey, Customized
Boom Length:
Max 6 Meters
Material::
2mm Cold Roll Plate Or Galvanized Plate
Description

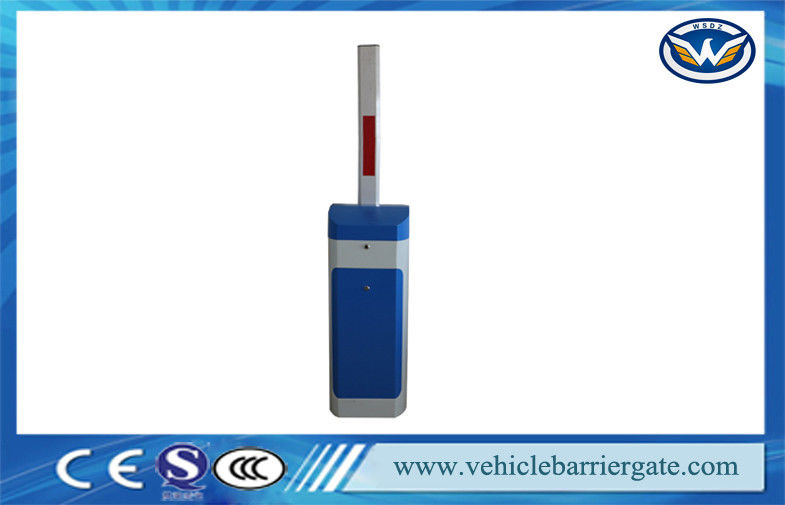

Electrical Parking Intelligent arm Barrier Gate Operator CE Certificate



Electrical Parking Intelligent arm Barrier Gate Operator CE Certificate



Model WSTP-129
Size 320*280*935 mm
Voltage AC 220V/110V±10%, 50/60HZ
Rated Power 120W
Operation time 0.6s, 1s, 1.8s, 3s,4s,6s. Customized
Working Temperature -40℃~+75℃
Material

Galvanized plate or Cold roll plate, 2.0mm thickness sheet

3 years without rust, shedding and fading

Spring And Bearing Heat Treatment: more durable, more than 5 million times through operation testing
Remote Control Distance
Usually more than 30 meters, if there is less obstacles, even 50 meters or more
Packing Size 1020*375*467mm , with seven layers carton case

inside with air bubble film for protection

Delivery By Sea: big order(more than 100 sets), Cheap, suggested

By Air: small order(1-15 sets), quick and cheap, suggested





Functions and Features:



1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)





Parking list:



Items quantity items quantity
Paint-coated case 1 motor 1
Transmission 1 limit switch 1
Barrier arm 1 capacitor 1
Spring 1 circuit board 1
Remote control device 2 console control device 1
Installation kit 1





Our service:



Service for free:
1. One year free service is supplied(not including the arm)

2. Lifetime charged service is supplied

3. Technical service is supplied

4. OEM: we can customized machine case, color, logo for you, which accroding to your detailed requirements.

5. Technical support and aftersales service, it is a long term relatioship between us.

6. Price can be negotiable when you have big order quantity.

Service for charging:

1. Broken by wrong installation

2. Broken by improper voltage

3. The surfaces of the barrier destroyed by wrong installation and usage

4. Overdue service items are out of our promise.
