Access Control AC110 / 220V Electric Barrier Gate For Parking System

China Access Control  AC110 / 220V  Electric Barrier Gate For Parking System supplier

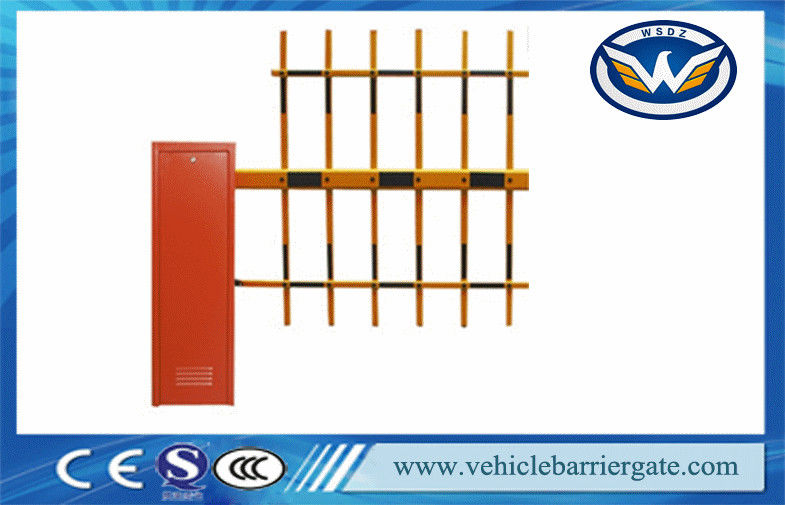

Large Image :  Access Control AC110 / 220V Electric Barrier Gate For Parking System

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: Access Control 0.6S AC110 / 220V Automatic Barrier Gate For Parking System Remote Control Distance: Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More
Rating Power: 120W Max Boom Length: 8 Meters
Operation Time: 0.6s,1s, 1.8s, 3s, 6s. Customized Country of Origin: China

Access Control  AC110 / 220V  Electric Barrier Gate For Parking System





Advanced Features:



1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.




Model Selection and Differences



Access Control  AC110 / 220V  Electric Barrier Gate For Parking System




Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44




Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









1 pcs Gate Barrier
1 pcs arm boom (from 1m to 6m can customised)
1 pcs control panel(built inside)
2 pcs remote controllers
1 pcs manual book
.
