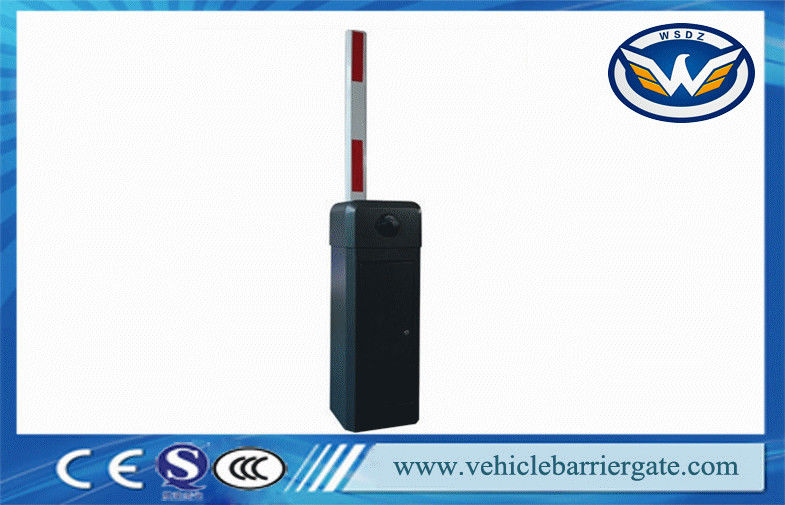

Intelligent Vehicle Barrier Gate Price For Parking Toll System

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: DZTP-139-D

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

car parking management system

,

Intelligent Vehicle Barrier Gate

Material::
2.00mm Cold Roll Plate Or Galvanized Plate
Speed::
0.6s, 1s, 1.8s, 3s, 6s
Features::
Heavy Duty, Manual Release, Swing Out, Remote Control
Usage::
Airport, Highway, Residential, And Access Control
Color::
Yellow, Orange, Blue, Customized Optional
Arm Type::
Straight, Fold, Fence Arm
Material::
2.00mm Cold Roll Plate Or Galvanized Plate
Speed::
0.6s, 1s, 1.8s, 3s, 6s
Features::
Heavy Duty, Manual Release, Swing Out, Remote Control
Usage::
Airport, Highway, Residential, And Access Control
Color::
Yellow, Orange, Blue, Customized Optional
Arm Type::
Straight, Fold, Fence Arm
Description
Intelligent Vehicle Barrier Gate Price For Parking Toll System

Intelligent Vehicle Barrier Gate Price For Parking Toll System





With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.





Functions & Features

1. Manual release
2. Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3. Die-casting aluminum alloy motor, precision and good at thermal radiating
4. Motor cooling fan, solving the problem of heat-protection
5. Double safety limit switches (photoelectricity limit switch/motor memory sensor)
6. Reversing on obstacle
7. Auto-closing
8. Support the INFRARER PHTOCELL for anti-bumping function (optional)
9. Support the external and internal VEHICLE LOOP DETECTOR (optional)
10. Traffic light interface
11. Wire control (switch signal)/ Remote control (418MHZ)
12. RS485 communication module (optional)



The speed of opening and closing, arm automatic (Barrier Gate) first need to understand about the  barrier vehicle (barrier gate). Is the speed of lifting the on - off of the wood car barrier by general

 speed lifting wooden barrier Barrier Gate is divided 3 speed level is estimated that the manufacturer

 to design gear drive are soon to follow the security barrier such as barrier length not exceeding 3m

 meters, speed 0.6-1.8 seconds, suitable for use in the opening and closing so that speed such

as toll. Because of the number of Pass or Easy car with so much need to choose to barrier the car

being open - off much faster.Barrier length not exceeding 4.50 meters, speed 3 second suitable


Specifications:



Model



DZTP-139-D (WONSUN 1st generation machine core)

Power



80w

Material



Cold roll plate, Galvanized plate or stainless steel

varnish baking, 3 years without fading

Running Time



0.6s, 1s, 1.8s, 3s, 6s

Operating Temperature



-45°C to 75°C

Voltage:



220V ± 10%, 110V ± 10%

Relative Humidity



<90% coagulation free

Motor speed



30r/min

Boom length



Max 6 meters

Net weight:



50Kg

MCBF



≥5, 000, 000 times

Housing Size



320*280*935mm

Traffic light



Optional

Rail material



Aluminum Alloy

Boom Type



Straight arm: Mar 1- 6 meters optional, size 45×100mm  aluminum alloy.

Folding arm: 90°folding arm / 180°folding arm, aluminum alloy

Fence arm: Two or three fence arm, Mar1- 6  meters, aluminum alloy

Related accessories



infrared sensors, loop detectors,traffic light, UHF readers

Application



Parking Lots, Toll Gates, Goods Yards, Railway Crossings,
Commercial Premises, Aparment Block

Advantages



1. quick delivery time, 3-5 days for 50 sets after received advance deposite

2. 7 years OEM/ODM experience

3. quick response for handling problems

Our other products



WONSUN has other products: tripod turnstiles,  sliding gate motor,

flap barrier,swing gate motor,

pedestrian access control turnstiles and barriers,
and other related accessories.







Parking & Shipping:



Packing list
Name Specifications Quantity Remarks
Machine core Good in working 1 Main part
Barrier arm Straight, folding or fence arm 1 Optional
Boom press board   1 Fixing the boom
Self-tapoing screw ST4*16 Fixing the boom
Self-tapoing screw st3*10 4 Fixing the boom
Supporting pole   1 Fupporting the boom
Expanion bolt M16*150 4 Fixing the case
Hexagonal Inner Screw M8*35 4 fixing the case
Clutch key   1 clutch device
Case Key   2 for case and cover locking
Balance spring According to length of barrier arm 1 for sapre usage
Remote emitter less than 30m is available 1 For remote control
Remote conrol handles less than 30m is available 2 For remote control
Instruction in English 1 For reference
RS485 interface   1 Optional
Disc   1 Optional
Communication Mould   1 Optional
Cover head   1 3 years without fading
Expanion nut M8 4 Fixing the supporting pole






Applications:

Fast Barrier Gate adopts special machine core, swing away boom holder and boom. This barrier gate runs in high speed but stably.

The running time is 1 second. It can be used for highway toll, parking system, factory gate, and so on.





FAQ:



1. Are you manufacturer or trade company?

We're professional manufacturer who has our own factory in Shenzhen Pingshan since 2007.



2. What is your MOQ?

As for usual order, there is no MOQ; For OEM order, at least 30 sets.



3. What is your delivery time?

As for usual order, it is 3-5 days after received your payment with 50 sets order quantity.

For OEM order, it is 7-15 days after receieved your payment with 30 sets order quantity.



4. What is the terms of payment?

30%-40% advance deposite, 60%-70% balance before shipment for large quantity.



5. How long will your gate barrier working?

 Gate barrier life span is 5-10 years.



6. What should we do if there have problems during using?

 My dear friend, We have 1 year guarantee. Any gate barrier problems you have, Welcome email or

call me! We will provide our best professional service for you.



7.How to import your machines?

* We will prepare gate barrier and shipment for you after payment;

*We will give you bill of loading after gate barrier depart our shipping port;

*Our shipping agent will contact you when gate barrier arrival
