Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-129-B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Name: |
3s / 6s Automatic Car Park Barriers With Straight Arm For Parking Lot |
Rating Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8 Meters |
Remote Control Distance: |
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More |
Protection Degree: |
IP44 |
Country of Origin: |
China |
Name: |
3s / 6s Automatic Car Park Barriers With Straight Arm For Parking Lot |
Rating Voltage: |
220V±10%, 110V±10%, 50/60HZ |
Max Boom Length: |
8 Meters |
Remote Control Distance: |
Usually More Than 30 Meters, If There Is Less Obstacles, Even 50 Meters Or More |
Protection Degree: |
IP44 |
Country of Origin: |
China |

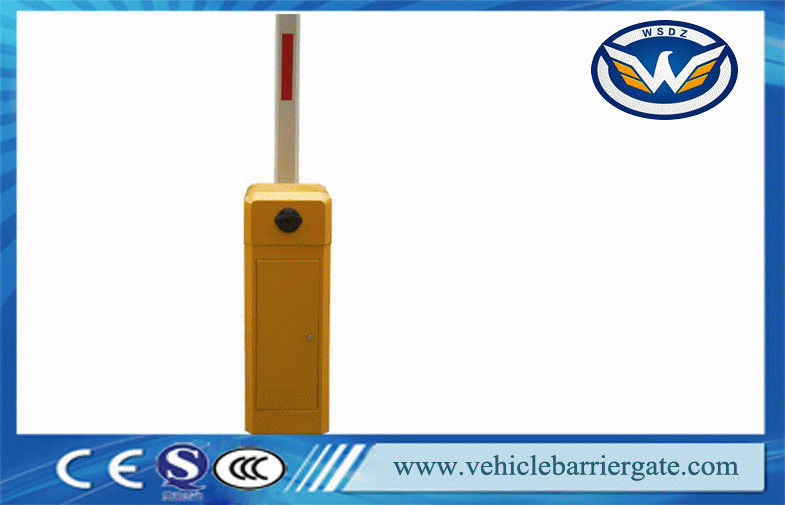

Parking Lot 3s / 6s Automatic Car Park Barriers With Straight Arm
Adavantages of WONSUN barrier
1. Special driving structure, no gears, non-belt driving,maintenance free, high stability, longer life.
2. Special balancing structure design makes the barrier arm has the feature of slow-starting, fast-running, slow-stopping.
3. It is running without arm-shaking.
4. The brarrier arm is 90 degrees running which excluding the failure caused 360 degrees running.
5. Special low-speed aluminum housing motor integrated gearbox design, low noise, fast heat-dissipation.
6. The driving mechanism has the desiging of intelligent overheating protection system, in frequent use, it can control the warming of the motor, makes the motor not burned easily.
7. The main engine adopts mechanical limit switch and photoelectric limit switch dual protection, to avoid the problems caused by using traditional magnetic switch which is easily interfered by the external environment.
8. Barrier gae tcan be chosen from 1m to 6m.
Model Selection and Differences
Specifications
|
Model |
WST1211 |
|
Working Temperature |
-40℃～+75℃ |
|
Voltage |
220V±10%, 110V±10%, 50/60HZ |
|
Rated power |
80W |
|
Relative humidity |
≤90% |
|
Remote control distance |
≥30m |
|
Net weight |
48kgs |
|
Speed |
1S,1.8S,3S, 6S |
|
Max boom length |
6 meters |
|
Motor Rotational speed |
1400rmp |
|
Protection Degree |
IP44 |
Communication with customers
1) Q: Connected power and press open/close button but traffic barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but traffic barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
4) Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?
|
A. |
Reason |
Solution |
|
1 |
Length adjustment of connecting rod not correct |
Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line |
|
2 |
Nuts on the limit switch loose |
Tighten the nuts when arm at 90° vertical and 180° horizontal
|
Why choose us?
1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.
