0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved

China 0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved supplier

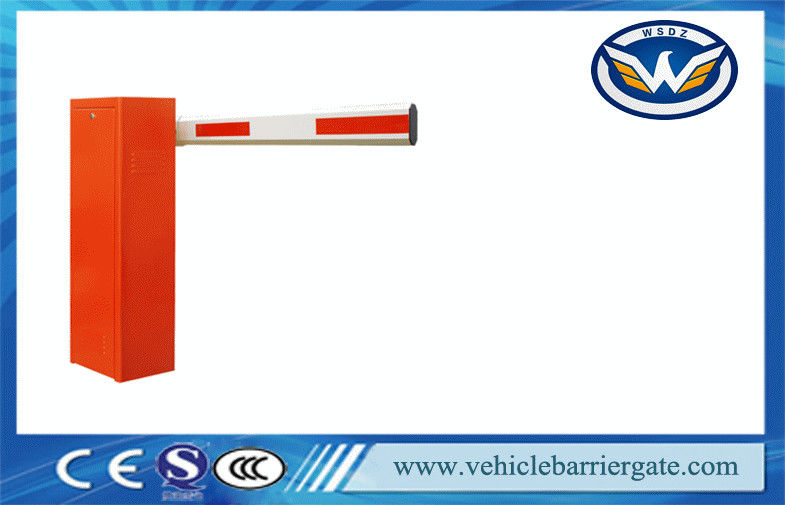

Large Image :  0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: DZTP-133-A

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Detailed Product Description
Name: 0.6S Intelligent Automatic Barrier Gate Gate Arm Barrier For Highway Rating Voltage: 220V±10%, 110V±10%, 50/60HZ
Surface Treatment: Hot Dip Galvanized, Powder Coated Operation Time: 0.6s.0.8s1s, 1.8s, 3s, 4s.6s. Customized
Data Transmission Speed: 4800bps/100M G.W: 50 KG

0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved



Work with WONSUN



1.One year's free servicing is supplied( not including the arm)
2. Lifetiom charged servicing is offered.
3. Technology servicing is supplied
The following situations are charged for servicing (or changing):
1. Broken by wrong installation.
2 Broken by improper voltae.
3. The surfaces of the system destroyed by wrong installation our use.
4. Broken by natural disaster.
5. Overdue
6. Servicing items out of our promises.
The upgrade and improvement of the product won't be notified if there is any.
The explaining  authority of this product instruction and service article belong to the production factory.




Model Selection and Differences



0.6S Highway Intelligent Automatic Boom Barrier Gate CE Approved




Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?



A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?



A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?



A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?



A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal









Basic Features:



1)By-security. the barrier gate will automatically go back when meet obstacles during closing.

2)AC motor is more powerful and no maintenance.

3)Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4)Closing time is also arranged from 1 second to 6 seconds.

5)The barrier gate can be both right-installed and left-installed.

6)All the operation process is soft without any noise and shaking.

7)Infrared photocell interface, loop detector interface and IC system.

8)interface are reserved for the other functions.

9)Green light and red light are used inside for indication the position of the boom





Advanced Features:



1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.
