Remote Control Vehicle Traffic Barrier Gate Automatic Toll Barrier Gate

Product Details

Place of Origin: China

Brand Name: WONSUN

Certification: CE, ISO, SGS

Model Number: WST-116

Payment & Shipping Terms

Minimum Order Quantity: 1PC

Price: negotiation

Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.

Delivery Time: 3-7 working days after received your payment

Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,

Supply Ability: 1000 Sets/Month

Get Best Price
Contact Now
Specifications
High Light:

vehicle access control barriers

,

security barriers and gates

,

Automatic Toll Barrier Gate

Name:
Remote Control Vehicle Barrier Gate Automatic Toll Barrier Gate
Open / Closing Time:
0.6s/1s/1.8s/3s/6s
Housing Dimension:
280 * 240 * 996 Mm
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Material:
2mm Cold Roller Steel Plate
Place Of Origin:
Shenzhen,China
Name:
Remote Control Vehicle Barrier Gate Automatic Toll Barrier Gate
Open / Closing Time:
0.6s/1s/1.8s/3s/6s
Housing Dimension:
280 * 240 * 996 Mm
Arm Material:
Aluminum Alloy
Arm Width & Height:
100 * 45 Mm
Material:
2mm Cold Roller Steel Plate
Place Of Origin:
Shenzhen,China
Description

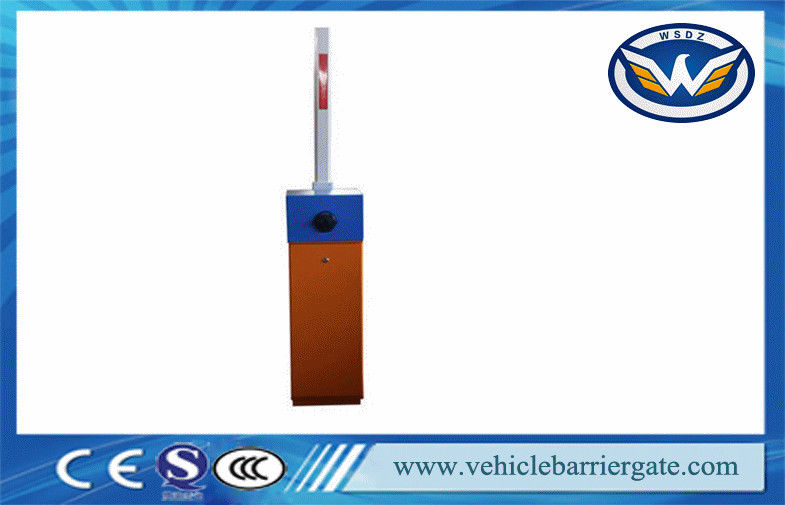

Remote Control Vehicle Traffic Barrier Gate Automatic Toll Barrier Gate

Remote Control Vehicle Traffic Barrier Gate Automatic Toll Barrier Gate



What is the davantages of Wonsun barriers?


 1)The humanized clutch device:in case of power off, unlock the clutch device and raise the boom manufally. By the time the power is supplied, lick the clutch device to make it working normally again.

2)Special spring device:Both the compression spring and tension spring can be used in the machine, Using the compression sprin can avoid accidents caused by the tension spring.

3)Three control buttons:for boom raising, falling and pausing.

4)Boom backtrack function:the boom will rise if hits something when falling.

5)Infrared photocell design:for avoiding the crash when the boom falling, so as to prevent the vehicles from being pressed.

6)Both external and internal loop detectors are supported.

7)"open","close" and "stop" controlling interfaces.

8)RS-485 communication serial interface(optional)

9)Traffic light signal connection device: red light for stop,green light for pass.

10)Remote control and wire control for selection.




Model Selection and Differences



Remote Control Vehicle Traffic Barrier Gate Automatic Toll Barrier Gate 0




Specifications



Model

WST1211

Working Temperature

-40℃~+75℃

Voltage

220V±10%, 110V±10%, 50/60HZ

Rated power

80W

Relative humidity

≤90%

Remote control distance

≥30m

Net weight

48kgs

Speed

1S,1.8S,3S, 6S

Max boom length

6 meters

Motor Rotational speed

1400rmp

Protection Degree

IP44



Why choose us?

1. OEM Brand, Logo, Label available
2. 1 Year Standard Warranty, excellent after-sales service
3. 24h*7d at your service to give you best support
4. Detailed installation manual and wiring diagram to make everything be easy
5. Fast finishing time for you to become more competitive at your local market :3-5 days for small order.


Communication with customers

1)     Q: Connected power and press open/close button but traffic barrier gate no action?

A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button,traffic barrier gate will move but even when it is at right position, the motor still running and not stop?


A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but traffic barrier gate arm no action?


A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


4)  Q: When opening/closing,traffic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?


A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
