Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors

China Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors supplier

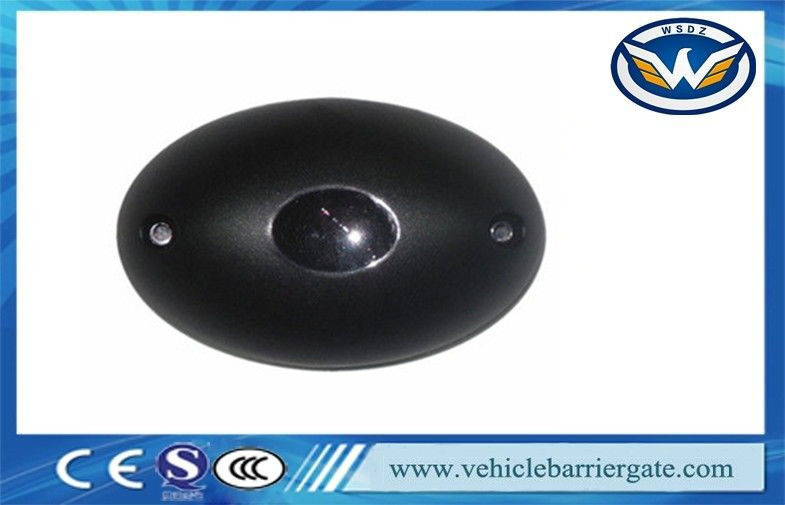

Large Image :  Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTP-158

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: High Quality Sliding Gate Motor Accessories Infrared Photocell Beam Sensors Powe Supply: DC 10.5V~24V/0.5A
Infrared Wave Length: 940mm Response Spee: 50ms
Infrared Transmission Frequency: 1.92KHZ Warranty: 1 Year

Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors





Specification for Infrared Photocell Beam Sensors For Barrier Gate
Model WSLP23-7
Working voltage DC 12 - 24V
Working current R - 15mA ; T - 30mA
Installation Outdoor
Use Home Security/Access Control System
Certificate CE certificated
Detecting distance 15m
Frequency 1.92KHz
Wave length 940nm
Working temperature -25℃~+55℃
Alarm Output NC/NO
Relay output 1A max 36V
Waterproof grade IP55
Dimension 49.2*75.3*29.6mm



Features:



1.Single beam sensor/single beam detector is used for automatic slide door, coil door , garage door windows etc.

2.Consists of a transmitter and a receiver, and the integrated amplifier can produce infrared beam.

Narrow infrared beam (I or II) can avoid interruption by external light.

3.Even installed at low height(20-40cm from the floor), the detecting distance can also be guaranteed(5-15meters).

4.The beam produced by MICROCELL provides a self-detecting function for the sliding doors. Once the self-detecting beam is interrupted, the door will stop closing and reverse rapidly to the utmost width. The door will open until the detecting beam is resumed. When the door completely closes, the detecting beam becomes invalid.



Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors

Waterproof Sliding Gate Motor Accessories Infrared Photocell Beam Sensors
