Product Details
Place of Origin: CHINA
Brand Name: WONSUN
Certification: CE
Model Number: DZ-132
Payment & Shipping Terms
Minimum Order Quantity: 1Set
Price: $260/Set
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing
Delivery Time: 5-8 work day
Payment Terms: L/C, T/T, Western Union
Supply Ability: 3000 Set/Sets per Month
Name: |

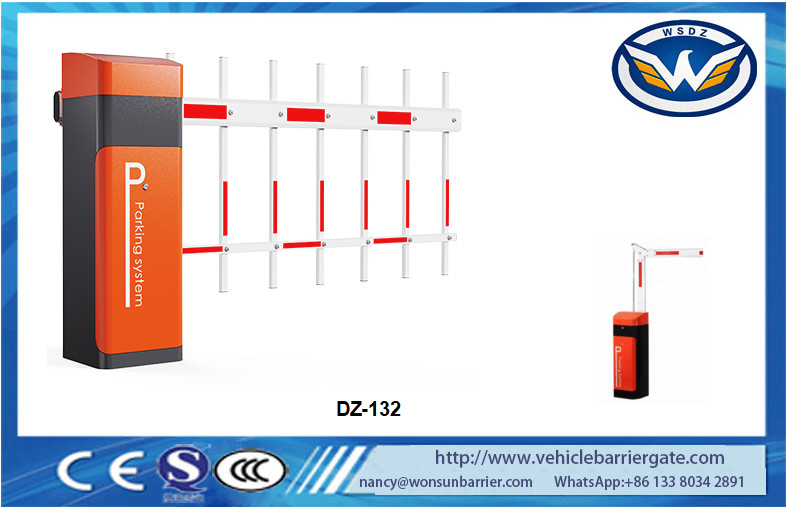

DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
3~6M |
Net Weight: |
48kg |
Motor Consumption: |
80W |
Open/Close Speed: |
1.5~6Sec |
Input Interface:: |
Photo Cell, Loop Detector, Parking System,wire Control |
Name: |
DZ-132 Automatic Boom Barrier Gate |
Boom Length: |
3~6M |
Net Weight: |
48kg |
Motor Consumption: |
80W |
Open/Close Speed: |
1.5~6Sec |
Input Interface:: |
Photo Cell, Loop Detector, Parking System,wire Control |
DC24V Brushless Motor Vehicle Barrier Gate Remote Control Parking Car Lots
product description
Model No. | DZ-132 automatic boom barrier gate |
Framework Material | Cold-roll sheet |
Beam | Aluminum alloy |
Dimension | 352 * 302 * 1120mm |
Net Weight | 48KG |
Input Interface | Photo cell, loop detector, parking system,wire control |
Input | 12V relay signal or Pulse Wide>100MS |
Power Supply | DC24V |
Motor Consumption | 80W |
Working Temperature | -35°C to +85°C |
Relative Humidity | ≥90% |
MCBF | 5million time |
Push Button | Support |
Remote Control | Two button remote transmitter, Distance≤100m |
Optional Accessories | Loop detector; IR photo cell |
Beam Length | 1M - 6M |
Opening/Close Time |
1.5sec-6sec |
Functions and Features:
1 The running speed can be adjusted from 1.5s to 6s
2 Can be quickly interchanged
3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
4 Curved crank arm three- link movement structure, the operation is stable
5 Wireless remote control control open/close
6 Auto reverse function(force adjustable)
7 Infrared photocells connector is available
8 Loop detector connector is available.
9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
10 Connector for traffic light(AC220V,power less than 40W)
11 Offering dry contact signal for car parking system(COM,NC,NO)
12Auto-delay when closing(adjustable)
13 RS485 or CAN network communication interface(no need to install module)
14 Counting interface
15 24V backup battery interface(Can be charged by using solar energy)
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
7-Can you do OEM service?
We offer below OEM services:
1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.
2)Can print your logo on turnstiles, can customize the retail box packing and other things.
8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.
4. We have very experienced engineers ,can help you better use it.
