RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control

Wonsun is a very reliable company, fast shipment and good quality, the most important is competitive prices.

—— Ali Alabadi

I really recommend, a great team and good quality. Very good. I will buy again.

—— Oliver

I'm Online Chat Now

RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control

China RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control supplier

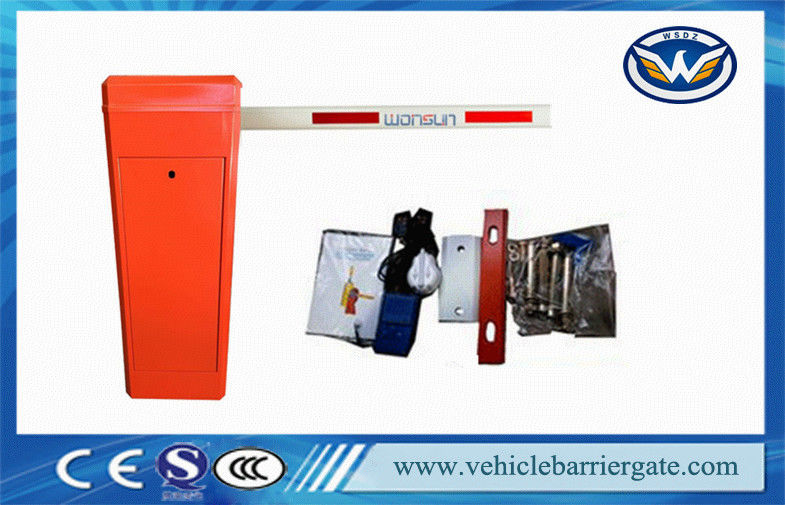

Large Image :  RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTT666

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: RS 485 Intelligent Remote Control Automatic Car Parking Boom Barrier Gate Working Voltage: AC220V±10%,50HZ±10%
Remote Control Distance: ≥30m Motor Rotational Speed: 1400rmp
Protection Degree: IP54 Colors Of Housing: Orange, Blue, Grey



RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control

Features:


. Integrative machine core: all part is made by mold, so all parts can be more accurate.

And so the barrier gate can be much more stable;
.Left or right installed can be amendable. Customer can amend install direction by himself;
.Accurate link mechanism: link mechanism can release arm’s shake and motor load, so

the barrier gate can move more stable and barrier gate’s working life can be more longer;
.70W turbine worm transmission deceleration induction motor: Drive Steady, Noise Lower,

Structures Compact, can realize self-locking.



Technical data



1. Working temperature:-40~+75 degree centigrade.
2.Power: 220V±10%, 110V±10%, 50/60HZ
3.Rated power: 80W
4.Relative humidity: ≤90%
5.Remote control distance: ≥30m
6.Net weight: 56kgs
7.Speed: 1S, 3S, 6S
8.Protection Class: IP54



Features



1) By-security. the barrier gate will automatically go back when meet obstacles during closing.

2) AC motor is more powerful and no maintenance.

3) Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4) Closing time is also arranged from 0.6 second to 6 seconds.

5) All the operation process is soft without any noise and shaking.

6) Green light and red light are used inside for indication the position of the boom



Application & Advantages



Wonsun barrier gate can be integrated with any vehicle access control equipment,

like ticket dispensers and other related car parking products.

Places like highways, toll systems, car parking lots, malls,

and other public areas needed vehicle access control.

1.durable and sturdy

2.trouble free operation

3.minimum maintenance







Package Carton or Wooden;
Trade Terms EXW, FOB, CFR, CIF are preferred
Payment Terms 100% TT before delivery or Western Union
Delivery Time

Sample:5working days;

Bulk orders: 12 to 15 days;

MOQ 1 pc
Our other products

Wonsun has other products as: tripod turnstiles, sliding gate motor,parking lock,swing gate motor, garage door opener,

pedestrian access control turnstiles and barriers,

and other related accessories.



Welcome to check our website for more information.



RS 485 Intelligent driveway barrier gates , entrance barrier systems Remote Control







Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book




Optional Boom



A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)



Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.





Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked byhuman or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.



FAQ



1-Can you install using loop detector or pressure sensor on it?

Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.



2-How about the guarantee and after sale service?

We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.



3-How long is the leading time?

For standard item

10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.



4-How about the payment terms?

TT,western union,our company already joined the trade assurance,it will highly protect your order security.



5-How do you send the products to me,how long?

As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping forwarder. it normally takes 7-60 days depend on different countries.



6-What is the package of the barrier gate?

Inside with a carton package.Then outside,there are wooden crate package.



7-Can you do OEM service?

We offer below OEM services:

1)we can make custom design turnstile,or you tell us your requirements,we can make a design for you.

2)Can print your logo on turnstiles, can customize the retail box packing and other things.


8-Our services:
1. For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We own well-tranied and passional sales & after- sale services who can speak fluent English language
3. We offer OEM services. Can print your own logo on the products , can customize the retail box packing and other things.

4. We have very experienced engineers ,can help you better use it.
