Parking Folding gate automation system / Boom nice gate barrier For Office Entrance

China Parking Folding gate automation system / Boom nice gate barrier For Office Entrance supplier

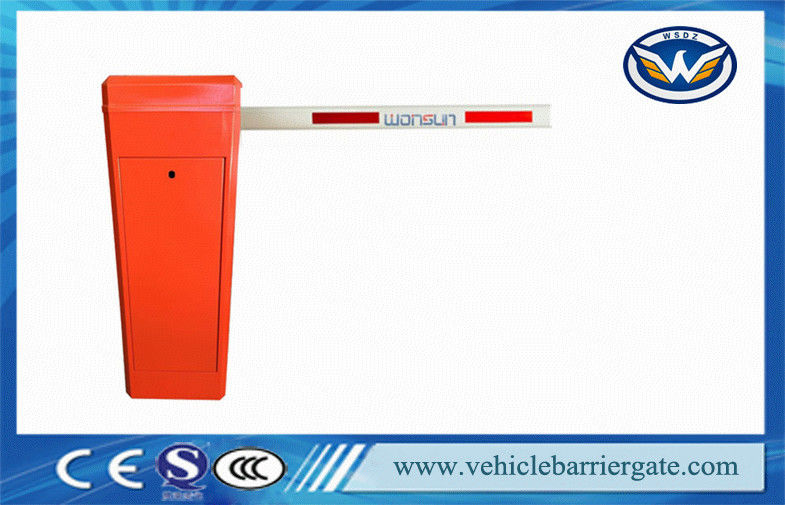

Large Image :  Parking Folding gate automation system / Boom nice gate barrier For Office Entrance

Product Details:

Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WSTT665

Payment & Shipping Terms:

Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Contact Now
Detailed Product Description
Name: 3s / 6s Remote Control Parking Gate Folding Type Boom For Office Entrance Working Voltage: AC220V±10%,50HZ±10%
Humidity: <=90% Rated Power: 120W/100W
Motor Rotational Speed: 1400rpm Max Boom Length: 8m



Parking Folding gate automation system / Boom nice gate barrier For Office Entrance





Quick Details:



1) Beam length: <=8m

2) Opening (Closing) time:0.6s 1s, 1.8s.3s, 6s.8s

3) Center height: 0.83m

4) Machine core working temperature: -40 degrees to +75 degrees

5) Electric working temperature: -20 degrees to +75 degrees

6) Rated voltage: AC 220V (10%) 50Hz/60Hz, 110V (10%) 50Hz/60Hz

7) Rated power: 120W

8) Relative humidity: <=90%

9) Remote control distance: >=30m

10) Net weight: 70KGS





Features



1) By-security. the barrier gate will automatically go back when meet obstacles during closing.

2) AC motor is more powerful and no maintenance.

3) Barrier Boom/arm can be chosen from 3 meters to 6 meters, and barrier gate.

4) Closing time is also arranged from 0.6 second to 6 seconds.

5) All the operation process is soft without any noise and shaking.

6) Green light and red light are used inside for indication the position of the boom



Advantages

1)clutch key can be used to open the clutch when power off.

2)Fan cooling machine reduce the motor temperature by high frequency using, never get heat-protecting, unique temperature calefaction design for low temperature using, prevent freezing in cold weather.

3)Exactitude aluminium alloy die-casting motor base reduce the noise and joint abrasion to prolong the barrier gate working life.









Parking Folding gate automation system / Boom nice gate barrier For Office Entrance



Each barrier gate will include:



1 pcs Gate Barrier

1 pcs arm boom (from 1m to 6m can customised)

1 pcs control panel(built inside)

2 pcs remote controllers

1 pcs manual book




Optional Boom



A: Booms for avoiding striking(medium-sized octagonal boom, round foam boom,elliptic boom)

B:180°articulated boom(Max 4M)

C:90° articulated boom(Max 4M)

D:2 fences boom(Max 5M)

E:3 fences boom(Max 4M)



Boom with LED lights and light colors changeable.

Light flashing pattern, speed and colors controlled by a remote control.





Anti-collision protects boom arm (optional)

Once anti-collision mechanism installed, it will protects the boom arm not to be damaged once

boom arm was collided by a vehicle.

Safety--- Anti-hit by pressure resistance bounce

While moving down,arm will immediately go back to vertical position once it is obstructed by an

imposed force, which protects the vehicle or person not to be hit by boom arm. The sensitivity is adjustable.

Safety--- Anti-hit by Loop Detector (Optional)
While barrier boom moving down, If a coming vehicle was detected to be existing on the ground induction coil, the arm will go back to vertical position immediately until loop input was dismissed and then the arm will go down immediately.
Safety--- Anti-hit by photocell (Optional)
While arm moving down, If infrared transportation between transmitter and receiver is blocked byhuman or vehicle, the arm will go back to vertical position immediately. The arm will automatically close once the infrared transportation recovers.
Safety--- Anti-hit by “Opening Priority”
If a vehicle is coming while arm moving down, the arm will immediately go back to vertical position once a open command is given, which protect the vehicle not to be hit by arm.
Automatically Close by loop detector (Optional)
If loop detector is installed, after vehicle passed the barrier will automatically close once the loop input was triggered
Automatically open by loop detector (Optional)
If loop detector is installed, when barrier boom is in horizontal position, the barrier boom will go up immediately once the loop input was triggered
Manually control in case of no power
Once power is off, just open the cabinet and manually control the barrier by a gear mechanism. Also barrier boom can be manually locked in any position between horizontal and vertical, the lock status will remain until unlock manually.
Boom to open up fully or close down in case of power failure

If power is suddenly off while boom closing, boom will automatically close down fully if the angle

between boom and vertical plane beyond 45 degree. If power failure occurs during boom opening,boom will automatically continue to open up fully if the angle between boom and level surface beyond 45 degrees

Anti-condensation in cold climate

The barrier remains low power consumption even without closing and opening input, which will

keep the motor in normal temperature. The lubricant will not be frozen so that the barrier will keep working in frozen environment

Transparent plastic covers on Control Board
A transparent plastic covers on the Control Board to makes Control Board water proof and dust proof, also protects operator.
