Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-115
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
325 * 280 * 936 Mm |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Color: |
Bule, Orange, White, Yellow |
Power Supply: |
AC 220V / 110V |
Arm Material: |
Aluminum Alloy |
Arm Length: |
Max. 6mtrs |
Housing Dimension: |
325 * 280 * 936 Mm |
Housing Material: |
2mm Cold Roller Steel Plate |
Housing Color: |
Bule, Orange, White, Yellow |
Power Supply: |
AC 220V / 110V |
Arm Material: |
Aluminum Alloy |
Arm Length: |
Max. 6mtrs |

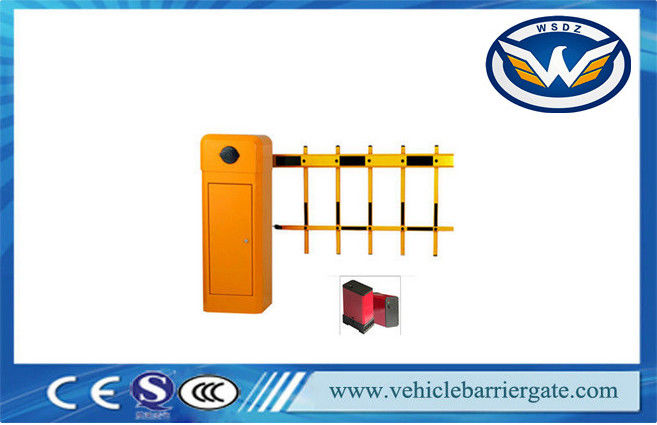

Manual release Parking Barrier Gate with 50 Meters Remote Controller Two Fence Arm
Quick Detail:
Name: Parking barrier gate
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Parking barrier gate provides a secure and convenient solution of stopping unauthorized vehicle or giving access to authorized vehicle for parking lot, as well as hotel, exhibition center, office building ,hospitals,airports, shopping mall etc.. Especially for highway toll gate.
Model Selection and Differences
Model | Boom Shape | Max Boom Length | Speed |
WST1151 | Straight boom | 6m | 6 seconds |
WST1152 | Straight boom | 4.5m | 3 seconds |
WST11521 | 90 degree, Articulated boom | 5m | 6 seconds |
WST11522 | 90 degree, Articulated boom | 3m | 3 seconds |
WST11561 | 180 degree, Articulated boom | 5m | 6 seconds |
WST11562 | 180 degree, Articulated boom | 3m | 3 seconds |
Functions & Features
1) Manual release
2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking
3) Die-casting aluminum alloy motor, precision and good at thermal radiating
4) Motor cooling fan, solving the problem of heat-protection
5) Double safety limit switches (photocell electrical limit switch/motor memory sensor)
6) Reversing on obstacle
7) Auto-closing
8) Support the INFRARER PHTOCELL for anti-bumping function (optional)
9) Support the external and internal VEHICLE LOOP DETECTOR (optional)
10) Traffic light interface
11) Wire control (switch signal)/ Remote control (418MHZ)
12) RS485 communication module (optional)
Specifications
Model | WST1151 |
Working Temperature | -40℃～+75℃ |
Voltage | 220V±10%, 110V±10%, 50/60HZ |
Rated power | 80W |
Relative humidity | ≤90% |
Remote control distance | ≥30m |
Net weight | 48kgs |
Speed | 1S,1.8S,3S, 6S |
Max boom length | 6 meters |
Motor Rotational speed | 1400rmp |
Protection Degree | IP44 |
Parking barrier gate packing list
| Packing list | |||
| Name | Specifications | Quantity | Remarks |
| Machine core | Good in working | 1 | Main part |
| Barrier arm | Straight, folding or fence arm | 1 | Optional |
| Boom press board | 1 | Fixing the boom | |
| Self-tapoing screw | ST4*16 | Fixing the boom | |
| Self-tapoing screw | st3*10 | 4 | Fixing the boom |
| Supporting pole | 1 | Fupporting the boom | |
| Expanion bolt | M16*150 | 4 | Fixing the case |
| Hexagonal Inner Screw | M8*35 | 4 | fixing the case |
| Clutch key | 1 | clutch device | |
| Case Key | 2 | for case and cover locking | |
| Balance spring | According to length of barrier arm | 1 | for sapre usage |
| Remote emitter | less than 30m is available | 1 | For remote control |
| Remote conrol handles | less than 30m is available | 2 | For remote control |
| Instruction | in English | 1 | For reference |
| RS485 interface | 1 | Optional | |
| Disc | 1 | Optional | |
| Communication Mould | 1 | Optional | |
| Cover head | 1 | 3 years without fading | |
| Expanion nut | M8 | 4 | Fixing the supporting pole |
