Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE, ISO, SGS
Model Number: WST-1151
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: negotiation
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 1000 Sets/Month
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |
Housing Dimension: |
320 * 280 * 935 Mm |
Housing Color: |
Blue, Yellow, Orange |
Housing Material: |
2mm Cold Roller Steel Plate |
Open / Close Time: |
1s, 1.8s, 3s, 6s |
Power Supply: |
AC 220V / 110V |
Max Boom Length: |
6m |

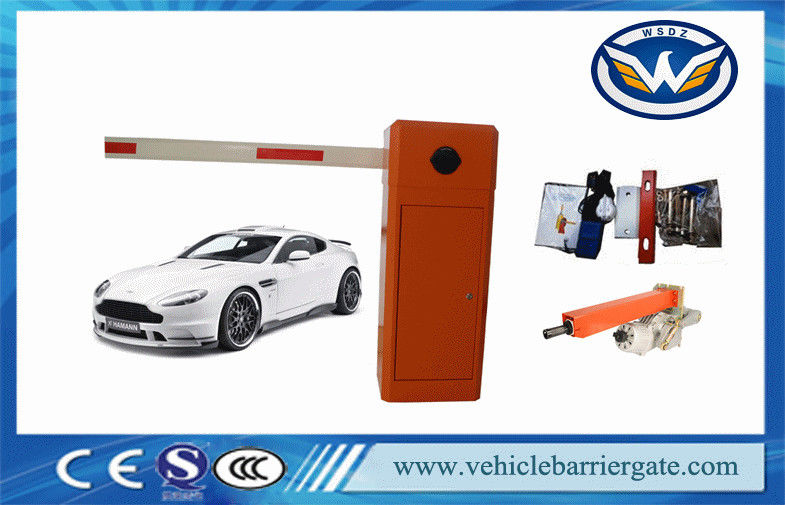

Automatic Temperature Manual Car Park Barriers , Boom Barrier Gate for Toll Collection
Quick Detail:
Name: Car park barriers
Speed:6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V
Model Selection and Differences
|
Model |
Boom Shape |
Max Boom Length |
Speed |
|
WST1151 |
Straight boom |
6m |
6 seconds |
|
WST1152 |
Straight boom |
4.5m |
3 seconds |
Functions & Features
1. Aluminum alloy motor, precision and good at thermal radiating
2. Intelligent overheating protection system, solving the problem of heat-protection
3. Double safety limit switches (photoelectric limit switch/mechanical limit switch)
4. Reversing on obstacle
5. Auto-closing
6. Special blancing structure design makes the barrier boom has the feature of slow-staring,
fast-running, slow stopping
Specifications
| Power supply | AC220V+-10% 50HZ/60HZ or AC110V+-10% 50HZ/60HZ |
| Net Weight | 46KG (exclude the boom) |
| External Dimensions | 340* 280*1000mm |
| Working Environment | -20 to +55 celsius degree |
| Working Distance | ≤50m |
| Protection Class | IP44 |
| Max. boom length | 6m |
| Package | one set in one carton |
With WONSUN, your job gets easier.
Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.
Communication with customers
1) Q: Connected power and press open/close button but car parking barrier gate no action?
|
A |
Reason |
Solution |
|
1 |
Fuse blown |
Check fuse and power in controller |
|
2 |
Battery of remote control powered off |
Change a new one |
|
3 |
External protection circuit break or at protecting status |
Open the barrier door and click OPEN/CLOSE button on control box |
|
4 |
Same frequency interference |
Check photocell and loop detector |
2) Q:Connected power and press open/close button, car parking barrier gate will move but even when it is at right position, the motor still running and not stop?
|
A |
Reason |
Solution |
|
1 |
Limit switch |
Adjust the horizontal/vertical limit switch to correct position |
|
2 |
Main controller failure |
Change a new one |
3) Q: Motor running but car parking barrier gate arm no action?
|
A |
Reason |
Solution |
|
1 |
Barrier arm at 45° position where is hard to move |
Unlock clutch and manually rotate arm to horizontal or vertical position then try again |
|
2 |
Tension of balancing spring not suitable |
Adjust spring exactly |
|
3 |
Low working voltage |
Check the voltage and power |
