Product Details
Place of Origin: China
Brand Name: WONSUN
Certification: CE
Model Number: DZ-2129 4th DC brushless motor barrier
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
Delivery Time: 3-7 working days after received your payment
Payment Terms: T/T,Western Union,Money Gram,Alibaba Trade Assurance,Paypal etc.,
Supply Ability: 5000 Sets/Month
Running Speed: |
1.2sec-4sec, 3sec-8sec |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit, DC Brushless Motor |
Driving Method: |
Dc Brushless Motor |
Brand Name:: |
-30℃~+70℃ |
Product Name: |
New 4rd DC Brushless Motor Speed Adjustable 1.2sec To 4sec With Three Fence Arm 3 Spring Design |
Max Length Of 3 Fence M: |
4M |
Running Speed: |
1.2sec-4sec, 3sec-8sec |
Advantages: |
Speed Adjustable, Bi-direction LEFT Or RIGHT, Hall Limit, DC Brushless Motor |
Driving Method: |
Dc Brushless Motor |
Brand Name:: |
-30℃~+70℃ |
Product Name: |
New 4rd DC Brushless Motor Speed Adjustable 1.2sec To 4sec With Three Fence Arm 3 Spring Design |
Max Length Of 3 Fence M: |
4M |

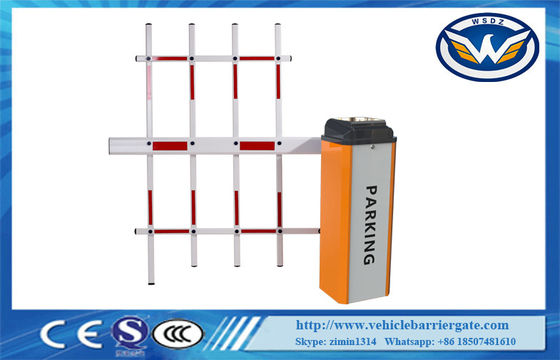

New 4rd DC brushless Motor Speed Adjustable 1.2sec to 4sec With Three Fence Arm 3 spring design
1. Product description
Thank you for purchasing the fourth generation brushless gate products of our company.
This product is a typical mechatronics product with the characteristics of small volume, low
noise, high efficiency, wide speed regulation and small steady-state speed error. The fourth
generation reducer, special for road brake, with optional multi speed ratio, stable operation,
customized gear, higher transmission efficiency and high stability, is more and more respected
by the market. It adopts the latest mold design technology, die casting manufacturing technology,
brushless control speed regulation technology, fast left and right interchangeability, non clutch
design, more reliable quality, more convenient use, and the movement adopts gear transmission
with fast speed and high speed The arc-shaped curved arm three-bar structure makes the landing
rod fast and stable. Convenient maintenance and long service life.
| Arm Type | Arm length(L) |
Open/ close speed |
Center height H |
| Straight arm | 6m≤L＜5m | 5S | H=0.83m,Height of arm center from ground |
| 5m≤L＜4.5m | 4S | ||
| 4.5m≤L＜3m | 3S | ||
| 3m≤L＜2.5m | 1.2S | ||
| 90°Folding arm | L≥5m | 5S | |
| 180°Folding arm | L≥5m | 5S | |
| Two fence arm | 4.5m≤L≤4m | 6S | H=0.9m,Height of arm center from ground |
| 4m≤L≤3m | 3S | ||
| Three fence arm | 4m≤L≤3.5m | 6S | H=1.5m,Height of arm center from ground |
2.1 The running speed can be adjusted from 3s to 8s
2.2 Can be quickly interchanged
2.3 Open the barrier gate by motor wheel when power off ,automatically reset after power on
2.4 Curved crank arm three- link movement structure, the operation is stable
2.5 Wireless remote control control open/close
2.6 Auto reverse function(force adjustable)
2.7 Infrared photocells connector is available
2.8 Loop detector connector is available.
2.9 Well-integrated with car parking system equipment,with wire control(must be switch signal)
2.10 Connector for traffic light(AC220V,power less than 40W)
2.11 Offering dry contact signal for car parking system(COM,NC,NO)
2.12 Auto-delay when closing(adjustable)
2.13 RS485 or CAN network communication interface(no need to install module)
2.14 Counting interface
2.15 24V backup battery interface(Can be charged by using solar energy)( optional)
| Working temperature(motor): -30℃~+70℃ |
| Rated voltage:DC24V |
| Running speed:1.2s~4s/ 3s~8s |
| Rated current:8.58A |
| Rated power:160W |
| No-load speed:1850rpm |
| Rated speed:1400rpm |
| Output Power:56.8N.m |
| Output Power:56.8N.m |
| Remote control distance:≤100M(in the open place) |
| IP Degree:IP44 |
| Max length of arm:6M |
5. Spring selection table
| Arm type | Arm length | Spring Selection | |
| Spring type | Specification(diameter*length) | ||
| Straight arm | 6m | Tension spring | 4.5+4.5+4.5 |
| 5m | 4.5+4.5+4.5 | ||
| 4.5m | 4.5+4.5 | ||
| 4m | 4.5+4.5 | ||
| 3.5m | 4.5 | ||
| 3m | 4.5 | ||
| Two fence arm | 4.5m | 4.5+4.5+5.5 | |
| 4m | 4.5+4.5+4.5 | ||
| 3.5m | 4.5+4.5+4.5 | ||
| 3m | 4.5+4.5 | ||
| 90 degree arm | 5m | 4.5+4.5+5.5 | |
| 4.5m | 4.5+4.5+4.5 | ||
| 4m | 4.5+4.5+4.5 | ||
| 3.5m | 4.5+4.5 | ||
| 3m | 4.5+4.5 | ||
| Three fence arm | 4.5m | 5.5+5.5+5.5 | |
| 4m | 5.5+5.5+5.5 | ||
| 3.5m | 4.5+4.5+5.5 | ||
| 3m | 4.5+4.5+4.5 | ||
FAQ
1-Can you install using loop detector or pressure sensor on it?
Yes,the stanadard advertising barrier gate have loop detector and pressure sensor.
2-How about the guarantee and after sale service?
We have 1 year quality guarantee, We own well tranied and passional sales & aftersale services who can speak fluent English language.
3-How long is the leading time?
For standard item
10-50 sets:5 working days
50-100 sets:7-10 working days
200-500 sets:10-15 working days
For special item, or need custom design package or logo, need 3-10 working days longer.
4-How about the payment terms?
TT,western union,our company already joined the trade assurance,it will highly protect your order security.
5-How do you send the products to me,how long?
As our products are big volume,and heavy duty, we suggest you to ship by sea. You can also choose your own shipping
forwarder. it normally takes 7-60 days depend on different countries.
6-What is the package of the barrier gate?
Inside with a carton package.Then outside,there are wooden crate package.
